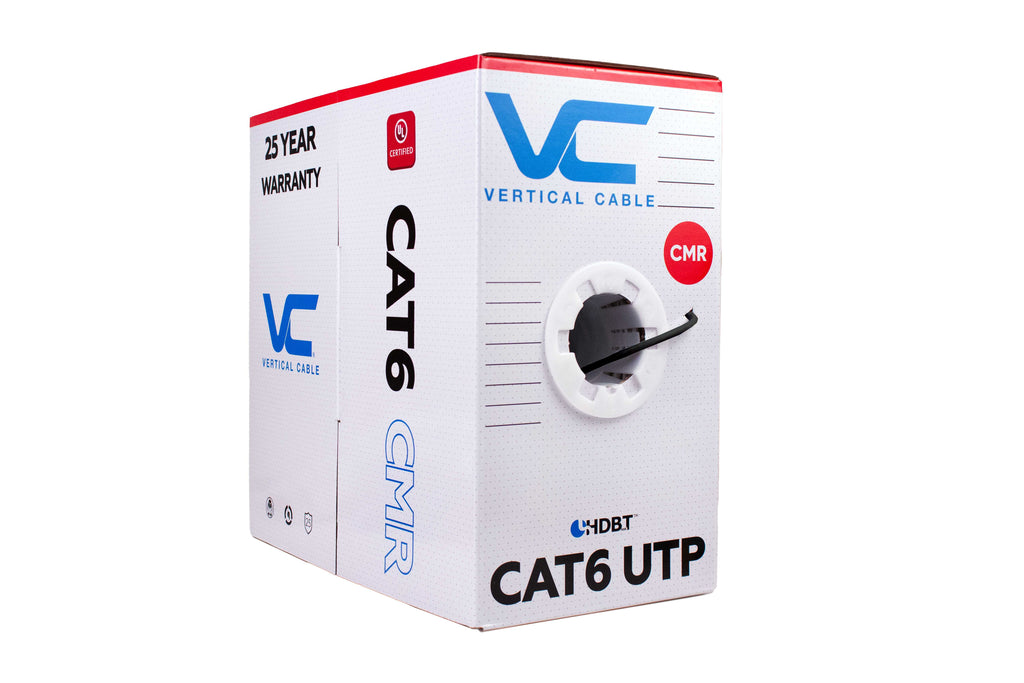

Vertical Cable 060 Series UL Listed CAT6 UTP CMR – 1000ft, 23AWG, 550MHz
Vertical Cable’s 060 Series UL Listed CAT6 UTP CMR riser cable is a high‑performance 550MHz solution built with 23 AWG solid bare copper conductors for dependable high‑speed data, voice, and video. Ideal for commercial and residential structured cabling, this 1000ft pull box is designed for clean riser and in‑wall installations where code‑compliant CMR rating is required.
With unshielded twisted‑pair (UTP) construction, a durable PVC riser jacket, and excellent attenuation, crosstalk, and return‑loss performance, this cable meets or exceeds ANSI/TIA‑568.2‑D specifications while supporting modern PoE and Gigabit Ethernet applications.
Key Features
- Category 6, 4‑pair unshielded twisted‑pair (UTP) riser cable.
- 23 AWG solid bare copper conductors for low resistance and strong signal integrity.
- High‑grade 550MHz bandwidth for Fast Ethernet and Gigabit Ethernet networks.
- UL Listed CMR (riser) PVC jacket for vertical risers and in‑wall runs.
- Meets or exceeds ANSI/TIA‑568.2‑D transmission performance standards.
- Supports PoE/PoE+/PoE++ (Type 3) for IP cameras, access points, and VoIP phones.
- Sequential footage markings on the jacket to speed up pulls and reduce waste.
- Vivid, easy‑to‑identify color‑coded conductor insulation and jacket.
- RoHS compliant and UL/c(UL) marked for North American installations.
Installer Benefits
- Fast terminations with clearly striped, color‑coded pairs.
- Smoother pulls from a 1000ft pull box designed to minimize kinks and snags.
- Riser‑rated jacket simplifies code compliance for floor‑to‑floor runs.
- Solid‑copper construction ensures long‑term reliability and full PoE power delivery.
Typical Applications
- Structured cabling for 10/100/1000BASE‑T Ethernet in offices, schools, and MDU/MDU‑style buildings.
- Riser and in‑wall home‑run cabling between floors, telecom rooms, and IDFs.
- IP security cameras, NVRs, access control panels, and building automation over PoE.
- Wireless access points, VoIP phones, and other networked devices requiring stable bandwidth.
Technical Specifications
| Series / Brand | Vertical Cable 060 Series – UL Listed CAT6 CMR |
|---|---|
| Cable Type | CAT6, 4‑pair UTP, high‑grade 550MHz riser‑rated bulk cable |
| Conductor | 23 AWG solid bare copper, 8 conductors (4 pairs) |
| Length | 1000 ft (305 m) pull box with sequential footage markers |
| Jacket Rating | CMR (riser) PVC jacket, UL Listed, FT4 |
| Outer Diameter | Approx. 0.24 in (6.20 mm) |
| Temperature Rating | Up to 70°C operating temperature |
| Voltage Rating | 300 V max. |
| NVP | Nominal Velocity of Propagation: 69% |
| Impedance | 100 Ω nominal (bandwidth‑optimized) |
| Max. DC Resistance | ≤ 95 Ω/km at 20°C, resistance unbalance ≤ 5% |
| Pair Colors | Blue/White‑Blue, Orange/White‑Orange, Green/White‑Green, Brown/White‑Brown |
| Compliance | ANSI/TIA‑568.2‑D, UL Listed CMR, RoHS compliant |
| Jacket Print (Example) | E502490 (UL) c(UL) CMR 75C UTP 4PR 23AWG FT4 550MHz CAT6 ANSI/TIA‑568.2‑D RoHS XXXXFT |
Spec Sheet & Downloads
Need full electrical and mechanical test data? Download the official manufacturer spec sheet below.
View / Download: 060 Series UL Listed CAT6 CMR 550MHz – Full Specification PDF
