Description

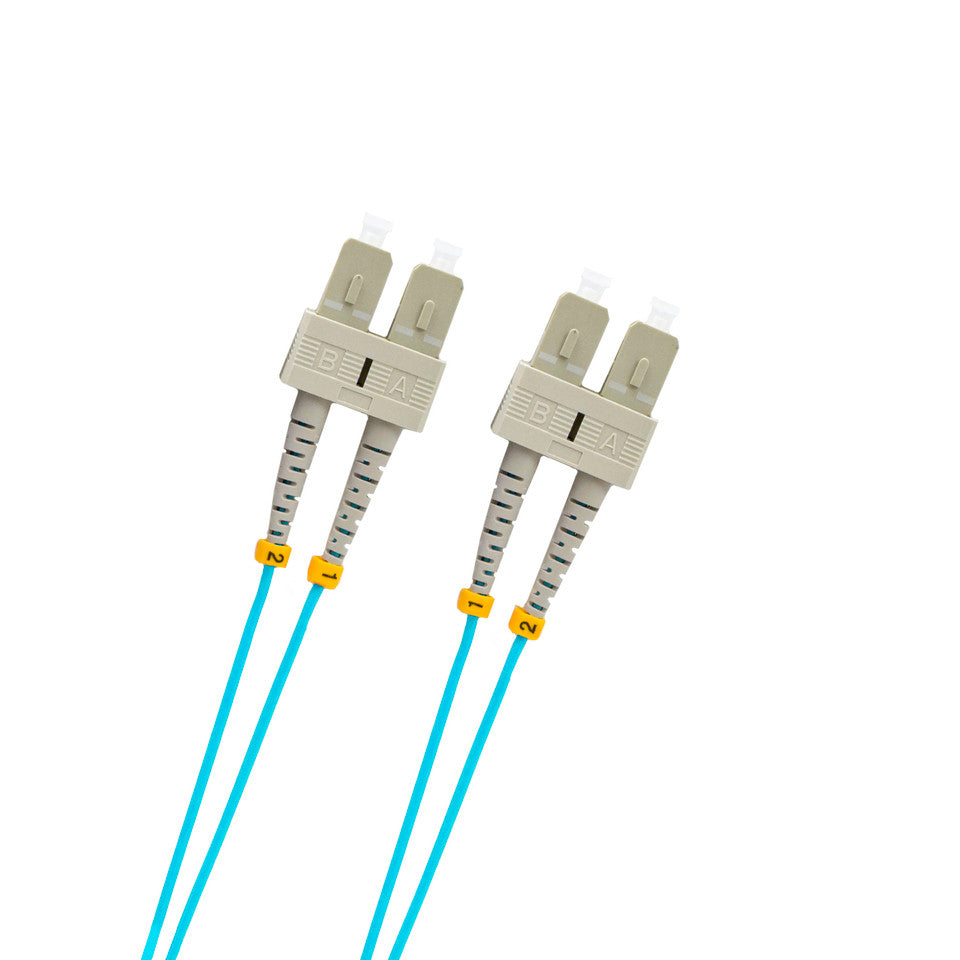

What is the 1 Meter SC/SC 50/125 Multimode OM3 Duplex Fiber Patch Cable?
Our 1 Meter SC/SC Multi-Mode OM3 Fiber optic patch cords provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk. These fiber patch cords support network applications in main, horizontal, and equipment distribution areas and are available in riser (OFNR) rated jacket materials to comply with local cabling ordinances. RoHS compliant and UL listed.
The Weltron SC/SC 50/125 Multimode OM3 Duplex Fiber Patch Cable delivers high-speed, reliable data transmission for medium to long-distance networking applications. Designed for modern data centers, enterprise networks, and high-bandwidth applications, this cable supports up to 10Gbps over extended distances with superior performance. Its SC connectors ensure secure and stable connections, while the OM3 multimode fiber optimizes signal clarity and reduces attenuation.
- OM3 Multimode Fiber: Engineered for high-bandwidth applications, supporting up to 10Gbps over distances up to 300 meters and 40Gbps/100Gbps over shorter spans.
- SC to SC Connectors: Equipped with durable, easy-to-use push-pull connectors, ensuring secure connections for critical applications.
- Duplex Design: Allows for simultaneous two-way communication, enhancing network performance and efficiency.
- Aqua Jacket: Standard for OM3 multimode fiber, providing easy identification and robust protection.
- High-Quality Manufacturing: Ensures minimal insertion loss and superior return loss for consistent signal integrity.

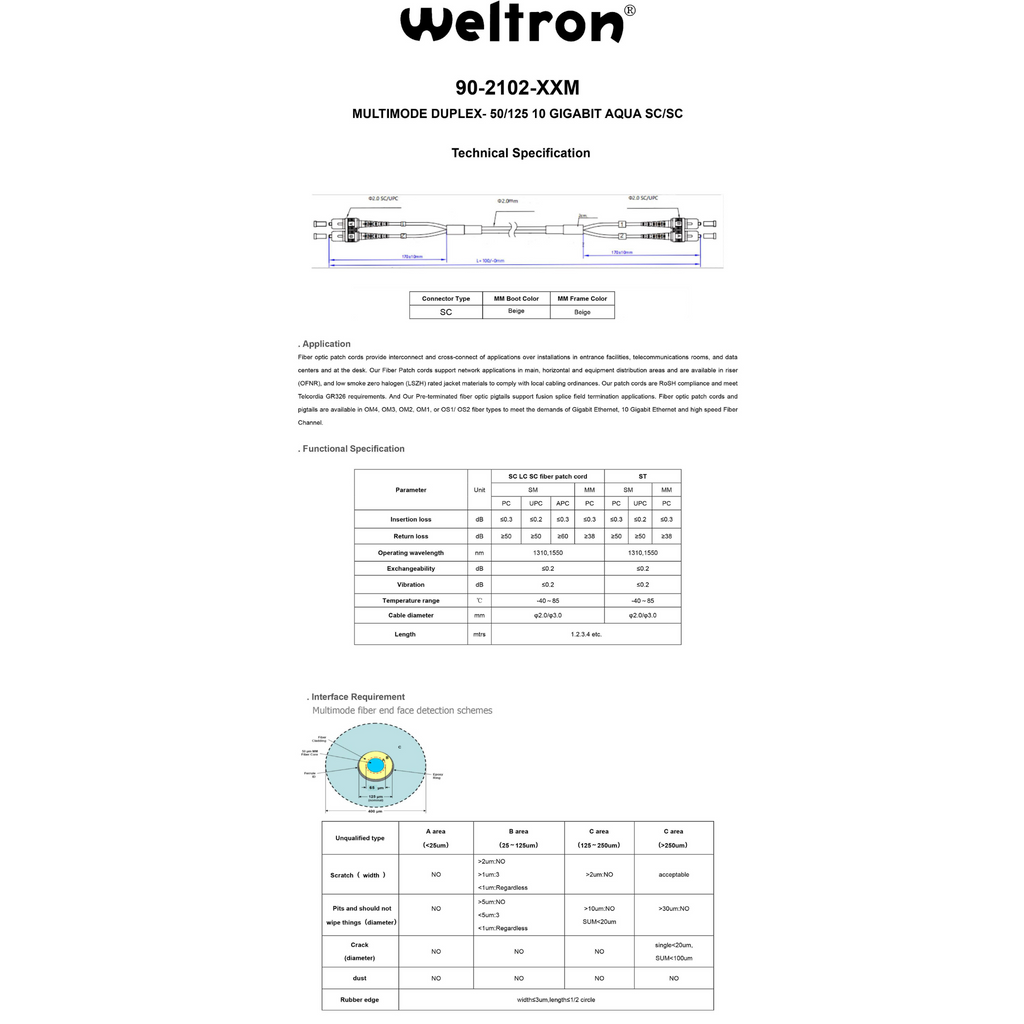

Specifications:
- Type: SC/SC Duplex Fiber Patch Cable
- Fiber Type: Multimode OM3 (50/125 microns)
- Connectors: SC to SC
- Jacket Material: Aqua PVC
- Length: Varies (Specify during purchase)
- Applications: Data centers, enterprise networks, high-bandwidth systems
FAQs
Q: What is the maximum supported distance for 10Gbps data rates?
A: The cable supports 10Gbps transmissions up to 300 meters.
Q: Are SC connectors compatible with other connector types?
A: SC connectors require adapters to interface with different connector types, such as LC or ST.
Q: Can this cable be used for outdoor installations?
A: This cable is designed for indoor use. For outdoor applications, consider cables with additional weatherproofing.
Q: Is this cable suitable for 40Gbps or 100Gbps applications?
A: Yes, it supports 40Gbps and 100Gbps data rates over shorter distances as specified for OM3 fiber.
