Description

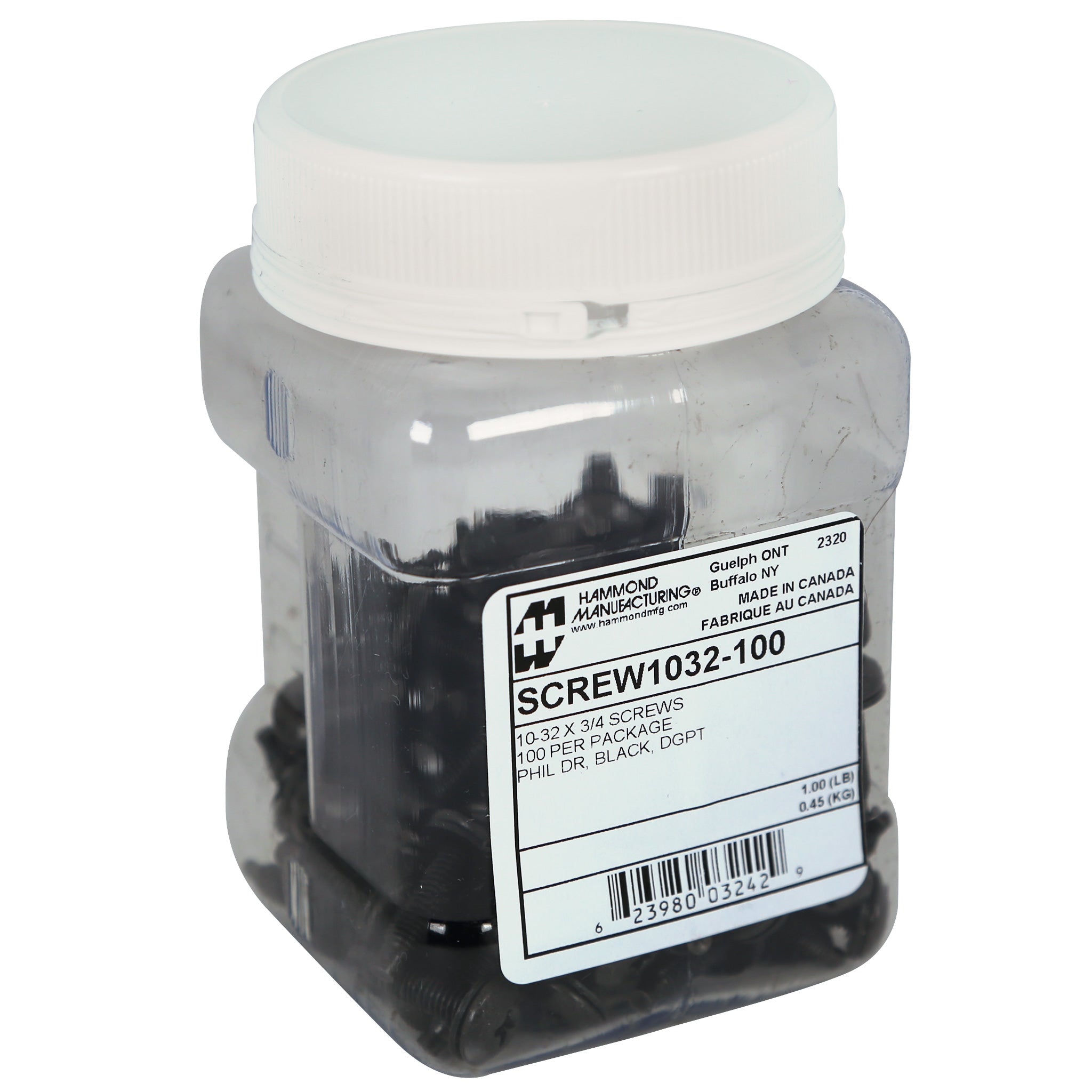

Don't get screwed! Our screw pack features a convenient jar, starting point, and factory-installed washer. If you've encountered complex part numbers, this product is for you. The SCREW series offers packs of rack mounting screws designed for easy installation. Factory-hardened, these screws are strip-resistant and available in various convenient quantities.
Features
- Available in 10-32, 12-24, and M6 threading.
- Heat-treated to resist stripping.
- Self-guiding dog/pilot/starter point.
- Includes factory-installed nylon washer.
- Black finish.
Specifications
- Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with included dog/pilot/starter point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
- Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
Gallery
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| SCREW1224 |
| SCREWM6 |
| SCREW1032 |
| Part Attributes | |
|---|---|
| Part Number | SCREW1032-100 |
| Series | Rack Screws with Pilot Point (SCREW Series) |
| Short Description | 100-PKG 10-32 QUADREX RK SCREW |
| Shipping Weight | 1 lbs (0.45 kg) |
| UNSPSC | 31161504 |
| UPC | 623980032429 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
