Description

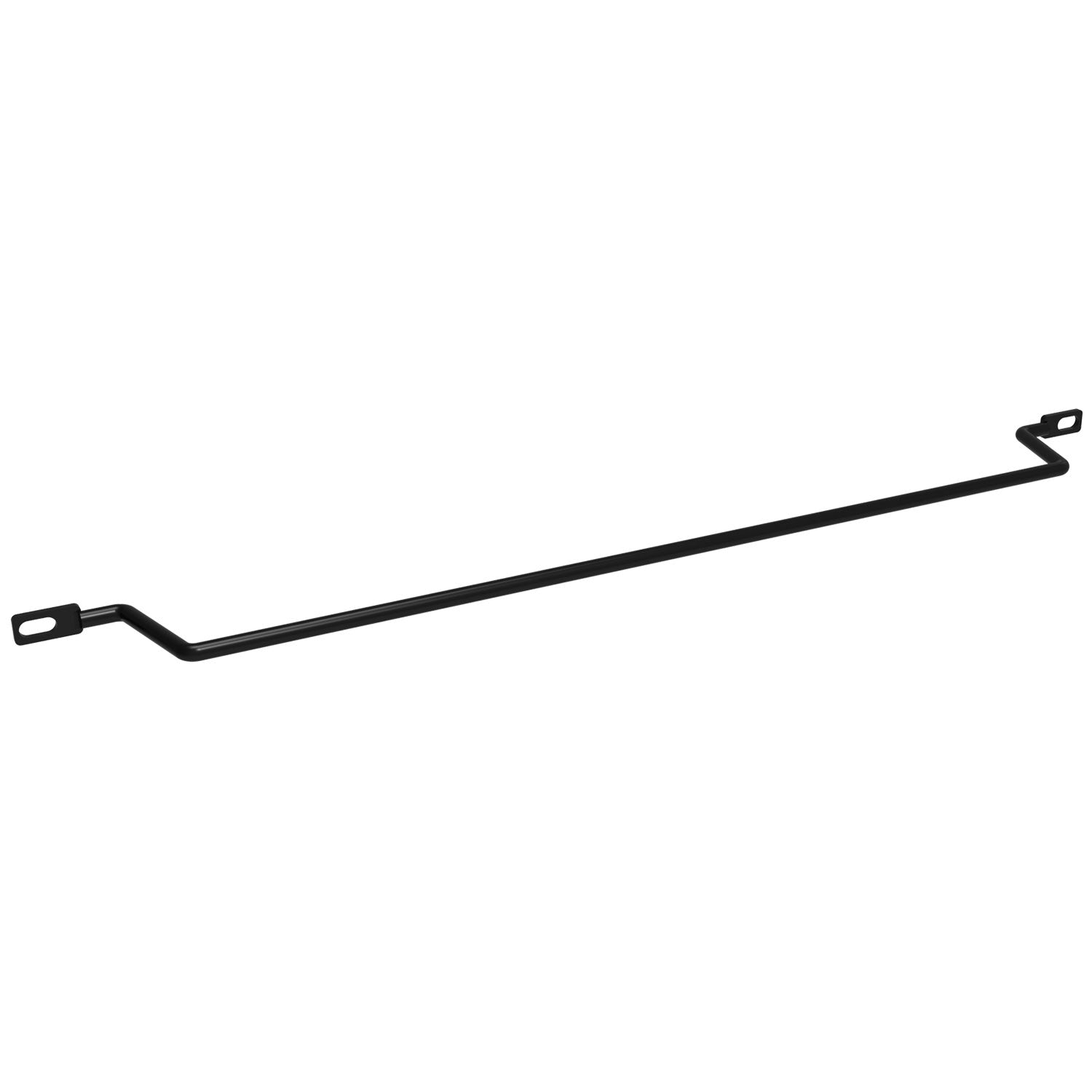

The Cable Lacing Bar (CLB) reduces strain on cables connected to a patch panel or device. Available in three depths the CLB is sold in packs of ten (10) to reduce packaging.
Features:
- Constructed of 0.25" steel rod.
- Designed to reduce cable strain.
- Available with no offset, 2" or 4" offset.
- Designed to fit standard EIA 19” rails.
- Sold in packages of ten (10) pieces.
- Finished in smooth RAL9005 black powder paint finish.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America.
This product is available for private label. Click here to learn more.
Gallery
Accessories
-
Hardware for Rack Mounting Solutions
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Overall Dimensions | Rod | Offset | ||
|---|---|---|---|---|---|
| Height | Width | Depth | Thickness | Angle | |
| CLB190BK | 0.44 | 19.00 | 0.00 | 0.25 | n/a |
| CLB192BK | 0.44 | 19.00 | 2.00 | 0.25 | 75 Degrees |
| CLB194BK | 0.44 | 19.00 | 4.00 | 0.25 | 75 Degrees |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | CLB192BK |
| Series | Cable Strain Relief Bar (CLB Series) |
| Short Description | 10PK 2IN OFFSET CABLE LACE BAR |
| Shipping Weight | 4 lbs (1.81 kg) |
| UNSPSC | 43223305 |
| UPC | 623980932590 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
