Description
Features
- Constructed in 12-gauge steel.
- Sold in pairs.
- EIA/TIA compliant drilled and tapped 10-32 holes.
- Rack Mounting hardware is sold separately.
- Cabinet mounting hardware is not included.
- Rails come included with a rack unit indicator.
- Rails can be used for 19", 23" and 24" rack mounting applications.
- Also compatible with RB-2PW wall rack and 24" wide HWC wall cabinet.
- Side of rail folded for rear support or accessory mounting.
- Finished in RAL9005 black powder paint finish.
- TAA-compliant for GSA Schedule purchases.
- RoHS and REACH compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Accessories
-
10-32 Mounting Hardware
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Mounting Dimensions | |||
|---|---|---|---|---|
| Rack Units | Height | Width | Depth | |
| URR2U | 2U | 3.50 | 0.62 | 1.50 |
| URR3U | 3U | 5.25 | 0.62 | 1.50 |
| URR4U | 4U | 7.00 | 0.62 | 1.50 |
| URR6U | 6U | 10.50 | 0.62 | 1.50 |
| URR8U | 8U | 14.00 | 0.62 | 1.50 |
| URR10U | 10U | 17.50 | 0.62 | 1.50 |
| URR12U | 12U | 21.00 | 0.62 | 1.50 |
| URR14U | 14U | 24.50 | 0.62 | 1.50 |
| URR16U | 16U | 28.00 | 0.62 | 1.50 |
| URR18U | 18U | 31.50 | 0.62 | 1.50 |
| URR21U | 21U | 36.75 | 0.62 | 1.50 |
| URR24U | 24U | 42.00 | 0.62 | 1.50 |
| URR27U | 27U | 47.25 | 0.62 | 1.50 |
| URR36U | 36U | 63.00 | 0.62 | 1.50 |
| URR45U | 45U | 78.75 | 0.62 | 1.50 |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL87228 - BUL -UNIVERSAL RACK RAILS |
| Part Attributes | |
|---|---|
| Part Number | URR10U |
| Series | Mounting Rack Rails (URR Series) |

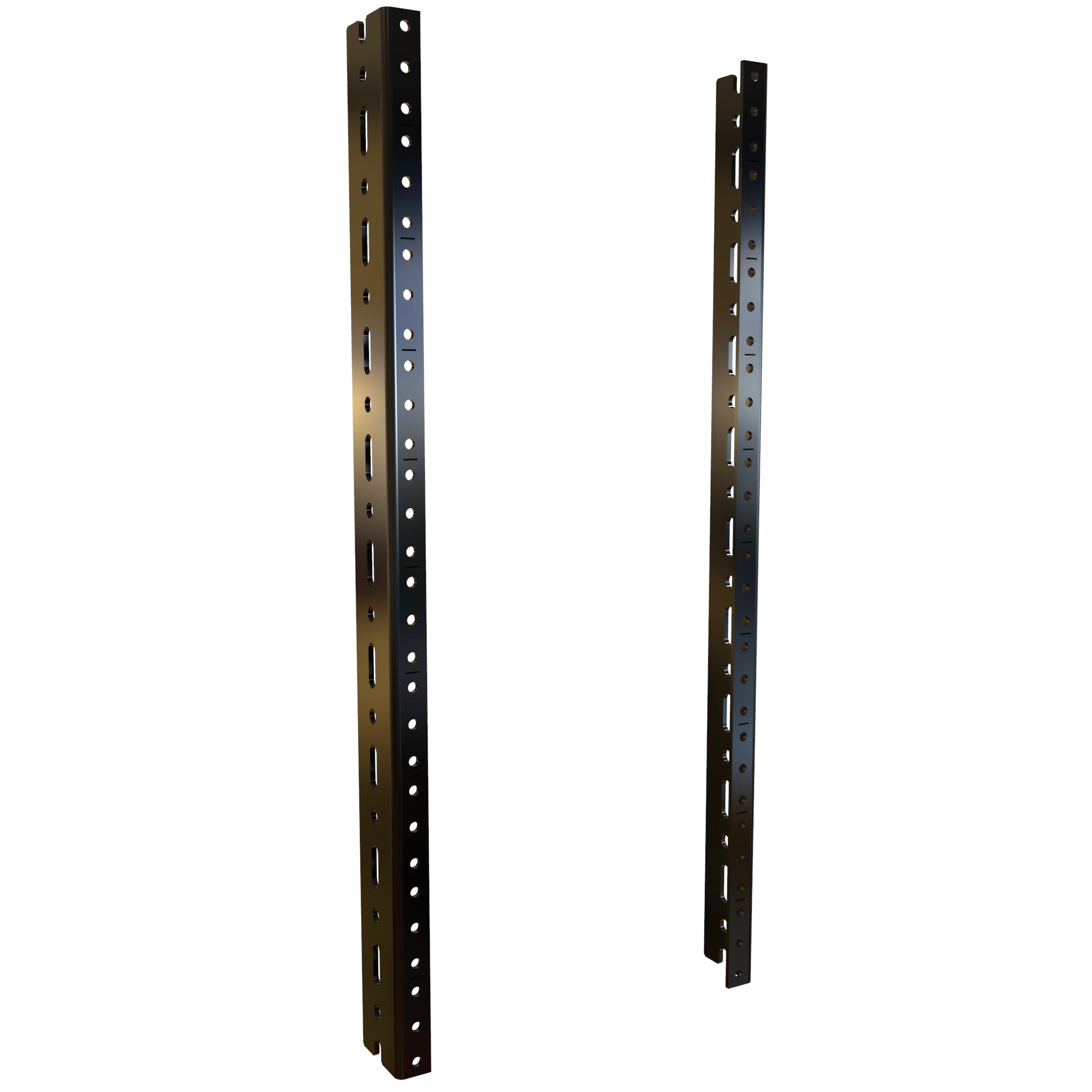

| Short Description | 10U 10-32 UNIVERSAL RACK RAIL |
| Size H x W x D |
17.5 in x 19 in x 1.5 in (445 mm x 483 mm x 38 mm) |
| Shipping Weight | 1.75 lbs (0.79 kg) |
| UNSPSC | 43201618 |
| UPC | 623980930022 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
