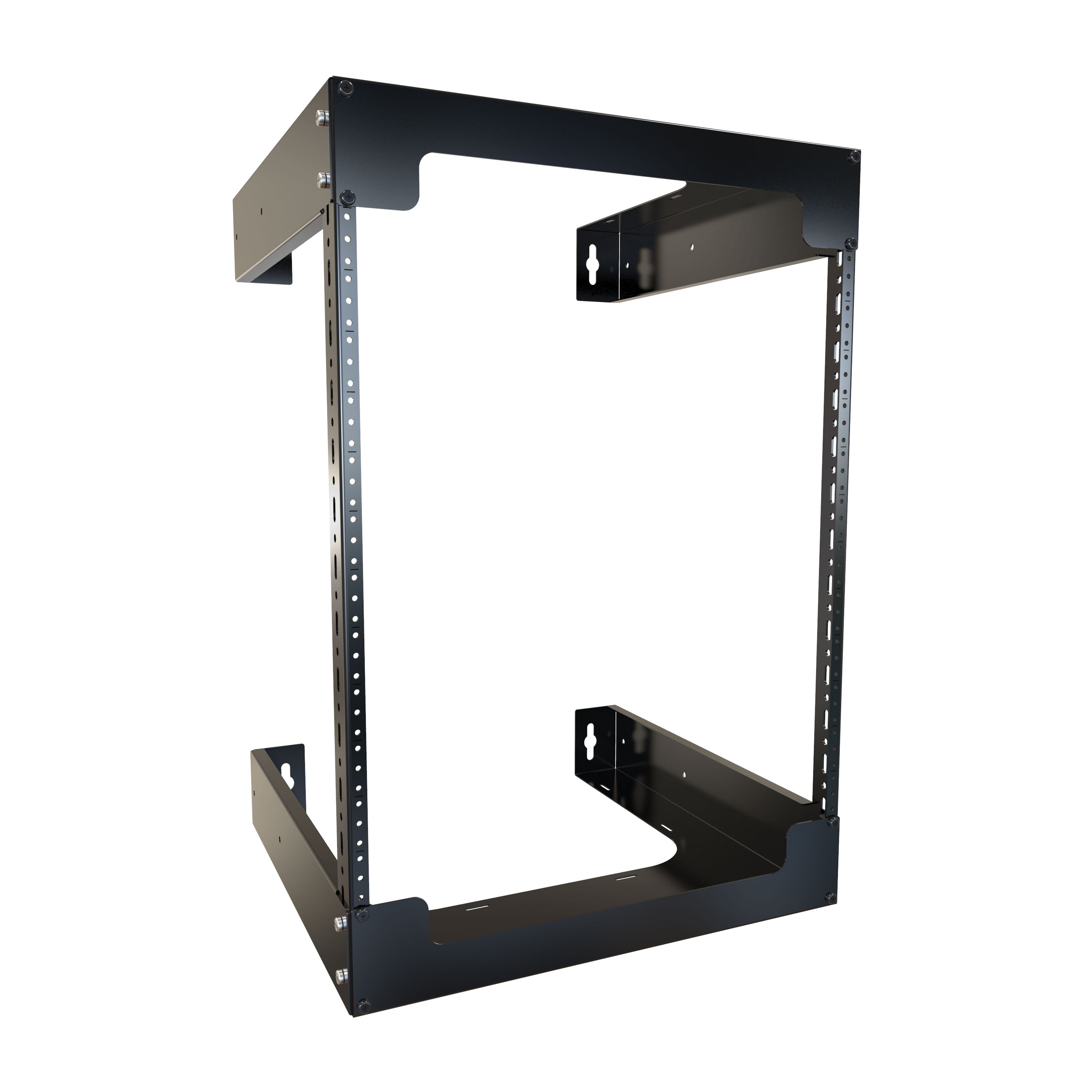

Hammond 12U 18D FIXED WALL RACK

Features

• The rails are constructed in 12-gauge steel while the while brackets are constructed in 14-gauge steel.
• One (1) pair of EIA-310-E compliant 10-32 threaded rails spaced at 19” mounting and includes rack unit indicators.
  • Includes starter pack of SCREW1032-25 screws.
• Provides 18 inches of usable mounting depth.
  • An optional RB-2PW-EXT extender can be used to add up to 7" of usable mounting depth while maintaining the load capacity.
• Open-rear design can be installed over existing equipment.
• Self-squaring design ships un-assembled (some assembly required).
• Up to 200 lbs (90.72 kg) static load rating.
• Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Need a different height? Purchase our 8U version and the desired height of our URR Rack Rails (Add 4U to the desired height). Note we only approve the weight capacity up to 20U.

This product is not designed nor intended to be used for non-wall mounted applications.
