Description
Features
- Available in 2U, 4U, 6U, 8U and 12U mounting heights.
- Hinged for easy rear access.
- Adjusts in depth from 12" to 18" with ease so there is no need to disassemble the whole rack to adjust the depth.
- Rear cable access with multiple tie points for cable management.
- Self-squaring design ships un-assembled (some assembly required).
Specifications
- Constructed in 14-gauge steel.
- Tapped 10-32 19" mounting rails are constructed in 14-gauge steel and include rack unit indicators.
- SCREW1032-25, 25-pack of 10-32 mounting hardware included.
- 100 lbs (45 kg) static load rating.
- Swing weight is rated for 1.5 lbs (0.68 kg) per rack unit, evenly distributed.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Gallery
Accessories
-
Cable Managers
-
Rack Panels
-
Universal Rack Shelf
-
Keyboard & Equipment Rack Shelf
-
Hook and Loop Convenience Roll
-
10-32 Mounting Hardware
-
Hardware for Rack Mounting Solutions
-
We Manufacture PDUs and Outlet Strips
-
Ground Stud Kit
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10385 - APB KNOCK DOWN WALL |
| Part Attributes | |
|---|---|
| Part Number | APB19021BK1 |
| Series | Adjustable Depth Hinged Wall Rack (APB Series) |

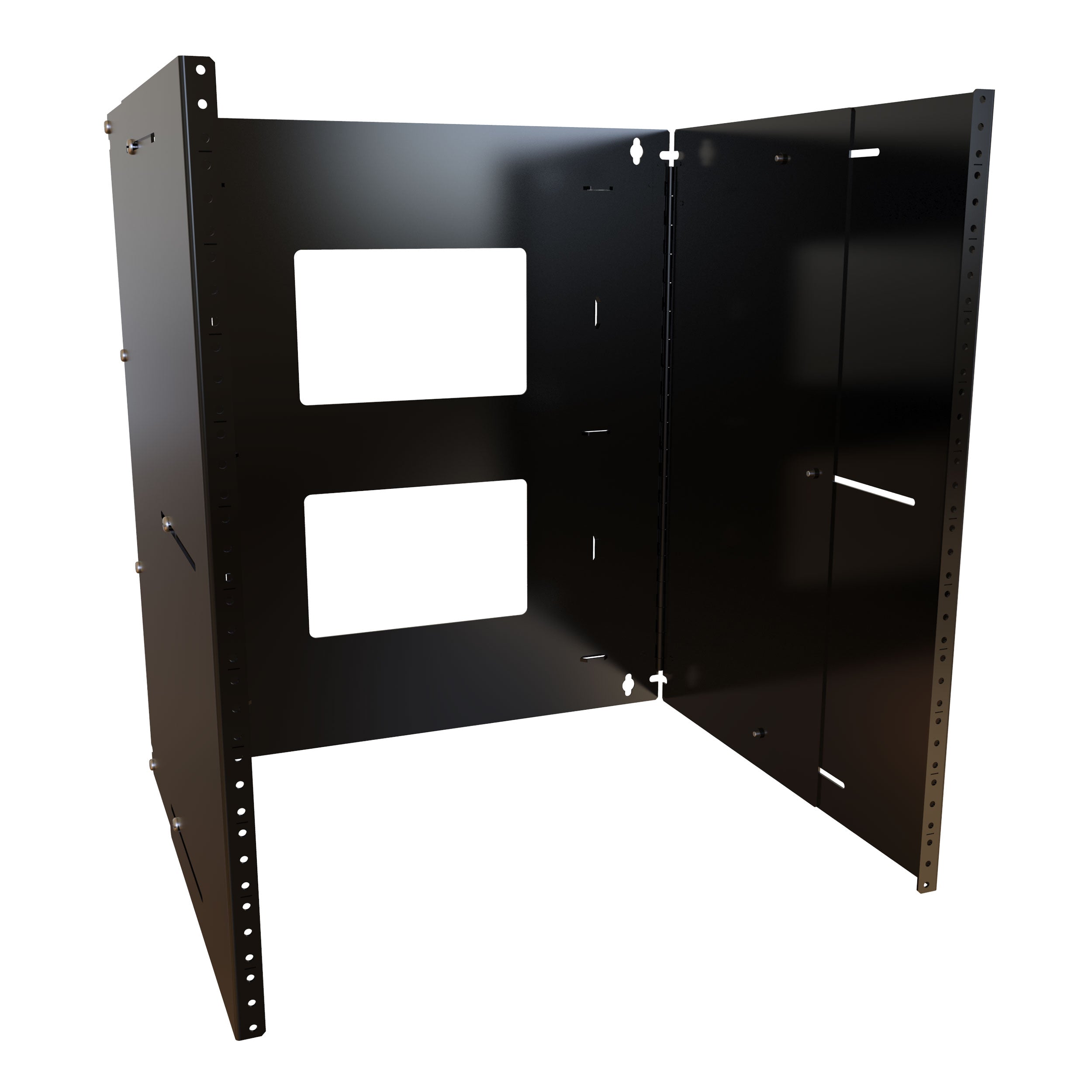

| Short Description | 12U ADJUSTABLE DEPTH WALL RACK |
| Long Description | Adjustable Wall Bracket - 12U w/ depth 12" - 18" |
| Size H x W x D |
20.98 in x 19.25 in x 18 in (533 mm x 489 mm x 457 mm) |
| Shipping Weight | 30 lbs (13.61 kg) |
| UNSPSC | 43223308 |
| UPC | 623980042701 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 12 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
