Description
Features
- Constructed in light-duty 16-gauge steel.
- Includes two (2) pairs of EIA compliant 19-inch square hole mounting rails.
- Starter pack of (25) M6 screws, cage nuts and washers included.
- For 10-32 hardware, please see our CAGKIT Series.
- Rails are adjustable.
- Includes one (1) locking tempered glass reversible front door.
- Includes one (1) pair of locking removable side panels.
- The front and side of the frame include venting for airflow.
- Rear cable access.
- Provision for optional fans on the top panel.
- Ships unassembled - some assembly is required.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- Finished in black powder paint.
- 130 lbs (59 kg) of equipment load capacity.
- RoHS Compliant.
Part of the Rack Basics® line of value rack solutions.

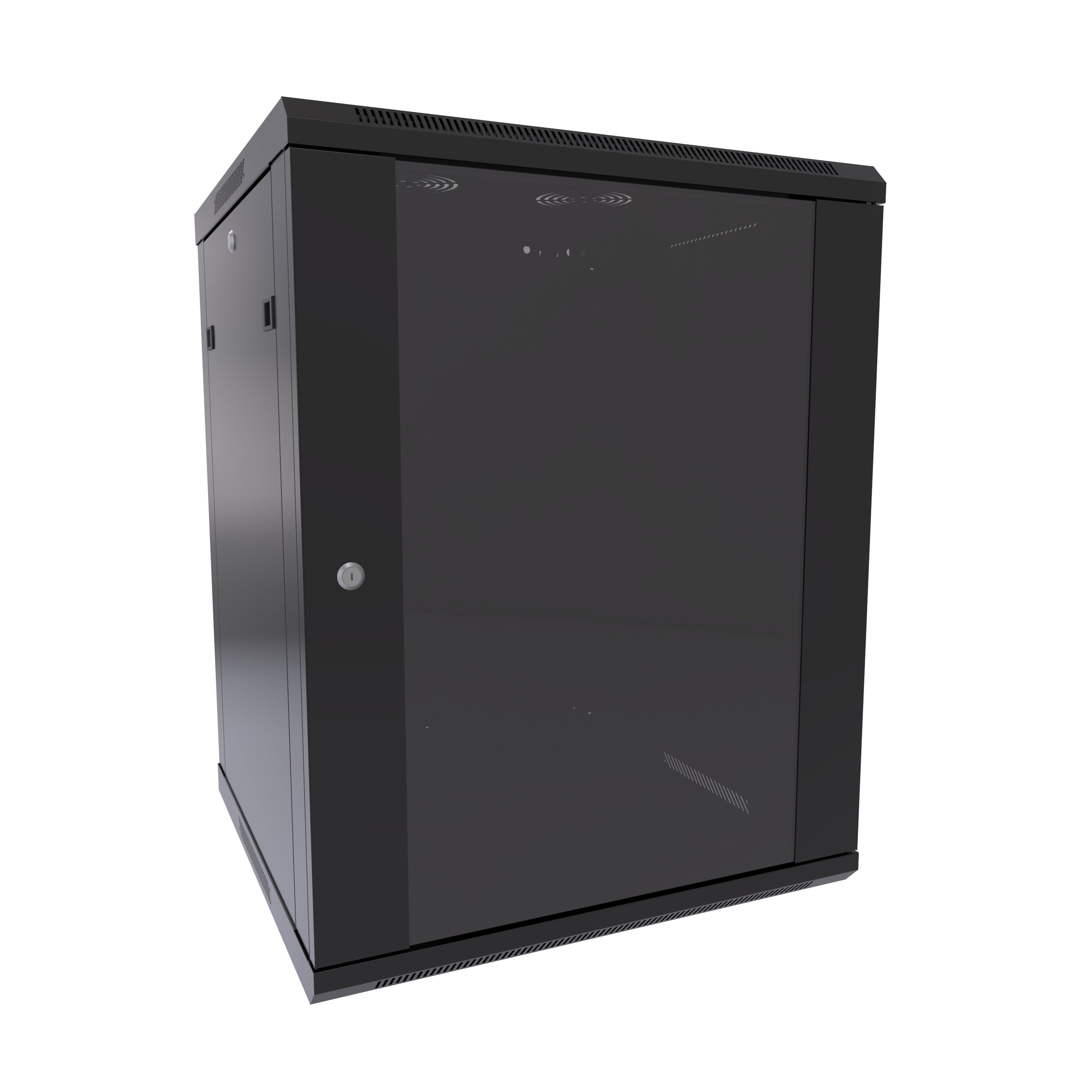

Discover the versatility of the RB-FW Series Fixed Wall Mount Cabinet from Hammond Manufacturing, a perfect solution for secure equipment storage in compact spaces. Constructed from durable 16-gauge steel, this cabinet promises strength and longevity with a sleek black powder coat finish that fits elegantly into any environment. The cabinet is available in multiple sizes, including 6U, 9U, and 15U, to accommodate a variety of equipment requirements. Featuring adjustable EIA compliant square hole mounting rails, it offers easy access and organization for your gear. The cabinet also includes a locking tempered glass front door and locking removable side panels, providing both security and functionality. Designed with optimal airflow in mind, it features venting on both the front and sides, with provisions for optional fans for enhanced cooling. Ideal for commercial and office applications alike, the RB-FW Series is the perfect blend of utility and style for all your rack-mount needs.
Accessories
-
Horizontal Ring Cable Manager
-
Horizontal Lacing Strip
-
Cable Strain Relief Bar
-
Universal Rack Shelf
-
Heavy Duty Cooling Fan Kits
-
Hardware for Rack Mounting Solutions
-
We Manufacture PDUs and Outlet Strips
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| RB-FW Instructions |
| RB-FW15 STENCIL.vss |
| Part Attributes | |
|---|---|
| Part Number | RB-FW15 |
| Series | Fixed Wall Mount Cabinet (RB-FW Series) |
| Short Description | 15U WALL MOUNT CABINET |
| Long Description | 15U Rack Basics Fixed Wall Mount Cabinet |
| Size H x W x D |
30.31 in x 23.63 in x 23.63 in (770 mm x 600 mm x 600 mm) |
| Shipping Weight | 70.55 lbs (32.00 kg) |
| UNSPSC | 43223306 |
| UPC | 623980046334 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 15 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with M5 Cage Nuts |
