Description

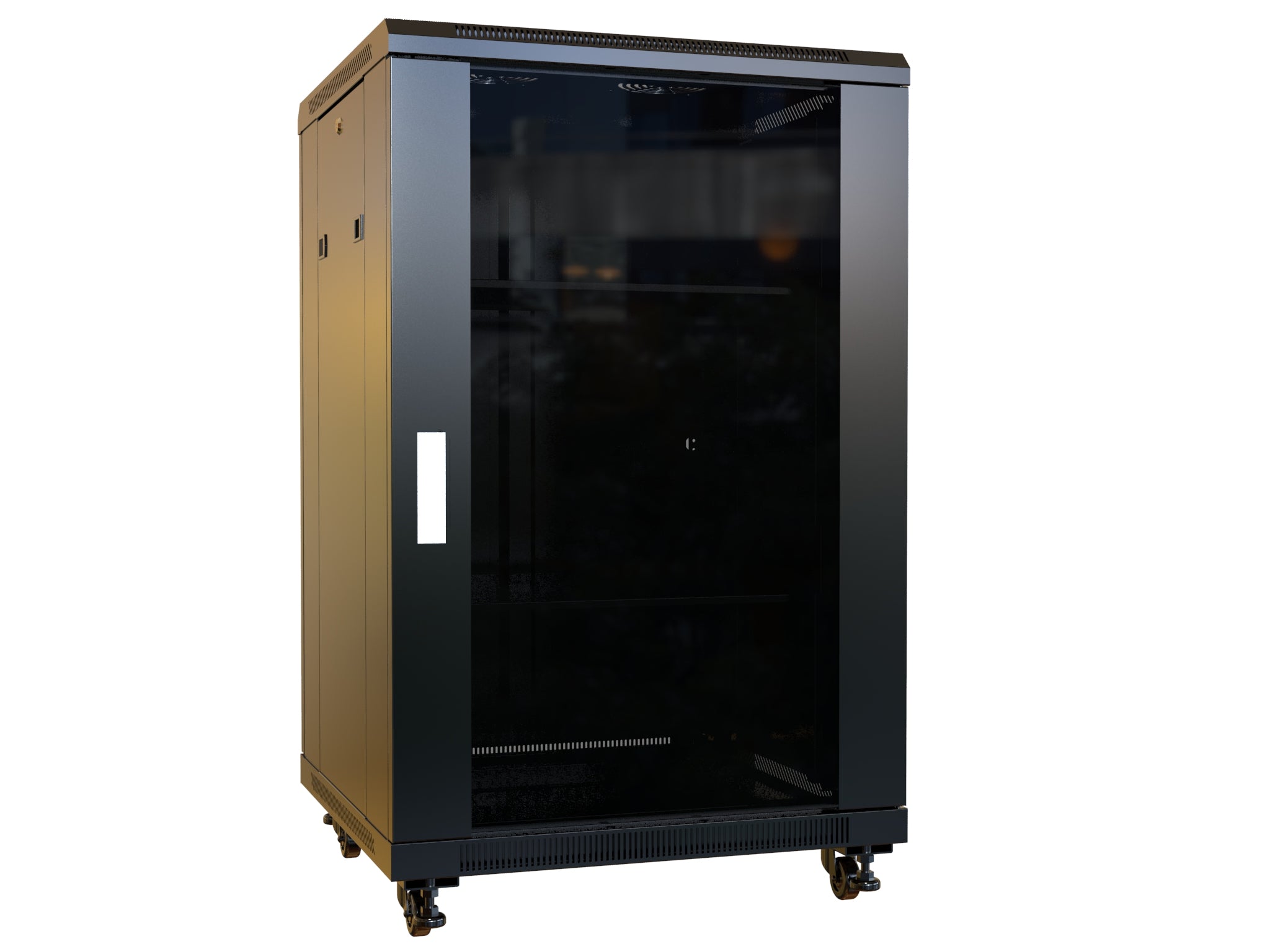

The RB-AV Series is a cost-effective rack cabinet that is ideal for A/V and Security applications. It features a welded steel frame, locking doors, locking removable panels, and pre-installed shelves. With adjustable leveling feet and casters, it supports both fixed and mobile installations. The cabinet includes ventilation options and the ability to add fans for cooling.
Features

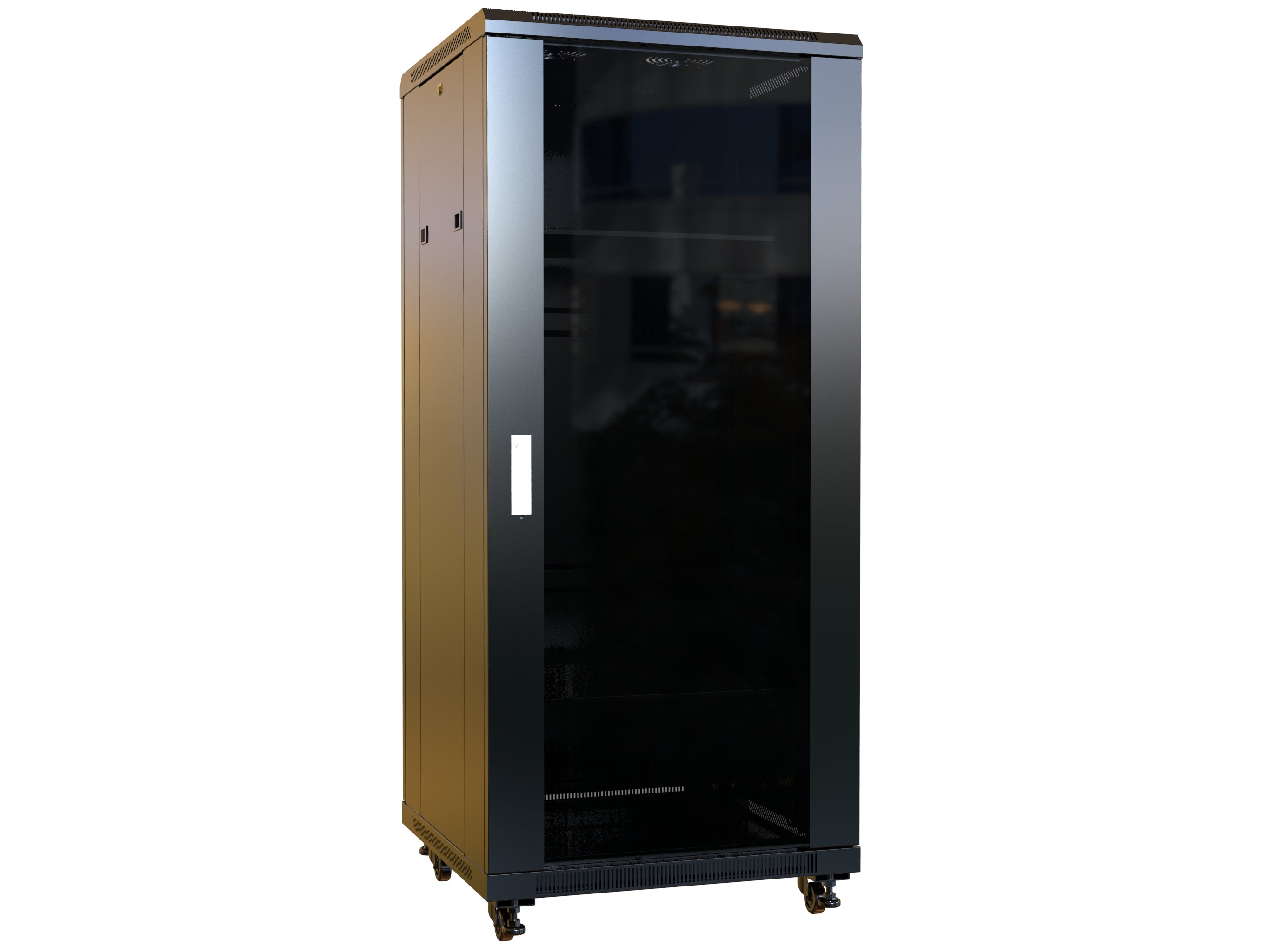

- Available in 18U, 27U, and 42U mounting heights.
- Available in 23.62" overall width and depth.
- Passive cooling vents are located on the top, bottom and sides.
- Includes top vents for up to two (2) optional fans on the top panel.
- Ships fully assembled and ready for installation on-site.
- Doors can be flipped to hinge from the opposite side.
Specifications
- Constructed in 16-gauge steel.
- Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
- Rails easily adjust in-depth in 1/4" increments.
- 950 lbs (431 kg)
- Grounding studs bonded to frame, side panels and doors.
- Finished in smooth matte black powder paint.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- RoHS Compliant.
Included Components

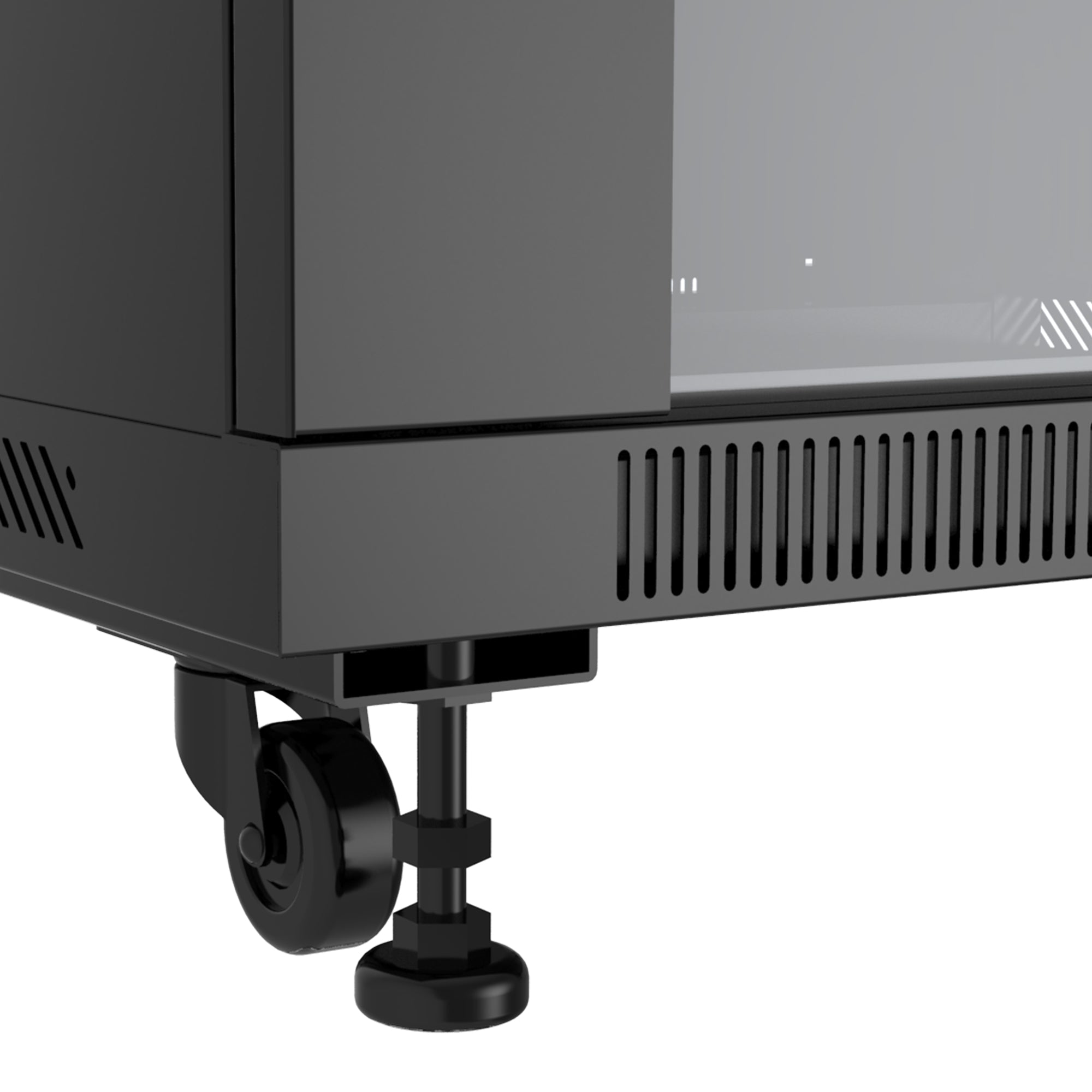

- Steel frame with factory-installed leveling feet recessed casters and grounding studs. Casters and leveling feet are removable.
- Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
- Starter pack of (50) 10-32 screws included.
- One (1) lightly smoked tempered glass removable front door with a quarter-turn lock.
- One (1) solid removable steel rear door with a quarter-turn lock.
-

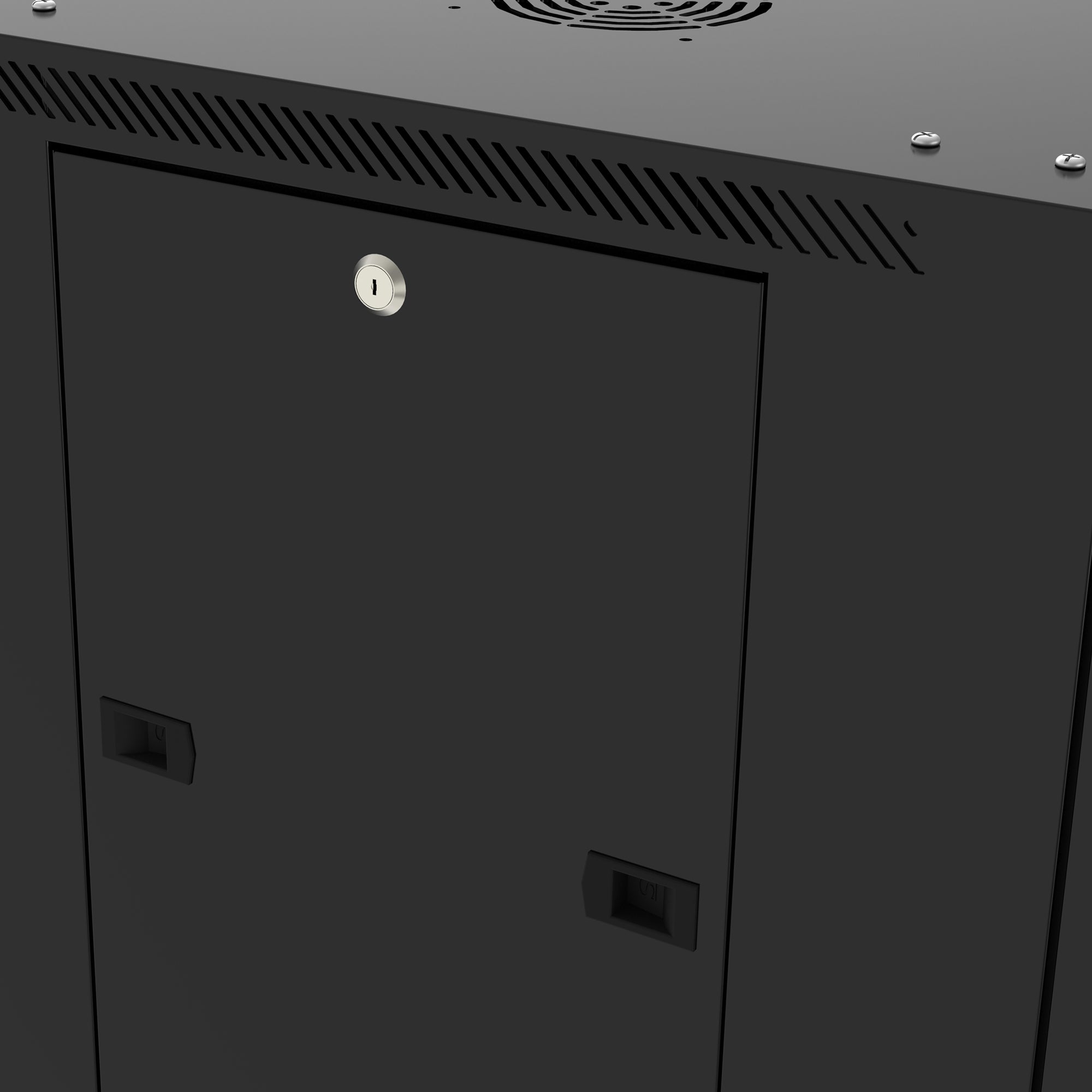

Two (2) solid removable side panels with a quarter-turn lock.
-
Two (2) 2U factory-installed vented rack shelves.
-
Removable cable access panels on cabinet top and bottom.
Part of the Rack Basics® line of economy rack solutions.
Gallery
Accessories
-
Sliding Rack Shelf
-
We Manufacture PDUs and Outlet Strips
-
Cable Strain Relief Bar
-
Horizontal Lacing Strip
-
Horizontal Ring Cable Manager
-
Hardware for Rack Mounting Solutions
-
Adjustable Monitor Mount for Rack
-
Rack Panels
-
Clamping Rack Shelf
-
Heavy Duty Cooling Fan Kits
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | RB-AV18 |
| Series | Audio Equipment Rack Cabinet (RB-AV Series) |
| Short Description | 18U 24D AUDIO-VISUAL CABINET |
| Long Description | 18U 24D Glass Door AV Cabinet |
| Size H x W x D |
38.9 in x 23.63 in x 23.63 in (988 mm x 600 mm x 600 mm) |
| Shipping Weight | 140 lbs (63.50 kg) |
| UNSPSC | 43223306 |
| UPC | 623980810089 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 18 |
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
