Description
Features
- Rated 100-240VAC (TUV), 120-240VAC (UL), 10A, 50/60Hz
- Designed for power distribution on front or rear of unit with IEC power cords.
- 1U horizontal 19" rackmount installation.
- On-Off switch is rocker type with green light (on those units with on-off switch) or a green pilot light to indicate power on.
Specifications
- Includes 10A circuit breaker to prevent accidental line overload.
- cULus Listed UL 62368-1 (2nd Edition), 2014-12-01, and CAN/CSA C22.2 No. 62368-1-14 (2nd Edition).
- TÜV-SUD Certified to EN 62368-1:2020/A11:2020, and IEC 62368-1:2018.
- TÜV-SUD tested for EMC Compliance to EN 55032:2015+A11:2020 (CISPR 32:2015+A1:2019) & EN 55035:2017+A11:2020 (CISPR 35:2016).
- CE compliant to the European Low Voltage Directive 2014/35/EU.
- CE compliant to the European EMC Directive 2014/30/EU.
- UKCA compliant to British Electrical Equipment (Safety) Regulations 2016 (S.I. 2016/1101).
- UKCA compliant to British Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091).
- Finished in textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America.
Gallery
Accessories
-
Hardware for Rack Mounting Solutions
-
Power Cords
-
Rail Depth Adapter Kit
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| CE Declaration of Conformity |
| UKCA Declaration of Conformity |
| Part Attributes | |
|---|---|
| Part Number | 1583H8E1BK |
| Series | Rack Mount Basic PDU (1582E Series) |

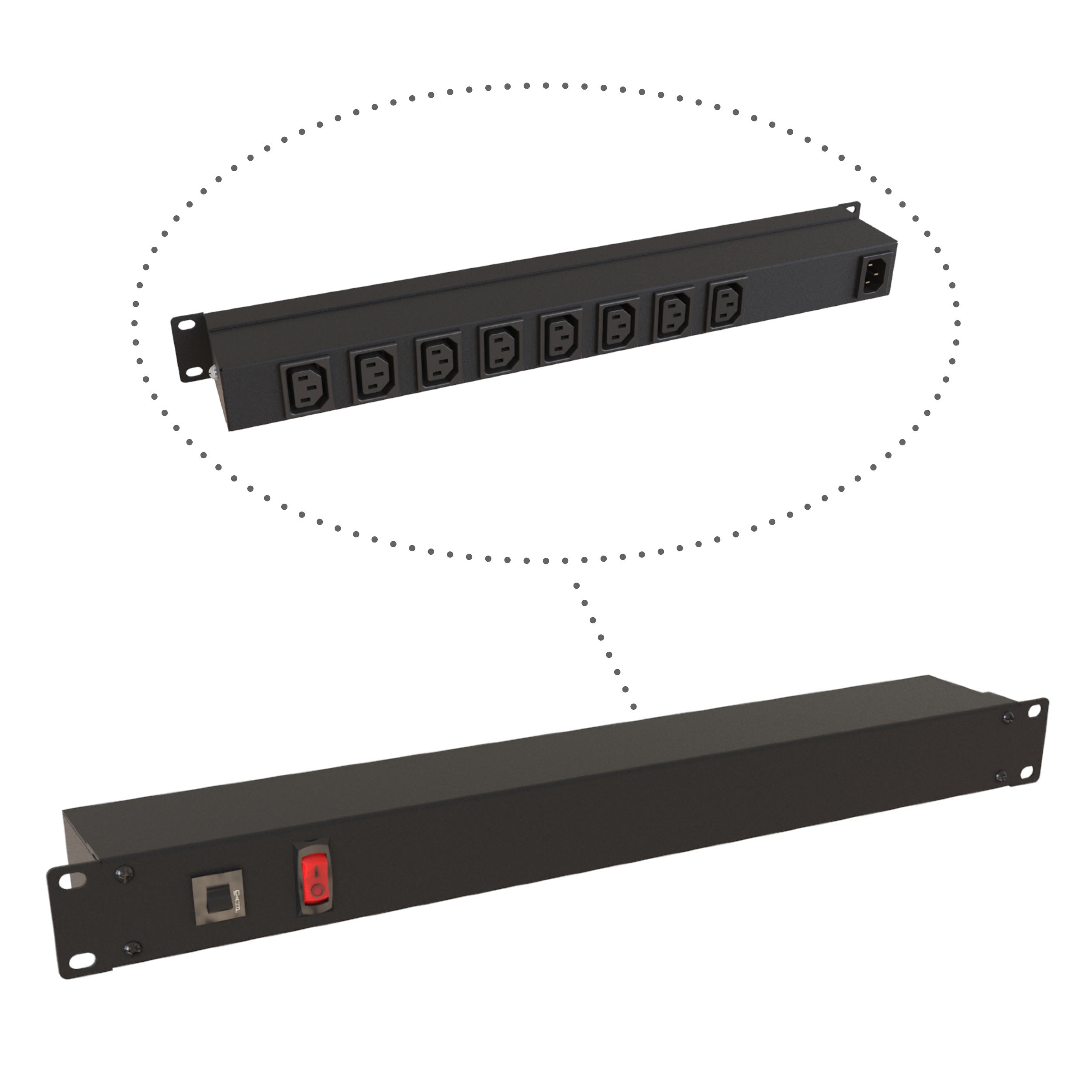

| Short Description | 19" RACK MOUNT, 8 REC ON REAR |
| Shipping Weight | 3 lbs (1.36 kg) |
| UNSPSC | 39121710 |
| UPC | 623980533070 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Outlet Strip Type | 1U 19in Rack Mount |
| Rated Voltage | 100-240VAC (TUV), 120-240VAC (UL), 10A, 50/60Hz |
| Rated Current (Amps) | 15 |
| Switch Type | On/Off Rocker Switch |
| Total Outlets | 8 |
| Outlet Type | C13 |
| Plug Type | C14 |
| Cord Included | No |
| Cord Length (feet) | 15 |
| Shielded Cord | No |
| Surge Protection | No |
| Color | Black |
| Rotated Outlets | No |
| Hospital Grade | No |
| Metered | No |
| Outlets (Front) | 0 |
| Outlets (Rear) | 8 |
