Description
Features
- Designed for power distribution from the rear of the unit.
- 1U horizontal 19" rackmount installation.
- Available with an illuminated on/off rocker switch or red power indicator light.
- Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type.
- Rotated options include outlets with extra spacing for clearance of most plug-in transformers.
General Specifications
- Heavy-duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral moulded plug.
- Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
- UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
- Finished in RAL9005 black or ASA61 gray powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America.
Metered Specifications
- Unit includes - easy to read 0.37" high, red LED ammeter (1.38" x 0.88" display).
- Digital ammeter accuracy +/- 0.1 Amps
Surge Specifications
- Surge-protected panels incorporate our surge module:
- Max Energy (Joules) is 1080 J.
- 25000 Amp-rated MOV’s for 75,000 Amps of single pulse transient current.
- Voltage Protection Rating (Vpr) of 500V in all three modes (L-N, L-G, N-G).
- Nominal Discharge Current (In) of 5kA.
- The green indicator light confirms surge module is active.
- Internal protection will disconnect the surge module at the end of its useful life (and extinguish the green light) but will maintain power to the load, now unprotected.
- Voltage suppression at the outlet guards against transients from the equipment on the outlet strip.
- cRUus recognized to UL 1449 & C22.2 No. 269.3-17 & No. 269.4-17 for Surge Protective Devices – Type 3 & Type 4.
- cRUus recognized to UL 1363 & C22.2 No. 308-18 for Relocatable Power Taps & Multi Outlet Assemblies.
Shielded Cord Specifications
- Shielded cord reduces EMI/ RFI and "dirty" power from utilities.
- Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.
Plug Types
5-15P Straight Blade
L5-15P Locking Type
Gallery
Accessories
-
Hardware for Rack Mounting Solutions
-
Rail Depth Adapter Kit
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|

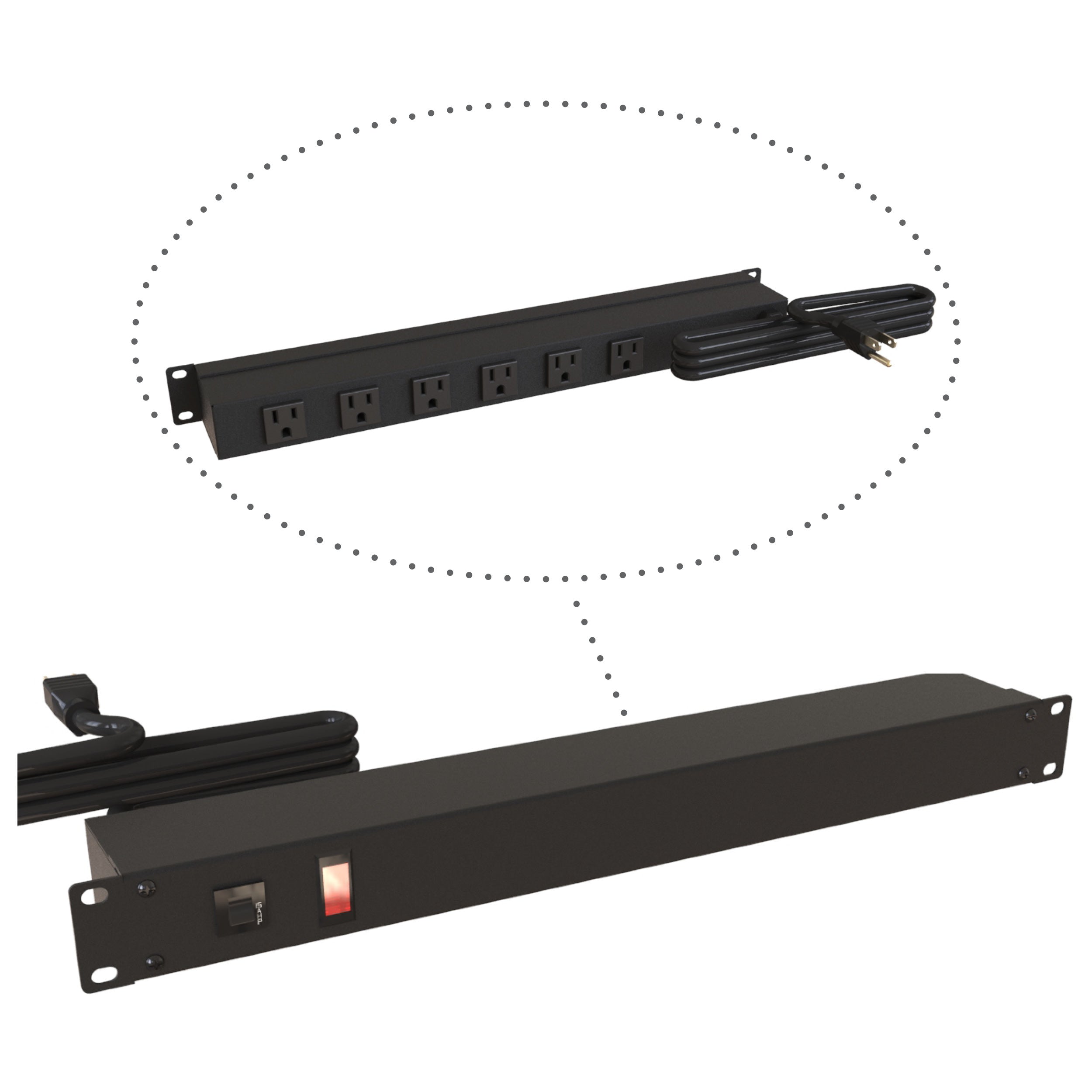

| Part Number | 1583T6A1BKRA |
| Series | Rack Mount Basic PDU (1583 Series) |
| Short Description | 19" RACK MOUNT, 90 DEG RECEP |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 6 Outlets, 6 ft cord, Black |
| Shipping Weight | 4 lbs (1.81 kg) |
| UNSPSC | 39121710 |
| UPC | 623980195490 |
| UL File # | E166039 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Outlet Strip Type | 1U 19in Rack Mount |
| Rated Voltage | 120 VAC |
| Rated Current (Amps) | 15 |
| Switch Type | No Switch. Power Indicator Light |
| Total Outlets | 6 |
| Outlet Type | 5-15R |
| Plug Type | 5-15P |
| Cord Included | Yes |
| Cord Length (feet) | 6 |
| Shielded Cord | No |
| Surge Protection | No |
| Color | Black |
| Rotated Outlets | Yes |
| Hospital Grade | No |
| Metered | No |
| Outlets (Front) | 0 |
| Outlets (Rear) | 6 |
