Description
Features
- Constructed of 14 or 16 gauge steel.
- Universal design mounts to any standard EIA-compliant rack or cabinet.
- Allows easy rack mounting of equipment or items that do not have rack mounting capabilities.
- Mounts to rack rails either as an internal shelf or external shelf/work area.
- Available in either vented or solid versions.
- Up to 200 lbs (91 kg) static load rating.
- Rugged textured RAL9005 black powder coat finish. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
New design supports optional RASCLAMP clamping arm that replaces the RACS Series.
Accessories
-
Hardware for Rack Mounting Solutions
-
Hook and Loop Convenience Roll
-
Rack Rail Reducer Panel
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | RASU190112BK1 |
| Series | Universal Rack Shelf (RAS Series) |

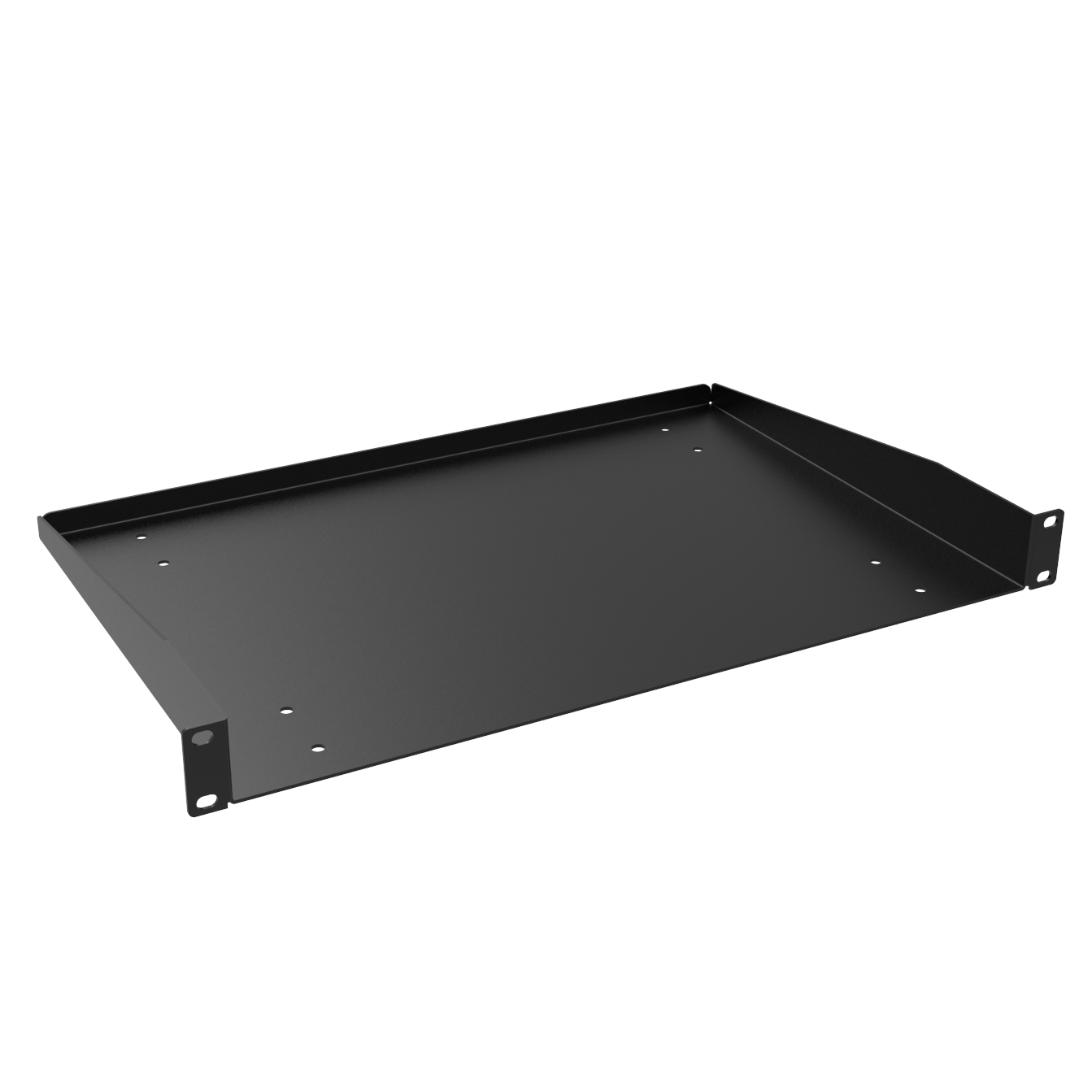

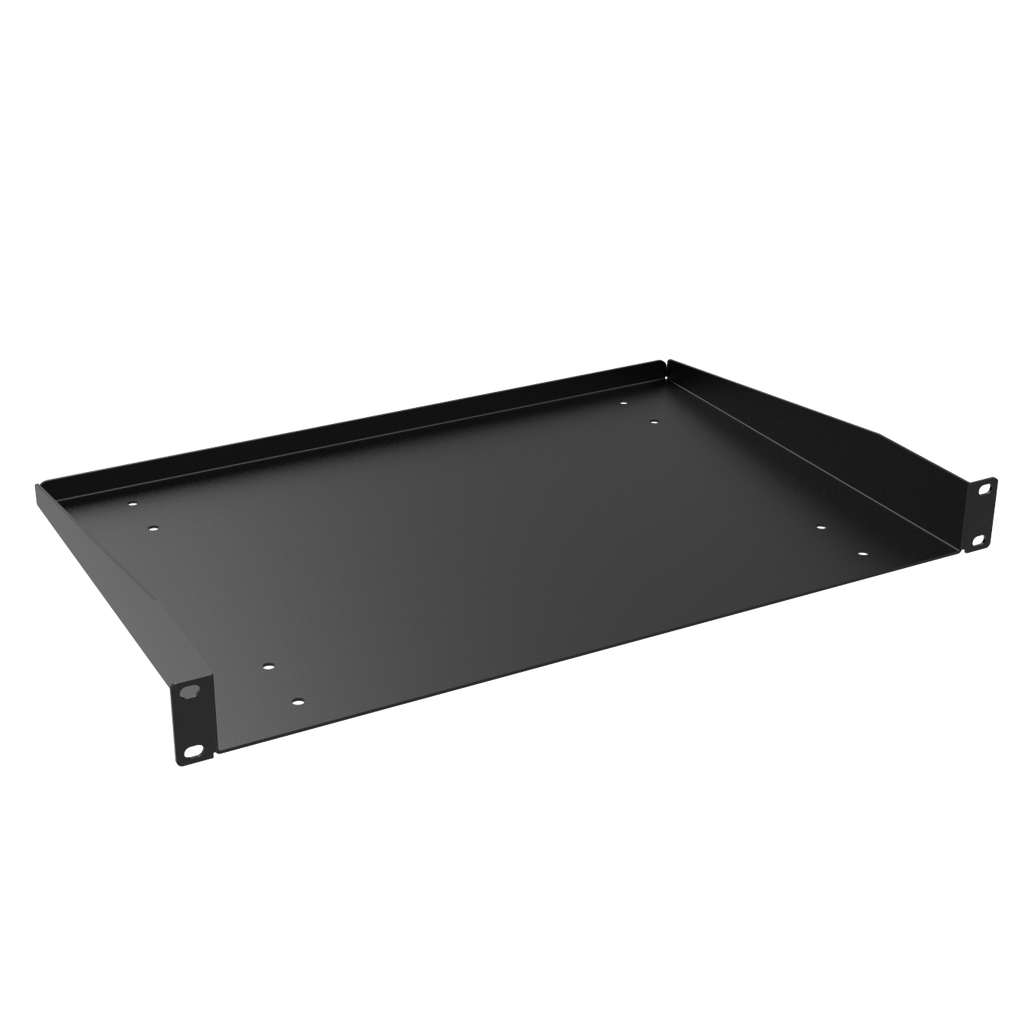

| Short Description | 1U 12D SOLID RACK SHELF |
| Long Description | 1U 12IN DEEP SOLID RACK SHELF |
| Size H x W x D |
1.75 in x 19 in x 12 in (44 mm x 483 mm x 305 mm) |
| Shipping Weight | 5 lbs (2.27 kg) |
| UNSPSC | 43201618 |
| UPC | 623980756486 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
