Description

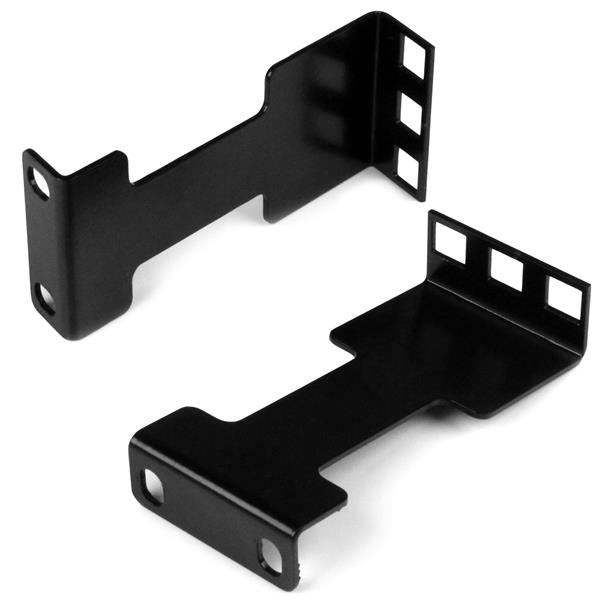

With Hammond's Rail Depth Adapter Kit, the equipment can be moved four (4) inches in either direction. useful when mounting patch panels or switches that have a small clearance for the cable bend radius.
Features
- Constructed of 16 gauge steel.
- Available in 1U and 2U sizes.
- Sold in pairs.
- Designed for mounting equipment either in front of or behind the rail.
- Mounts to all EIA mounting rails.
- Converts round holes or threaded holes to square holes.
- The suggested load capacity of 10 lbs (4.5 kg).
- Finished in smooth RAL9005 black powder paint finish.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
This product is available for private label. Click here to learn more.
Gallery
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Overall Dimensions | Mounting Dimensions | ||
|---|---|---|---|---|
| Height | Depth | Height | Rack Units | |
| RDA1U4 | 1.75 | 4.00 | 1.75 | 1U |
| RDA2U4 | 3.50 | 4.00 | 3.50 | 2U |
| Qty Included | Description |
|---|---|
| 2 | Adaptor bracket |
| 4 | 10-32 x 0.625in screw |
| 4 | 10-32 Cage nut |
| 1 | Installation instructions |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10438 - RDA ASSEMBLY INSTUCTIONS |
| Part Attributes | |
|---|---|
| Part Number | RDA1U4 |
| Series | Rail Depth Adapter Kit (RDA Series) |
| Short Description | 1U 4D RAIL DEPTH ADAPTER |
| Shipping Weight | 1 lbs (0.45 kg) |
| UNSPSC | 43201618 |
| UPC | 623980771557 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
