Description
Features
- Available in 1U, 2U, and 4U mounting heights.
- It is hinged for easy rear access to devices.
- Fixed depth of 6 inches.
Specifications
- Constructed in 16-gauge steel.
- Round hole 19" mounting rails are constructed in 16-gauge steel.
- Includes ten CLPKIT10-32-10 black rack screws with washers and clip nuts.
- Up to 50 lbs (22 kg) static load rating.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Part of the Rack Basics® line of economy rack solutions
Accessories
-
Cable Managers
-
Mounting Screw and Clip Nut Combo-Pack
-
We Manufacture PDUs and Outlet Strips
-
Ground Stud Kit
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|

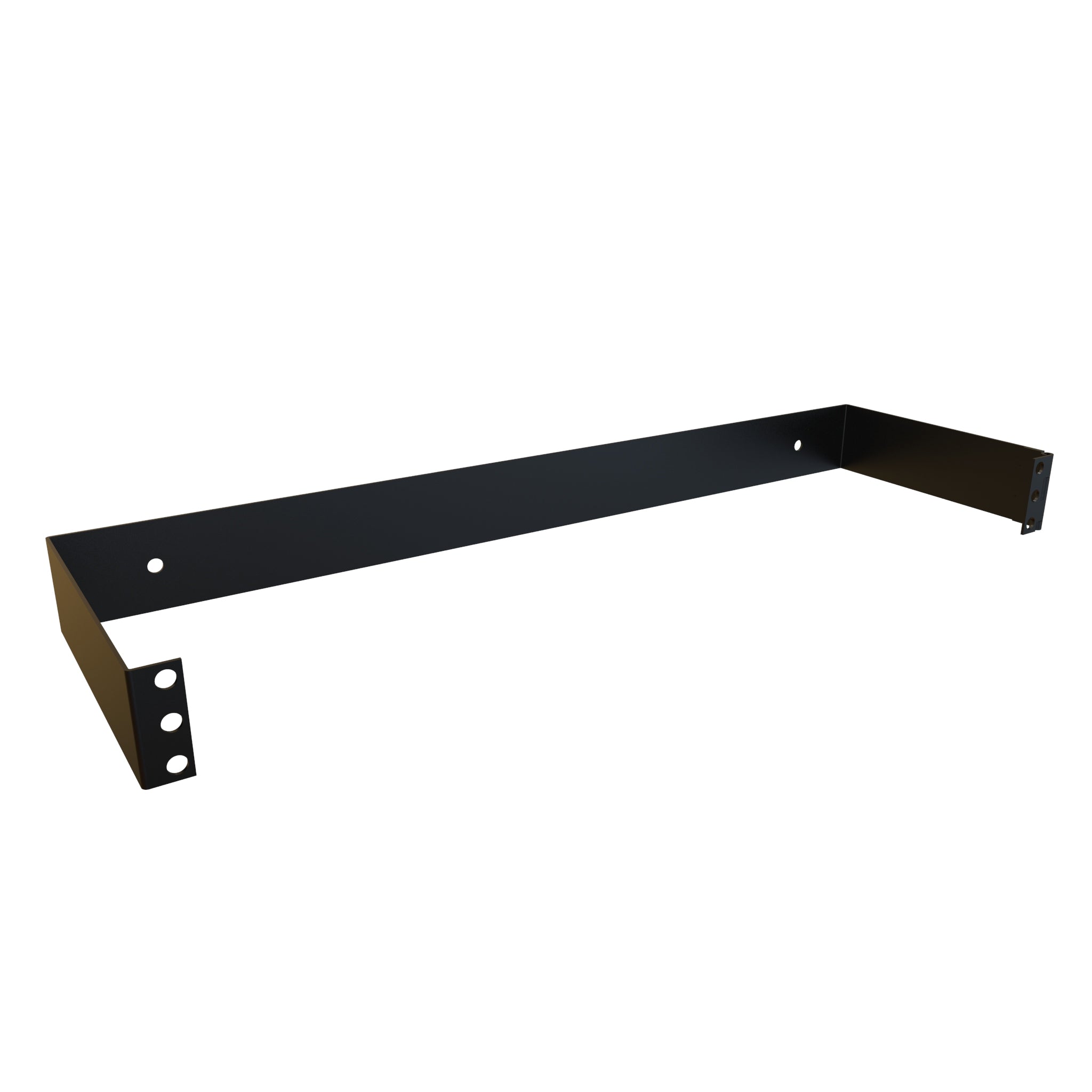

| Part Number | RB-WR1 |
| Series | Economy Fixed Depth Wall Rack (RB-WR Series) |
| Short Description | 1U 6D FIXED WALL RACK |
| Long Description | 1U 6"D Rack Basics Fixed Depth Wall Bracket |
| Size H x W x D |
1.88 in x 19.36 in x 6 in (48 mm x 492 mm x 152 mm) |
| Shipping Weight | 2 lbs (0.91 kg) |
| UNSPSC | 43223308 |
| UPC | 623980777948 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 1 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
