Description
Features
- Constructed of 14-Gauge Steel.
- Fits within a single EIA-310-E rack unit and telescopes to cover the entire depth.
- Available in either solid or vented.
- Can be installed in either standard tray-down or inverted (flipped) position, offering versatility for varying equipment heights, airflow needs, or clearance requirements. If your load is dynamic or segmented (like batteries), we suggest installing the ADSB to add more stability.
- Ships fully assembled.
- Mounts to 4 post frame/rack
- Up to 550 lbs (250 kg) load rating when optional ADSB support bar is installed.
- Up to 330 lbs (150 kg) without ADSB installed.
- Finished in RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America.
Improved packaging better protects against shipping damage.
Gallery
Accessories
-
Hardware for Rack Mounting Solutions
-
Rack Equipment Installation Tool
-
Rack Rail Reducer Panel
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL87002 - ADS SERIES INSTRUCTION |
| Part Attributes | |
|---|---|
| Part Number | ADSV1825BK |
| Series | Adjustable Server Rack Shelf (ADS Series) |

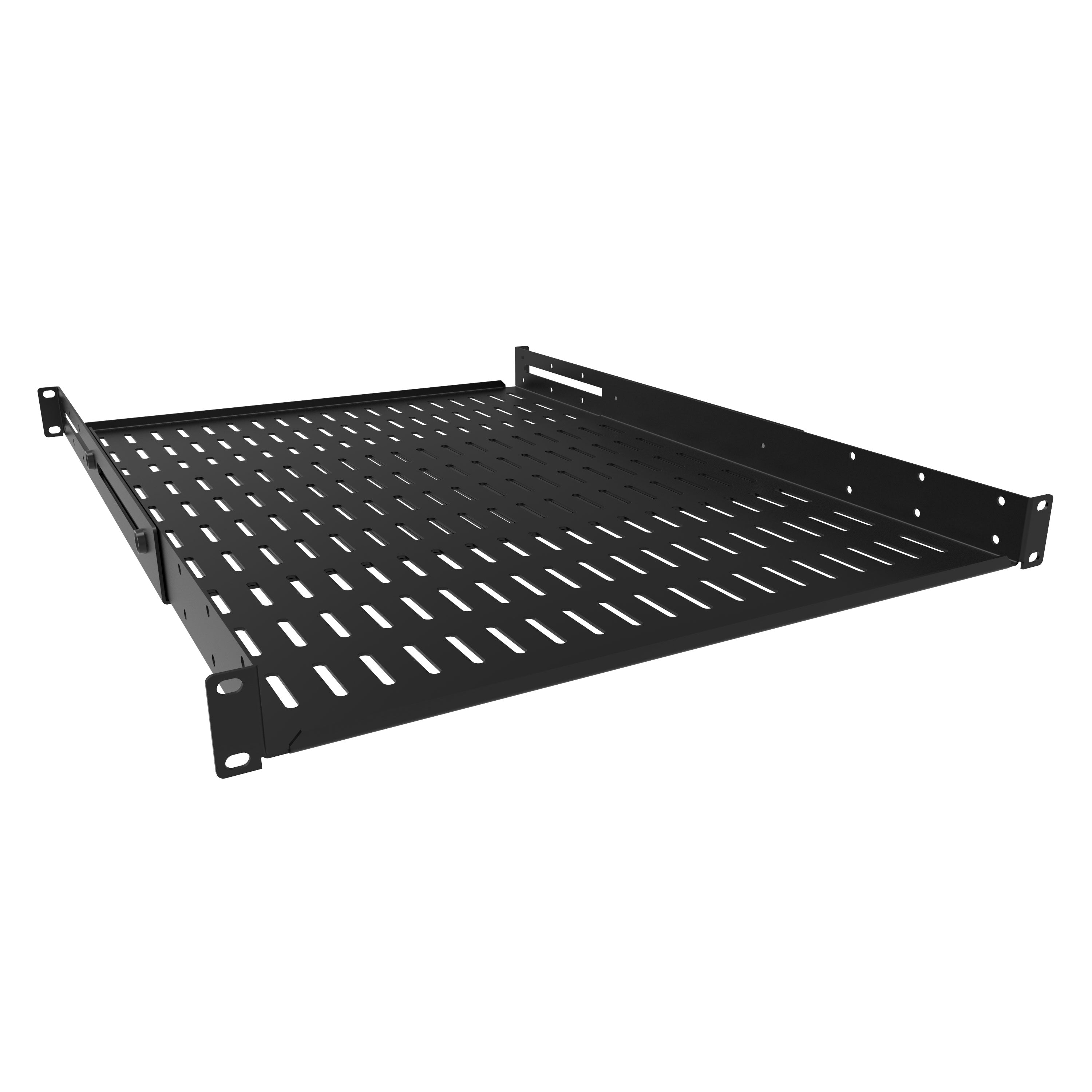

| Short Description | 1U ADJ DEPTH 18-25 VENT SHELF |
| Long Description | 1U 18-25 ADJUSTABLE TELESCOPING VENTED SHELF |
| Size H x W x D |
1.75 in x 19 in x 25 in (44 mm x 483 mm x 635 mm) |
| Shipping Weight | 16.2 lbs (7.35 kg) |
| UNSPSC | 43201618 |
| UPC | 623980340876 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
