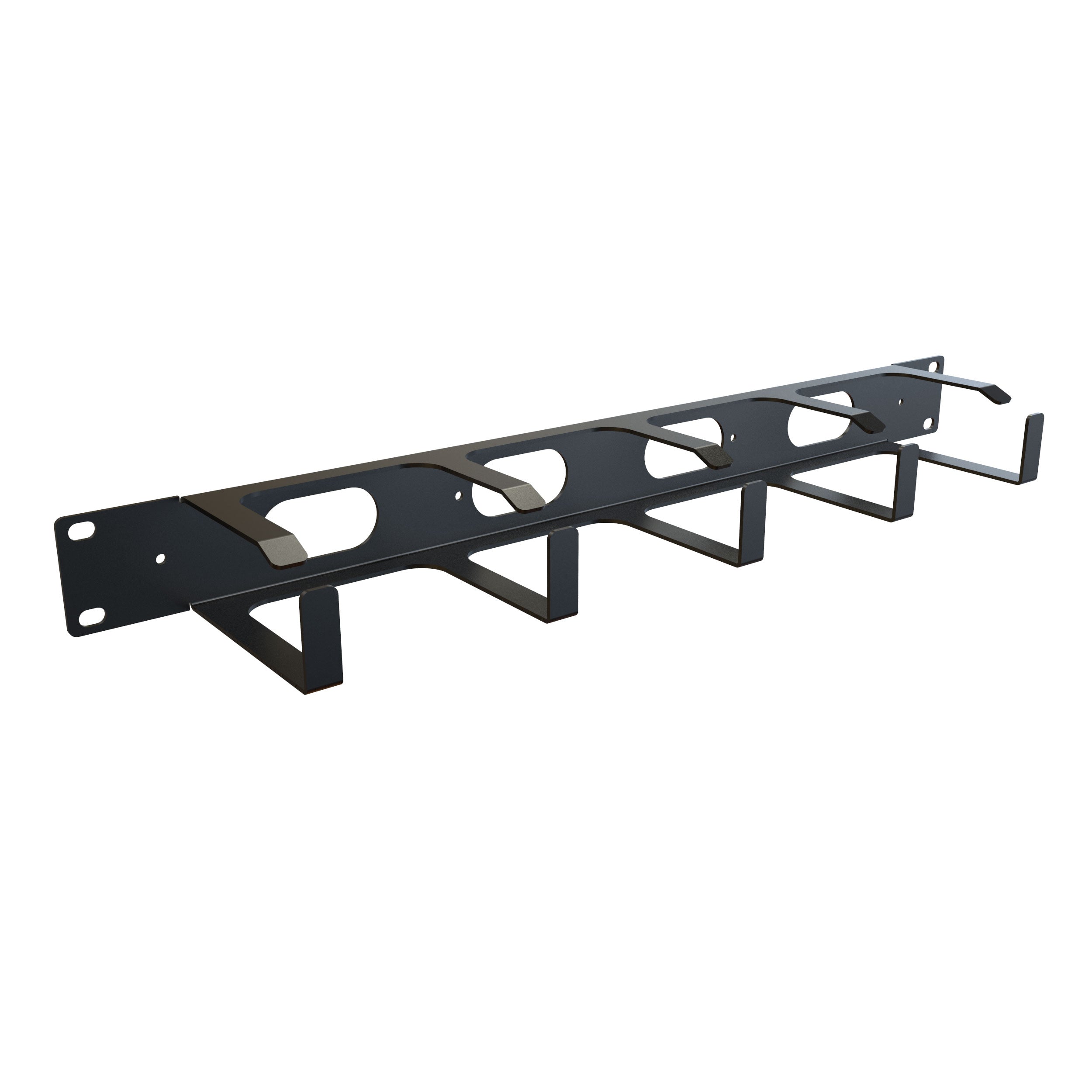

Description
Features
- Constructed in 16-gauge steel.
- Flanged at front for added strength.
- Designed to fit standard 19” rails.
- Rings extend 3.69 inches from the panel front.
- Includes four (4) cable pass-through cutouts.
- Designed to mount two (2) units back-to-back.
- Requires mounting hardware.
- Finished in textured RAL9005 black powder paint finish.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America.
Part of the Rack Basics® line of value rack solutions.
Accessories
-
Hardware for Rack Mounting Solutions
-
Hook and Loop Convenience Roll
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Overall Dinmensions | Usable Mounting Dimensions | |||
|---|---|---|---|---|---|
| Height | Width | Depth | Rack Units | Height | |
| RB-HRM1 | 1.72 | 19.00 | 3.69 | 1U | 1.75 |
| RB-HRM2 | 3.22 | 19.00 | 3.69 | 2U | 3.50 |
Estimated Cable Fill Capacities
| Rack | Description | Opening | Recommended Cable Fill (50% Fill Ratio) | Maximum Cable Fill (100% Fill Ratio) | ||||
|---|---|---|---|---|---|---|---|---|
| Units | Quantity | Cat 5e | Cat 6 | Cat 6a | Cat 5e | Cat 6 | Cat 6a | |
| 1U | Channel Opening | 1 | 50 | 32 | 22 | 100 | 64 | 45 |
| Rear Pass Through | 4 | 16 | 10 | 7 | 32 | 20 | 14 | |
| 2U | Channel Opening | 1 | 102 | 65 | 45 | 204 | 130 | 91 |
| Rear Pass Through | 4 | 25 | 16 | 11 | 49 | 32 | 22 | |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | RB-HRM1 |
| Series | Horizontal Ring Cable Manager (RB-HRM Series) |
| Short Description | 1U STEEL RING CABLE MANAGER |
| Shipping Weight | 1.5 lbs (0.68 kg) |
| UNSPSC | 43223305 |
| UPC | 623980400495 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
