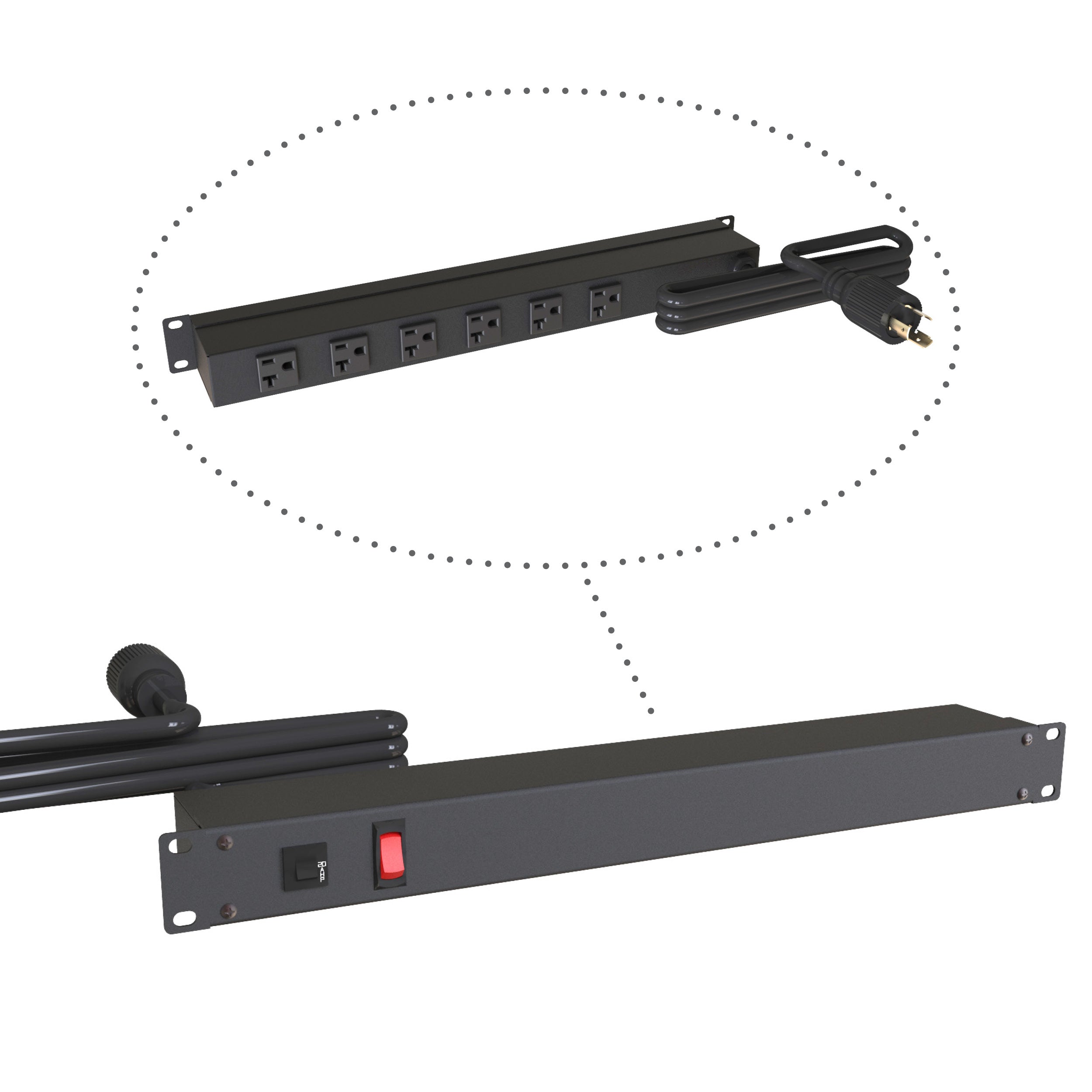

Hammond 20A 6 OUTLET SWITCH 15' TW LCK

Features

• Designed for power distribution from the front or rear of the unit.
• 1U horizontal 19" rackmount installation.
• Available with an on/off switch or red pilot light to indicate power on.

Specifications

• Heavy duty 12 gauge wire cord - 12/3 SJT type for extreme temperature ranges and integral molded plug.
• Heavy-duty black receptacles rated for 20A, 125VAC service (NEMA 5-20R, Single T-Slot supports 5-15/5-20 devices).
• Plug types available are NEMA 5-20P straight blade or NEMA L5-20P locking type.
• Includes 20 Amp, 125 VAC circuit breaker to prevent accidental overload.
• The operating temperature is from -20 degrees C to +60 degrees C.
• UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14.
• Finished in textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America.

Metered Specifications

• Unit includes - easy to read 0.37" high, red LED ammeter (1.38" x 0.88" display).
• Digital ammeter accuracy +/- 0.1 Amps.

Shielded Cord Specifications

• Shielded cord reduces EMI/ RFI and "dirty" power from utilities.
• Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.

Plug types

5-15P Straight Blade

L5-15P Locking Type

Accessories

• Hardware for Rack Mounting Solutions
• Rail Depth Adapter Kit
