Description

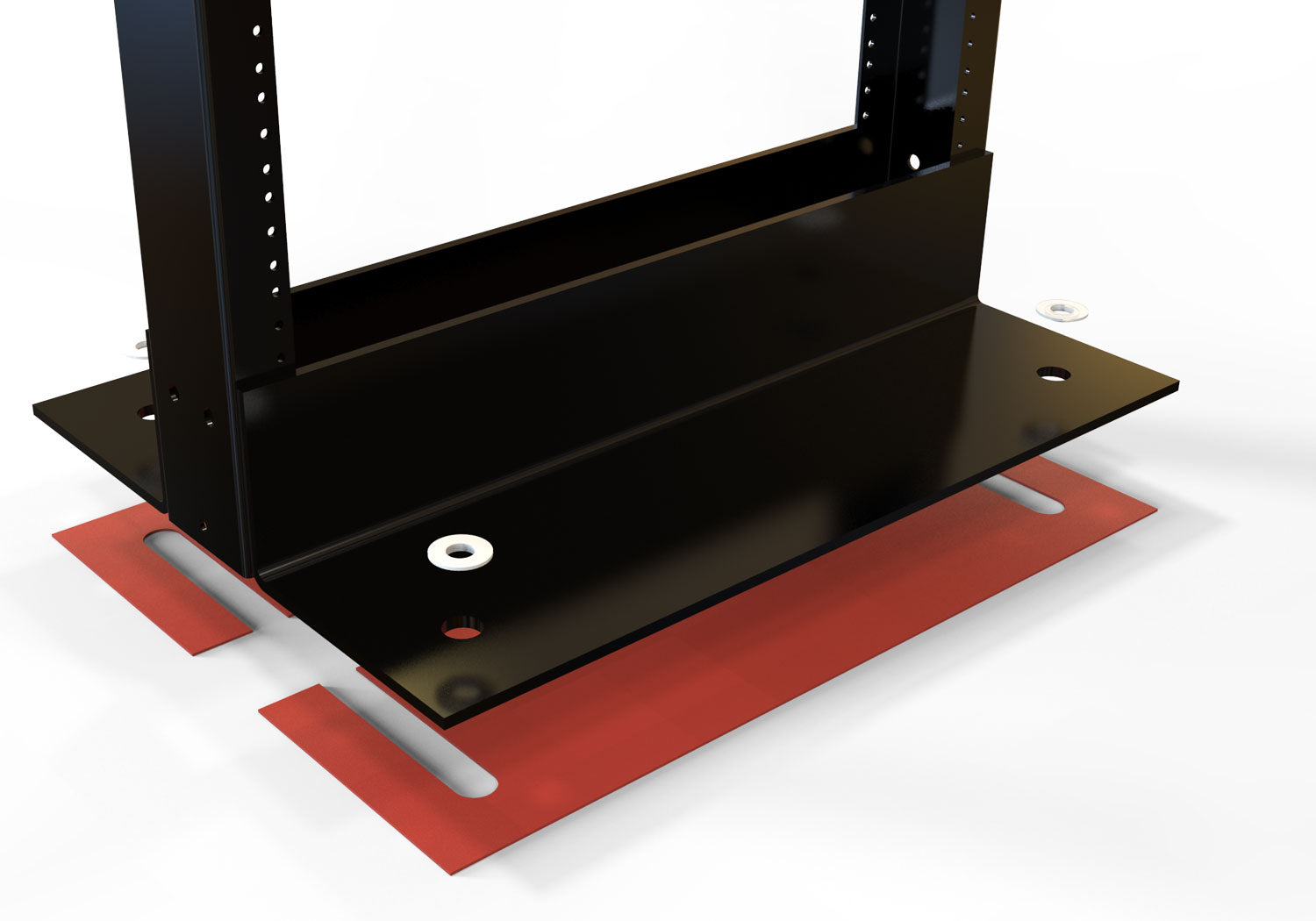

The Rack Isolation Kit isolates open-frame racks from conductive flooring to prevent multiple ground paths.
Features
- Universal design works with most rack manufacturers.
- Use with Hammond and Rack Basics part numbers:
- RB-2P
- RB-2PA
- DNRRHDW
- DNRRHDKB
- DC4R
- DRZ4 *see the specific version in table.
- Open-ended design allows for retrofit installation.
- Isolation plates constructed of glass-reinforced thermoset polyester.

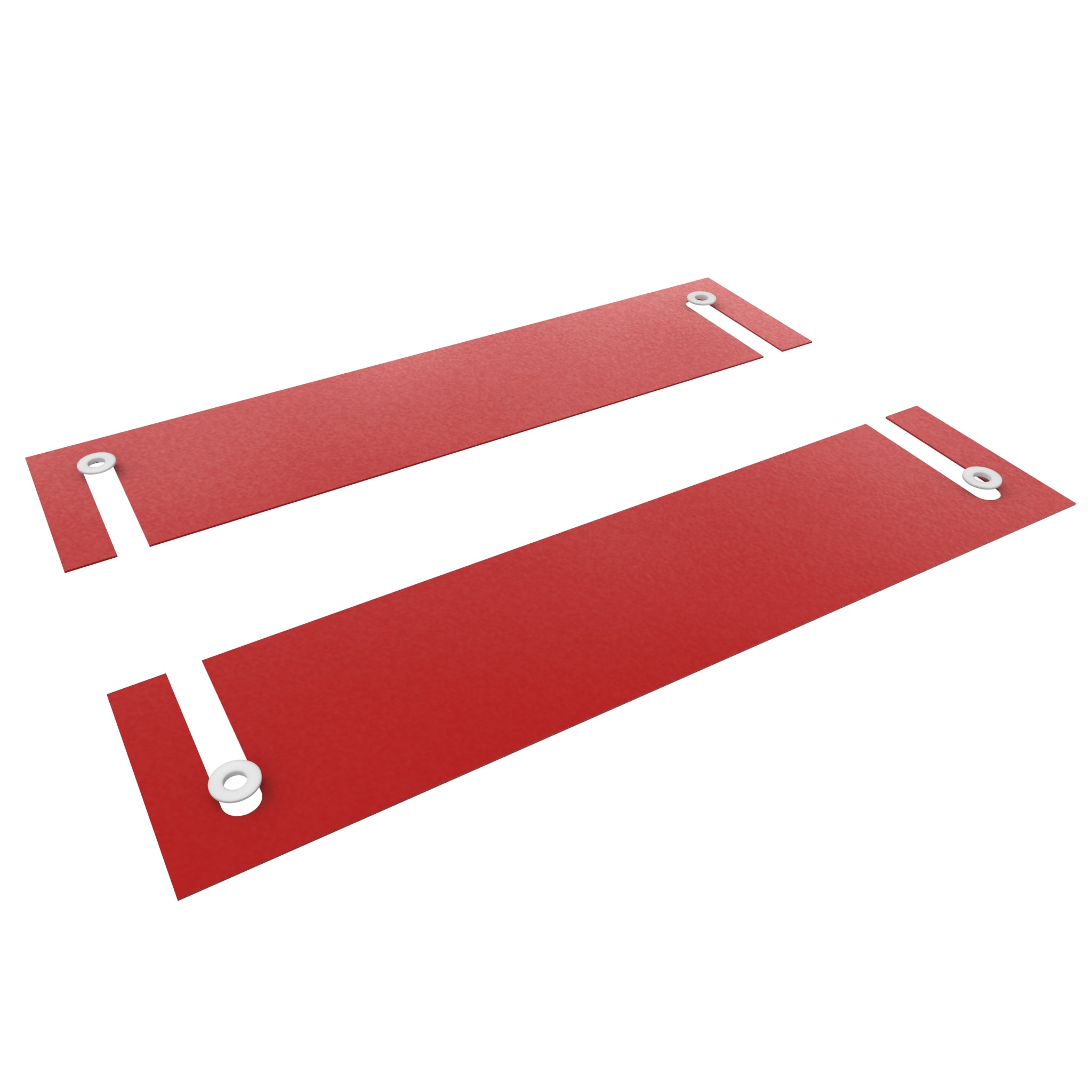

- Included in Kit:
- (2) isolation plates
- (4) isolation shoulder washers
- Bolt-down C4K-Z4 kit sold separately.
Gallery
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL86938 - ISOLATION PAD INSTRUCTIONS |
| Part Attributes | |
|---|---|
| Part Number | RIK23Z4 |
| Series | Rack Isolation Kit (RIK Series) |
| Short Description | 23" DRZ4 ISOLATION KIT |
| Long Description | Rack isolation kit for 23in DRZ4 |
| Size H x W x D |
0.06 in x 24 in x 7.5 in (2 mm x 610 mm x 191 mm) |
| Shipping Weight | 1.4 lbs (0.64 kg) |
| UNSPSC | 39121117 |
| UPC | 623980002699 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
