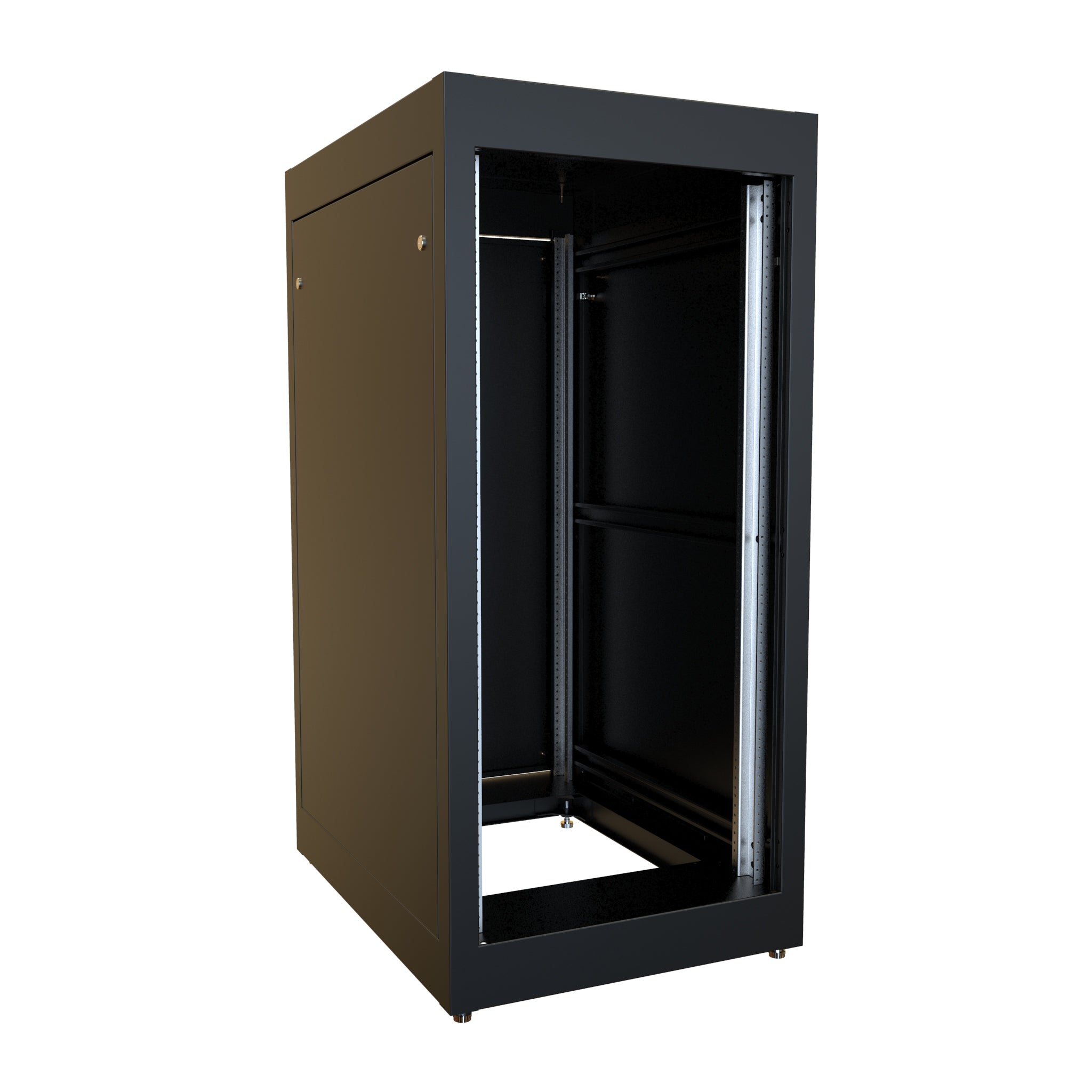

Hammond 24U 23W 31.5D C2 BLK ASSEMBLY

Features

• Available in 24U, 36U, 40U and 45U mounting heights.
• Available in 23” overall width (19" mounting width).
• Available in 23.62" and 31.5" overall depths.
• C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• Flush-mounted doors with quarter-turn lock.
• Solid side panels.
• One (1) interchangeable top panel.

Specifications

• Welded cabinet frame is 14-gauge steel with 12-gauge steel reinforced corner brackets.
• Cabinet doors and side panels are constructed in 16-gauge steel.
• Drilled and 10-32 tapped combination 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• 1,500 lbs (680 kg) static load rating.
• Grounding studs are provided on the frame, side panels, and doors. The front and rear studs on the cabinet frame conform to PET.
• Finished in textured RAL9005 black or RAL 7035 light gray powder coat. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Included Components

• All configurations include:
  • Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
  • Two (2) pairs of adjustable depth EIA compliant 10-32 tapped flange mounting rails.
    • Starter pack of SCREW1032-25 screws.
  • Two (2) removable side panels (with 1/4 turn latches).

• C2RR Series Specific Components Include:
  • One (1) solid locking door (Can be used as either front or rear door)
  • One (1) solid top panel

• C2RR "D" Series Specific Components include (Replaced by C4RR):
  • One (1) locking front window door
  • One (1) locking rear louvered door
  • One (1) vented top panel with four (4) 3.5" (89 mm) diameter cable access holes with covers.

Are you looking for the CAK for wider legacy-wide C2 cabinets? Click here.

Upgrade your cabinet to include Lifting Eye-Bolts with 2,000 lbs of lifting capacity. Ask your local representative for details.
