Description
Features
- Braces and rack rails are constructed of 12-gauge steel, while the other body components are constructed of 16-gauge steel.
- EIA compliant 10-32 tapped rails with 19” mounting and rack unit indicators.
- The rack frame swings (in both directions) at the center, providing convenient equipment access without exceeding the rack footprint.
- Adjustable depth using slots for easy set-up and adjusting.
- Overall depth from 18.0" to 24.0"
- Usable depth from 15.1" to 21.1"
- Top and Bottom rack units have a usable depth from 12.4" to 18.4" due to the angled rear bracket.
- Three (3) spring pin positions allow for simplified equipment maintenance.
- Side and rear cable access with multiple tie points for cable management.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- Self-squaring design ships un-assembled (some assembly required).
- 220 lbs (100 kg) static load rating.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Included in the Box
- HWMR components and assembly hardware.
- Assembly bulletin.
- Wall mounting template for easy 16-inch center installation. (Wall mounting hardware not included)
- Starter pack of SCREW1032-50 screws.
You might also like our RB-2PW Fixed Wall Rack.
This product is not designed nor intended to be used for non-wall mounted applications.

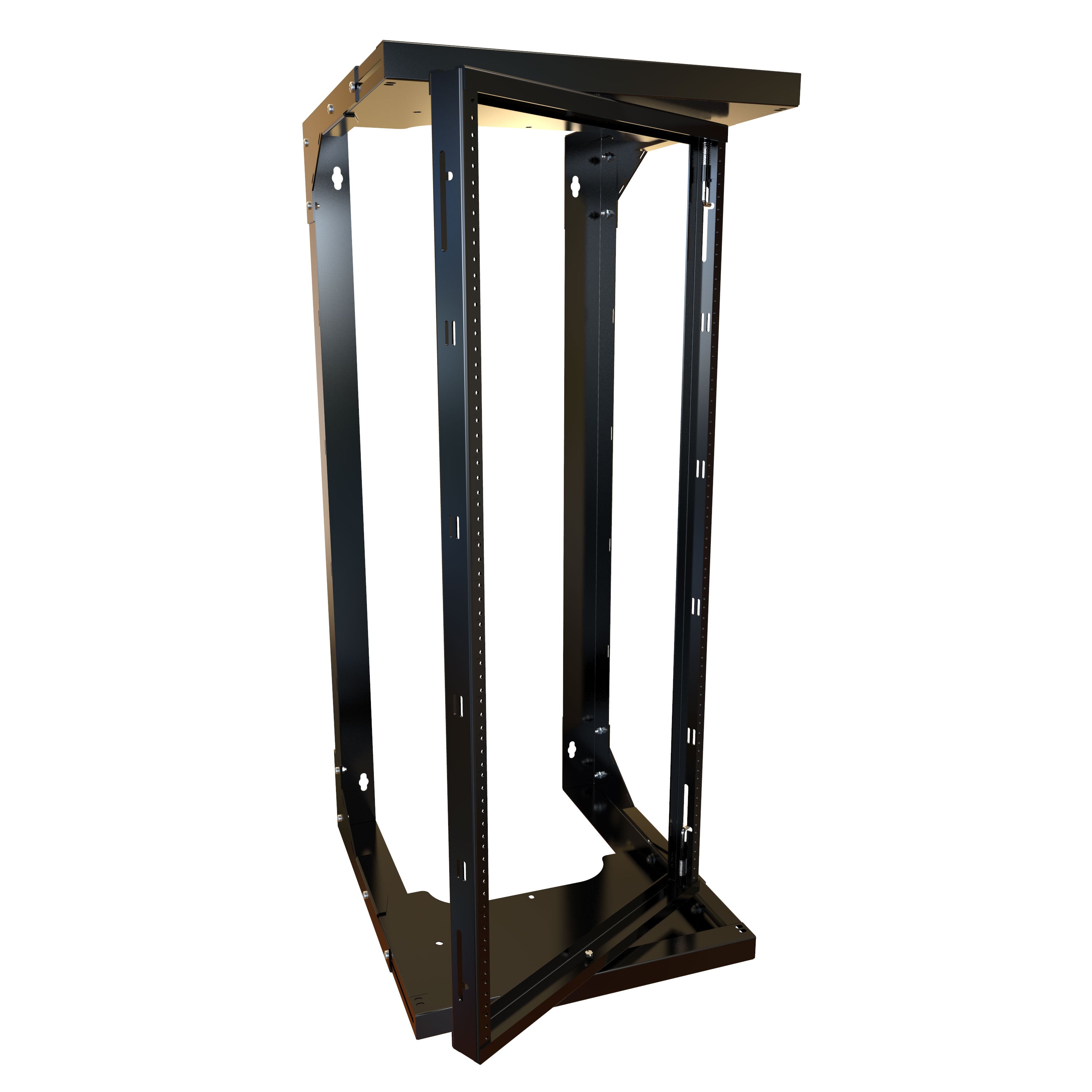

The Hammond Wall Mount Rack (HWMR) series was designed to easily mount network equipment in IT environments with limited floor space. Unlike similar racks, Hammond has integrated both depth adjustment and center swing capabilities in one rugged open rack system. Available in 12U, 20U, 24U and 32U rack unit options, the HWMR can easily adjust in depth from eighteen to twenty-four inches to accommodate a wide range of equipment sizes.
Gallery
Accessories
-
Cable Managers
-
Wall Rack Cable Manager
-
Vertical Cable Tie Down Bracket
-
Rack Panels
-
Rail Mounting Cable Ring
-
Universal Rack Shelf
-
Clamping Rack Shelf
-
Keyboard & Equipment Rack Shelf
-
Adjustable Rack Shelf
-
Adjustable Rack Mount DIN Rail Kit
-
Hinged Clear Security Cover
-
RMU Label Kit (Set of 2)
-
Hardware for Rack Mounting Solutions
-
We Manufacture PDUs and Outlet Strips
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10472 - HWMR ASSEMBLY INSTRUCTION |
| Part Attributes | |
|---|---|
| Part Number | HWMR1924UBK |
| Series | Adjustable Depth Center Swing Wall Rack (HWMR Series) |
| Short Description | 24U PIVOT ADJ DEPTH WALL RACK |
| Long Description | 24U Adjustable Depth Center Swing Wall Rack (18"-24") |
| Size H x W x D |
47.5 in x 20 in x 24 in (1,207 mm x 508 mm x 610 mm) |
| Shipping Weight | 56 lbs (25.40 kg) |
| UNSPSC | 43223308 |
| UPC | 623980522579 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 24 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
