Description
Features
- This combo-pack is available in 10-32, 12-24 or M6 Mounting Screws and Cage Nuts.
- Convenient to have when installing rack-mount equipment in server (square hole) rails.
- The pack includes an equal number of 0.750” length black rack screws and zinc plated cage nuts for square hole punched panel rails.
Specifications
Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with full dog point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
Cage Nuts
- Constructed of zinc-plated SAE 1050-1065 spring steel.
- 0.375in (9.54mm) square hole punched panel rails.
- Heat-treated through austempering.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
Gallery
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | CAGKIT1032-25 |
| Series | Mounting Screw and Cage Nut Combo-Pack (CAGKIT Series) |

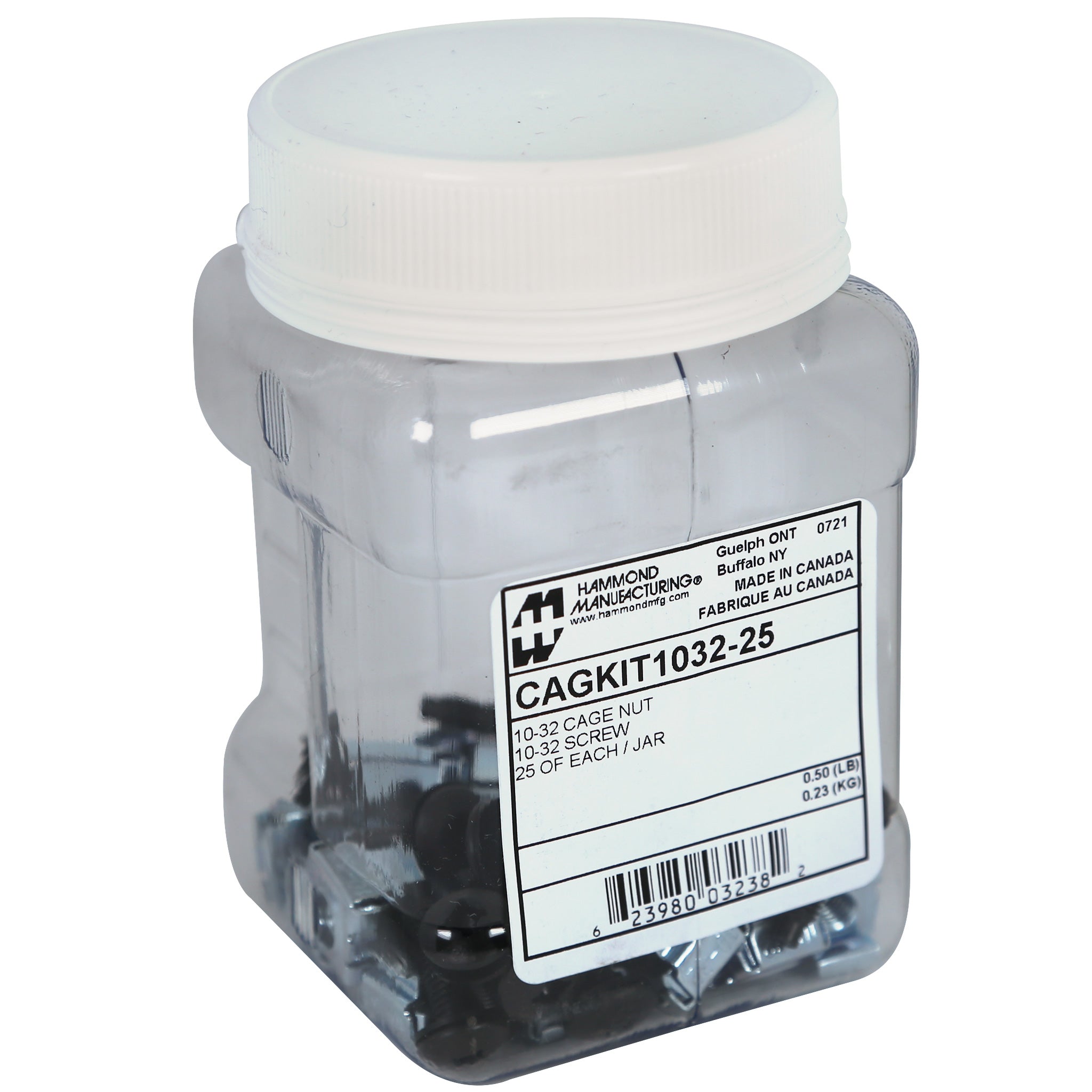

| Short Description | 25PK 10-32 CAGNUTS & SCREWS |
| Shipping Weight | 0.5 lbs (0.23 kg) |
| UNSPSC | 31161504 |
| UPC | 623980032382 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
