Description
Features
- 16-gauge steel construction.
- The vented version provides a sturdy shelf while allowing passive airflow.
- Rugged textured black powder paint finish.
- The solid version is available in either 19" or 23" rack mounting width.
- 200 lbs (91 kg) load rating.
- Finished in textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America.
Accessories
-
Hardware for Rack Mounting Solutions
-
Hook and Loop Convenience Roll
-
Rack Rail Reducer Panel
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
19" Mounting
Units shown: inch. Switch units to: mm
| Part No. | Part No. | Overall Dimensions | Rack | Mounting | |
|---|---|---|---|---|---|
| Vented | Solid | Height | Depth | Units | Width |
| - | DNDMS1916BK1 | 3.50 | 16.00 | 2U | 19.00 |
| DNDMV1918BK1 | DNDMS1918BK1 | 3.50 | 18.00 | 2U | 19.00 |
| DNDMV19BK1 | DNDMS19BK1 | 3.50 | 19.50 | 2U | 19.00 |
| - | DNDMS1920BK1 | 3.50 | 20.00 | 2U | 19.00 |
| - | DNDMS1922BK1 | 3.50 | 22.00 | 2U | 19.00 |
| - | DNDMS1924BK1 | 3.50 | 24.00 | 2U | 19.00 |
23" Mounting
Units shown: inch. Switch units to: mm
| Part No. | Overall Dimensions | Rack | Mounting | |
|---|---|---|---|---|
| Solid Only | Height | Depth | Units | Width |
| DNDMS23BK1 | 3.50 | 19.50 | 2U | 23.00 |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | DNDMS1924BK1 |
| Series | Centered Rack Shelf (DNDM Series) |

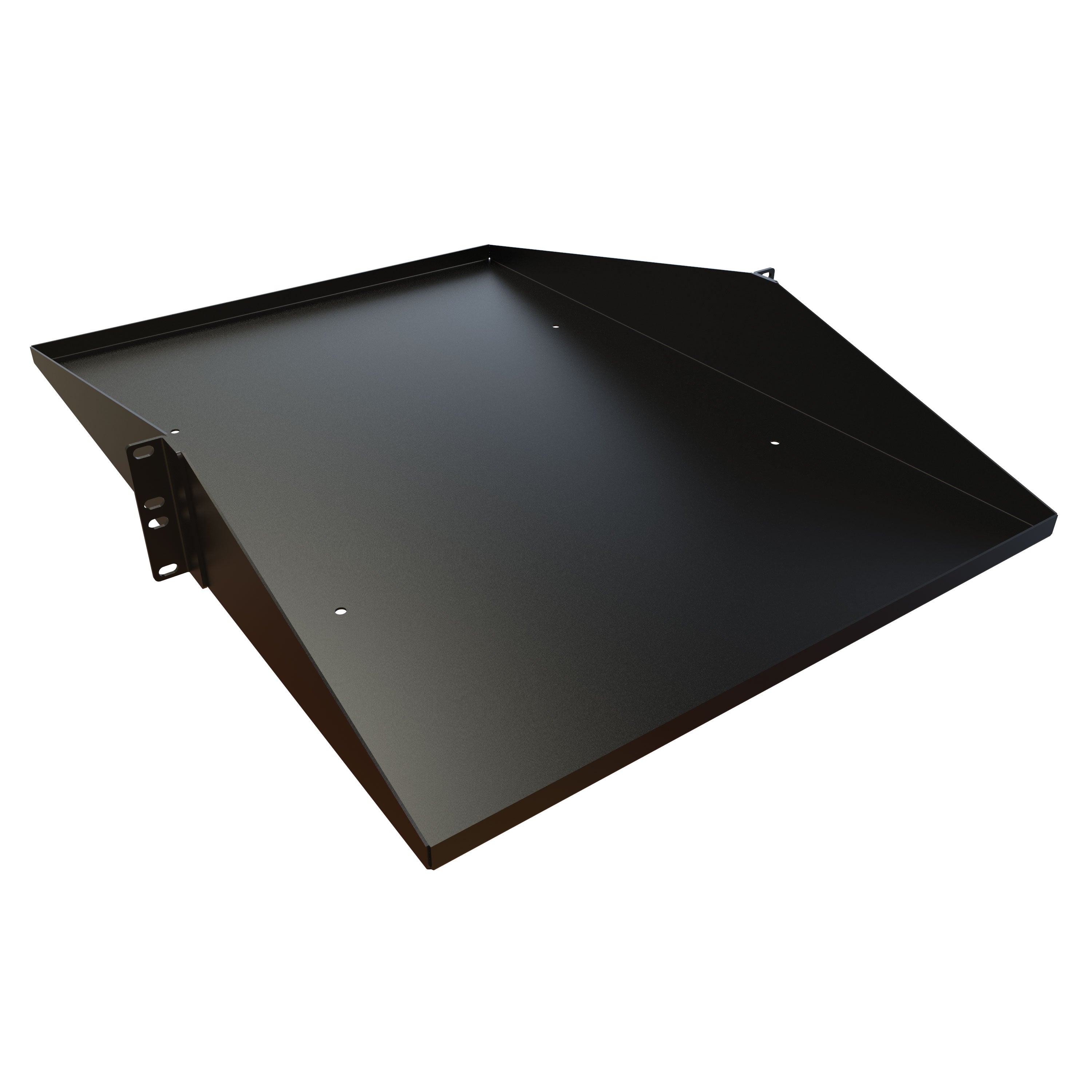

| Short Description | 2U 24IN SOLID CENTERED SHELF |
| Long Description | 2U 24in Depth Solid Centered Rack Shelf - Black - 200 lbs rated |
| Shipping Weight | 12 lbs (5.44 kg) |
| UNSPSC | 43201618 |
| UPC | 623980042008 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
