Description

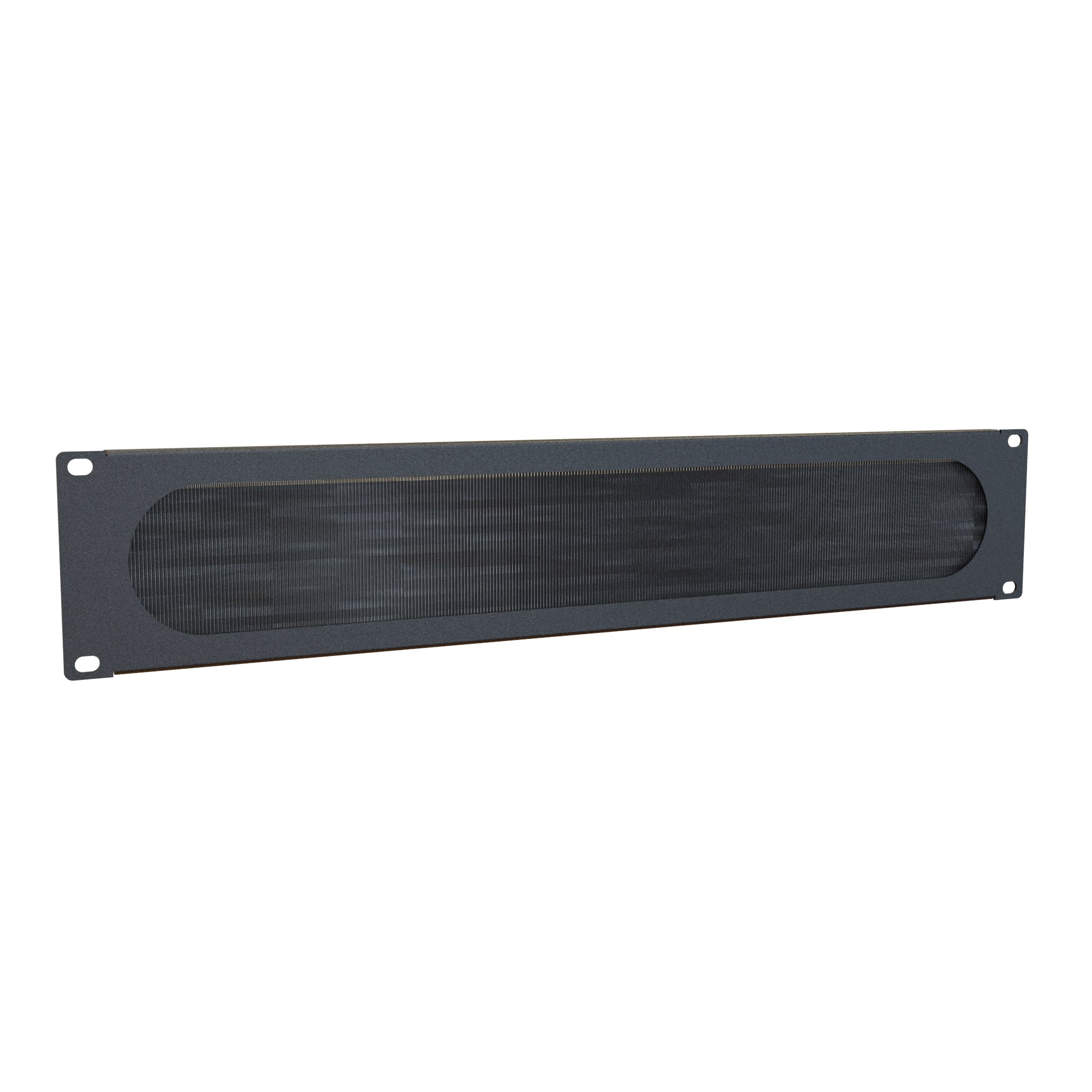

The Brushed Rack Panel (BRP) reduces unwanted airflow inside a rack cabinet while allowing cables to pass through to the reverse side. The BRP includes a cable management tray that reduces cable fatigue and an area to secure cables.
Features
- Constructed of 16-gauge steel.
- Reduces unwanted airflow inside a rack cabinet.
- Allows for cable pass-through.
- Improve the aesthetics of your installation.
- Available in 1U and 2U sizes.
- Includes cable management tray with hook and loop tie-offs.
- Designed to fit standard EIA 19 inch rack mount.
- Finished in smooth RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Accessories
-
Hardware for Rack Mounting Solutions
-
Hook and Loop Convenience Roll
-
Protective Grommet Strip
-
Rack Rail Reducer Panel
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Overall Dimensions | Opening Dimensions | Rack | |||
|---|---|---|---|---|---|---|
| Height | Width | Depth | Height | Width | Units | |
| BRP1UBK | 1.72 | 19.00 | 1.81 | 1.00 | 17.00 | 1U |
| BRP2UBK | 3.47 | 19.00 | 1.81 | 2.38 | 17.00 | 2U |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | BRP2UBK |
| Series | Brushed Panel Horizontal Cable Manager (BRP Series) |
| Short Description | 2U BRUSHED RACK PANEL |
| Shipping Weight | 1.35 lbs (0.61 kg) |
| UNSPSC | 43201618 |
| UPC | 623980785981 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
