Description
Features
- Designed for use with our heavy-duty DNRR and DRZ4 double-tapped two (2) post racks.
- Constructed of heavy-duty 12-gauge steel.
- Use to support heavy chassis or batteries for DC battery array.
- Choice of 19-inch or 24-inch deep.
- The front and rear lips are folded and welded for extra strength and liquid retainer.
- For a similar design that is light-duty and vented, see the DNRM Series.
- Finished in textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- 550 lbs (250 kg) load rating.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America.
Accessories
-
Rack Equipment Installation Tool
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
19 Inch Rack Mounting Shelf
Units shown: inch. Switch units to: mm
| Part No. | Mounting Dimensions | |||
|---|---|---|---|---|
| Rack Units | Height | Width | Depth | |
| BRS2P1919BK | 3U | 5.25 | 19.00 | 19.00 |
| BRS2P1924BK | 3U | 5.25 | 19.00 | 24.00 |
23 Inch Rack Mounting Shelf
Units shown: inch. Switch units to: mm
| Part No. | Mounting Dimensions | |||
|---|---|---|---|---|
| Rack Units | Height | Width | Depth | |
| BRS2P2319BK | 3U | 5.25 | 23.00 | 19.00 |
| BRS2P2324BK | 3U | 5.25 | 23.00 | 24.00 |
What's Inside the Box
| Qty Included | Description | Replacement Part No. |
|---|---|---|
| 1 | Rack Shelf | |
| 4 | Rack mounting brackets | |
| 1 | Assembly Instructions | |
| 8 | 10-32 Keps nut | |
| 16 | 10-32 x 0.5in Assembly screws | |
| 8 | 12-24 x 0.5in Screws |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10275 - DNRMM/U/V SHELF ASS'Y INSTR. |
| Part Attributes | |
|---|---|
| Part Number | BRS2P1919BK |
| Series | Heavy Duty Battery Rack Shelf (BRS Series) |

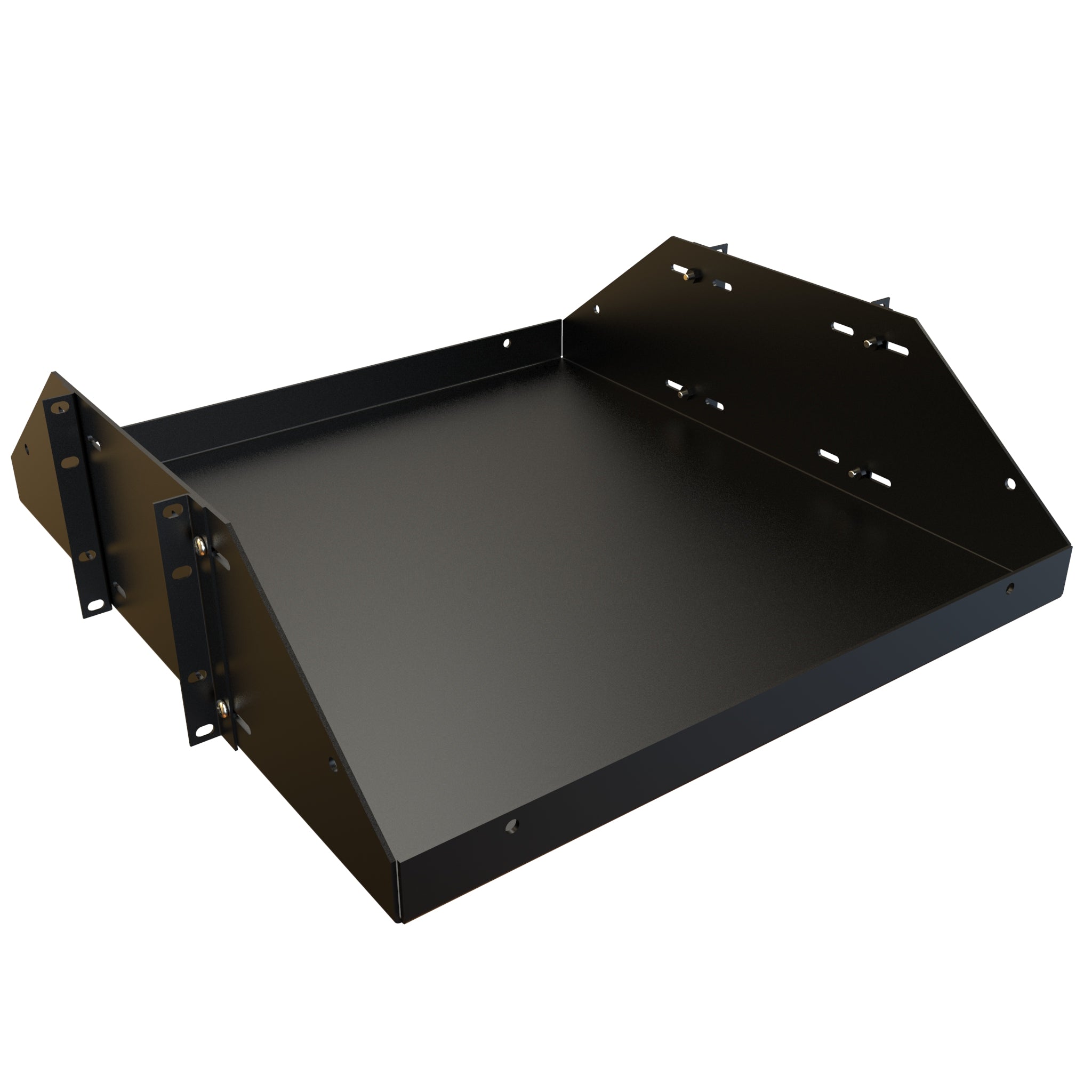

| Short Description | 3U 19W 19D BATTERY SHELF |
| Long Description | 3U 19in Mounting Battery Shelf 19in Deep, 550lbs rated |
| Size H x W x D |
5.25 in x 19 in x 19 in (133 mm x 483 mm x 483 mm) |
| Shipping Weight | 20 lbs (9.07 kg) |
| UNSPSC | 43201618 |
| UPC | 623980926551 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
