Description
Features
- 14-Gauge steel construction.
- Movable side brackets allow mounting inside or outside rack at 4 different depths
- Designed mainly for open relay racks - works panel mounted on any rack
- Choice of 16-inch or 20-inch deep.
- Available in either 19-inch rack panel width
- Knockdown design ships unassembled for easy handling and shipping protection.
- 275 lbs (125 kg) load rating.
- Finished in rugged textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH compliant.
- Manufactured in North America.
Accessories
-
Hardware for Rack Mounting Solutions
-
Rack Rail Reducer Panel
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10020 - MISC - ENCLOSURE DETAILS |
| BUL10274 - DNRMA SHELF ASS'Y INSTR. |
| Part Attributes | |
|---|---|
| Part Number | DNRMA1920BK1 |
| Series | Adjustable Rack Shelf (DNRMA Series) |
| Short Description | 3U 19W 20D ADJ SHELF |

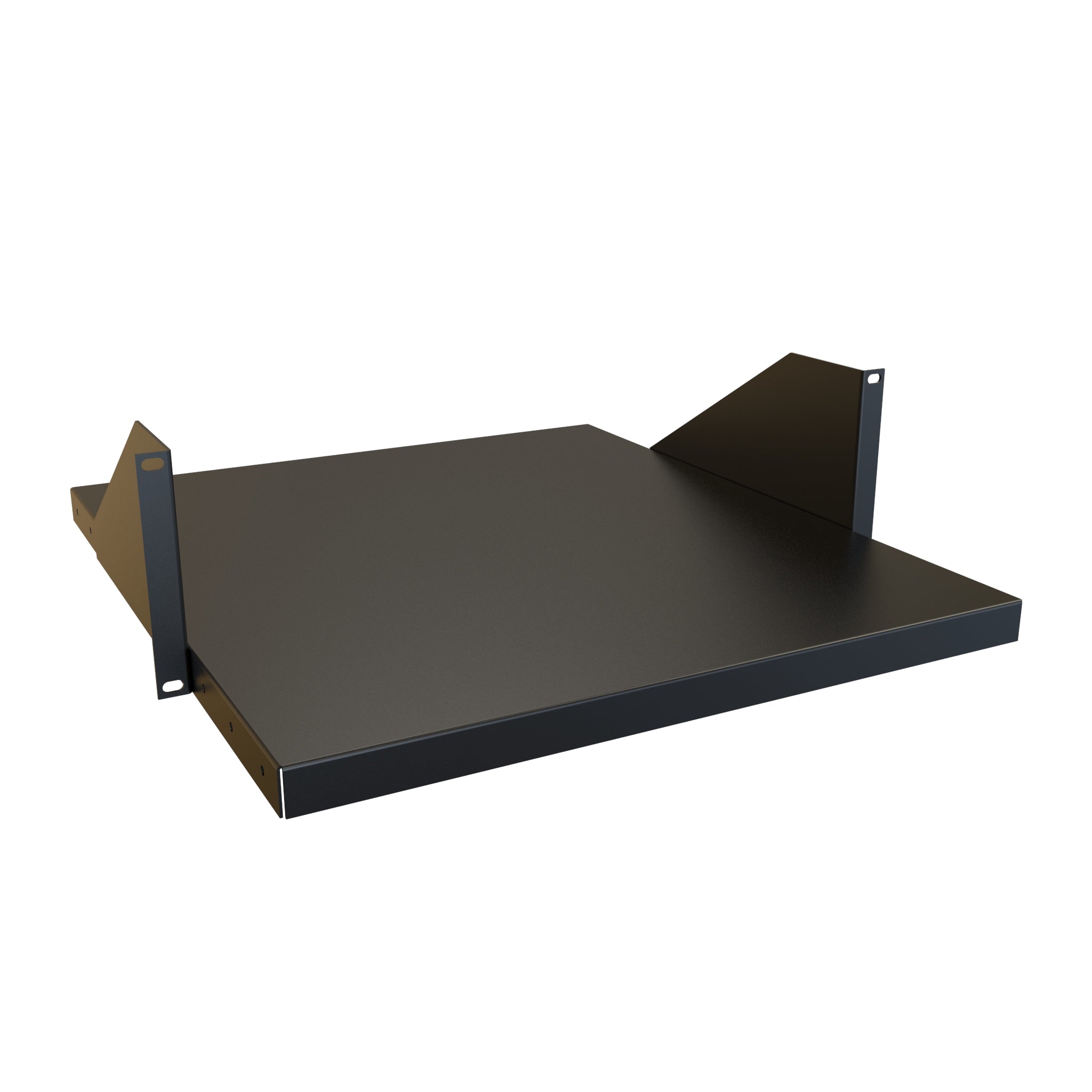

| Long Description | 3U Cantilever Solid Adjustable Shelf - 20" dp - 275 lbs rated |
| Size H x W x D |
5 in x 19 in x 20 in (127 mm x 483 mm x 508 mm) |
| Shipping Weight | 10.3 lbs (4.67 kg) |
| UNSPSC | 43201618 |
| UPC | 623980965109 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
