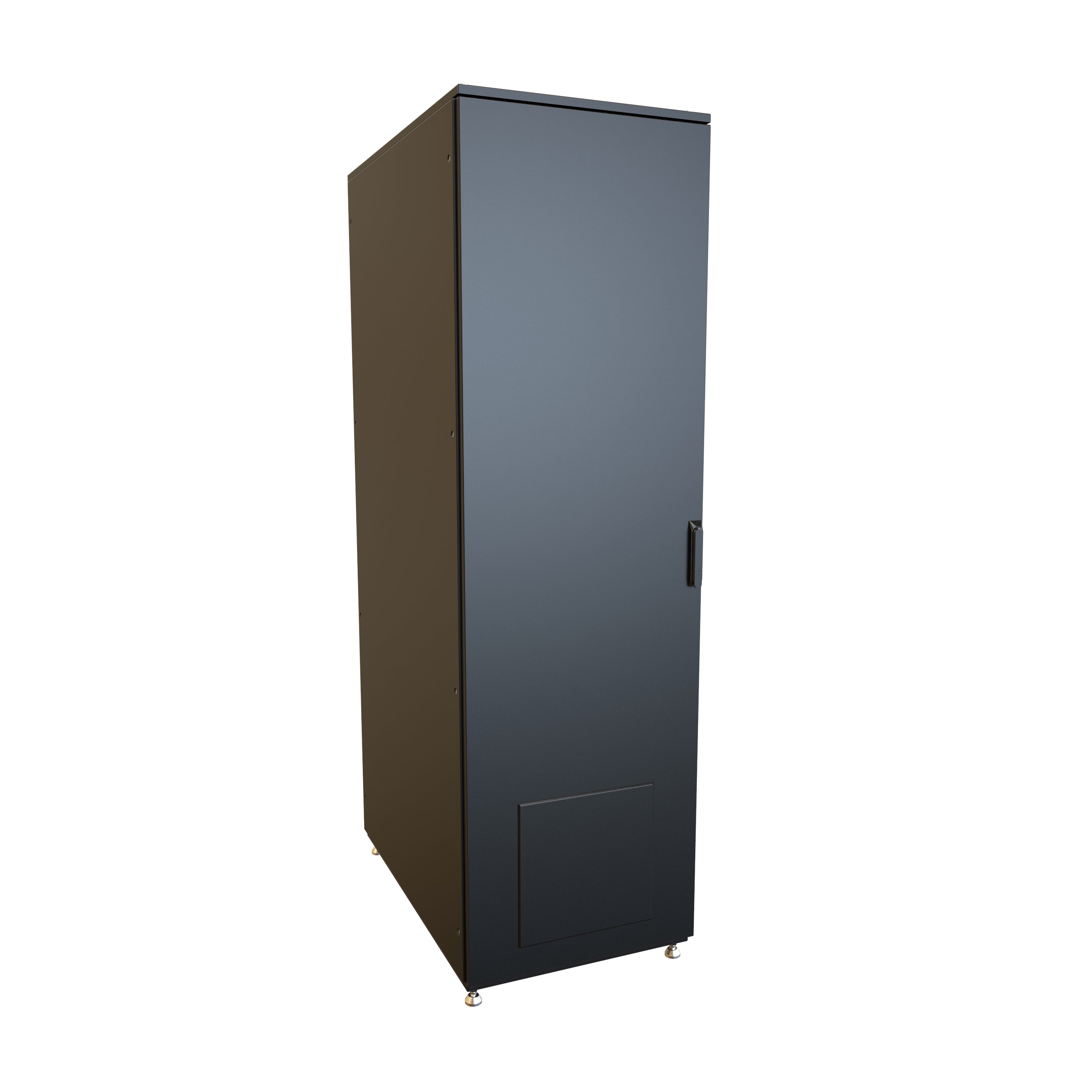

Hammond 42U 23.6W 39.4D NEMA12 CABINET

The Hammond HDME Series is a heavy-duty, NEMA Type 12 rated server cabinet designed to protect mission-critical equipment in harsh industrial environments. Built from rugged welded steel with a load capacity of up to 3,000 lb (1,360 kg), it provides reliable protection against dust, dirt, and moisture while offering flexible cable management and optional cooling solutions. Available in multiple heights, the HDME is ideal for manufacturing, utilities, and other non-climate-controlled IT spaces where standard racks simply aren’t enough.

Features

• NEMA 12 Rated – Protection from dust, dirt, and dripping liquids.
• Industrial & IT Ready – Perfect for factory floors, warehouses, utilities, and other harsh environments.
• Sealed Construction – Gasketed doors & panels for maximum protection.
• Doors open to 135°. Window door option available.
• Optional Cooling Solutions – Fan and filter kits for passive or forced airflow.
• Reinforced top panel with provisions for optional HDMELB lifting eye bolts.
• A black, cellular neoprene gasket provides tight and secure seal protection from moisture, dust and air contaminants.
• Available in 42U and 47U mounting heights. 29U available as a special order.
• Available 24" wide. 31.5" is available as a special order.
• Available in 31.5" and 39.37" overall depths.
• Optional plinth has removable covers on the side.
• Includes adjustable depth mount rails.

Specifications

• The cabinet frame, doors and side panels are constructed in 14-gauge mild steel.
• Square hole 19" mounting rails are constructed of 12-gauge mild steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• Heavy-Duty Strength. Load tested to 3,000 lbs (1,360 kg) static load rating.
• NEMA Rated for UL 508A Type 12 and CSA Type 12. Complies with NEMA Type 12 and IEC 60529 IP54.
• Lift-tested to 900 lbs (408 kg) of equipment load when used with our HDMELB lifting eye bolts.
• Grounding studs are provided on the frame, side panels, and doors. The front and rear studs on the cabinet frame conform to PET.
• Finished in textured RAL9005 black powder coat. Also, available in textured light gray upon request.
  • Complies with the Greenguard guidelines for indoor air quality.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Included Components

• Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
• Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
• Two (2) solid removable side panels.
• Two (2) solid doors with
  • One (1) installed gland plate
  • One (1) die-cast locking swing handle
  • Two (2) door keys
• One (1) solid top panel.
• Two (2) bottom panels with gland plates
• Four (4) levelling feet
• Starter pack of CAGKIT1032-50 screws

We're looking at adding a NEMA 4 and 4X version of the HDME. Click here to provide your input.
