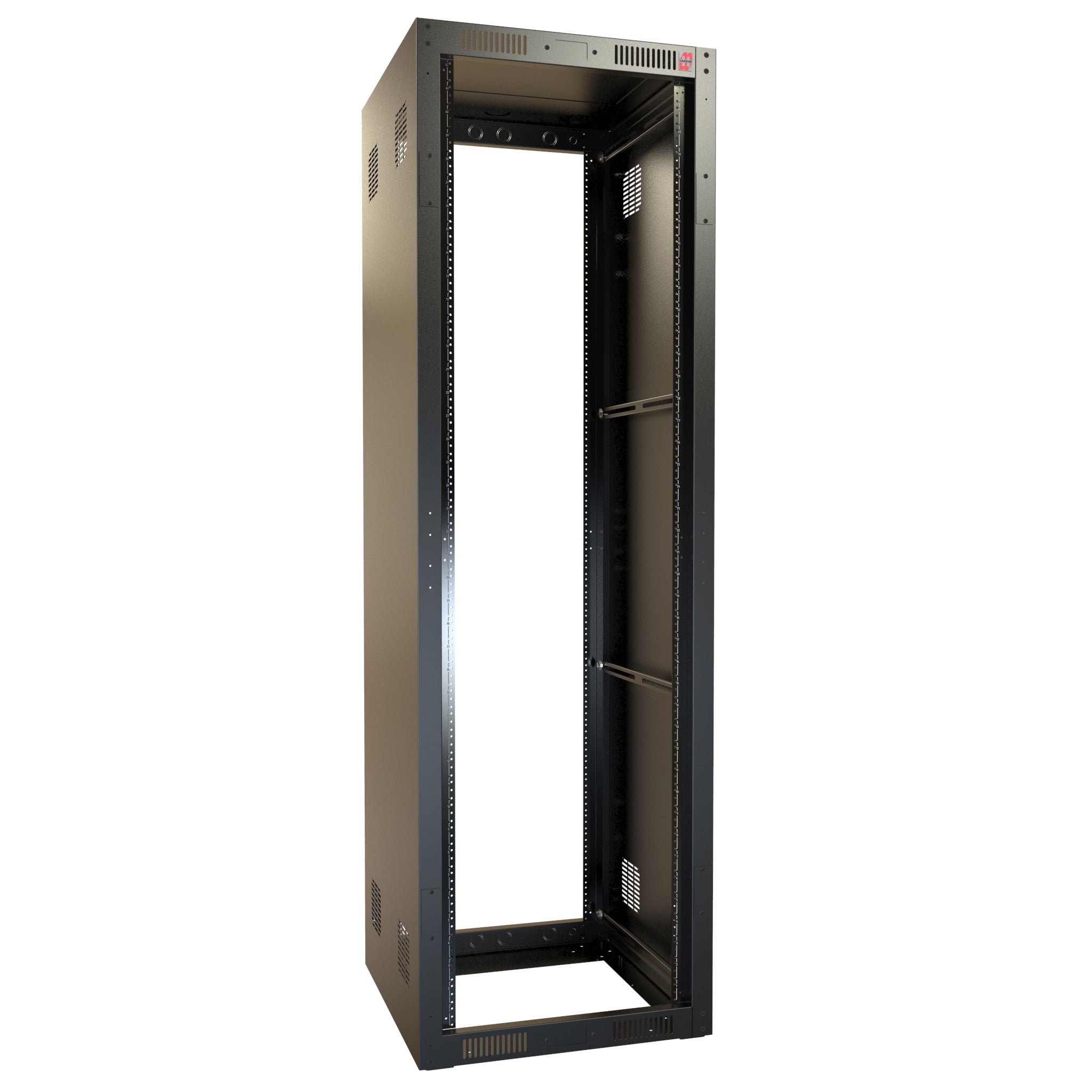

Hammond 42U 24W 25D KNOCKDOWN CABINET

We designed our RCK Cabinet series for your Homelab and Pro-AV applications. We've included numerous unique features, such as bonus rack units, compatibility with standard hardware components, and more. Every RCK is self-squaring and takes just minutes to assemble. In addition, each cabinet has mounting points for our easy four-screw field-installable doors.

Features

• Available in six (6) heights and two (2) depths.
• Optional locking doors are constructed in 16-gauge steel. The door(s) install in minutes and are available in solid, vented, and acrylic window options.
• Doors include a locking swing handle compatible with electronic locking handles.
• Constructed in 16-gauge steel and includes vents for optional fans on the cabinet sides.
• Self-squaring design ships un-assembled (some assembly required).
• Includes two (2) pairs of adjustable depth 10-32 threaded EIA-compliant rack rails.
• The cabinet's top and bottom rear feature a removable conduit knockout 1U panel. The top rear can be a bonus 1U rack mounting point for equipment or rack accessories.
• The front of the cabinet includes a steel plate at both the top and bottom. When removed reveals a Decora® compatible mounting point.
• Numerous cable tie-off points are included for front-to-rear cable management.
• The cabinet top includes solid top panel and conduit knockouts for additional cable entry.
• The cabinet base also includes mounting holes for optional casters or leveling feet.
• The top and cabinet bottom includes an opening compatible with interchangeable "1923" sized top panels.
• Cabinet ganging kit included.
• Includes 50-pack of SCREW1032-50 screws.

Specifications

• The cabinet frame is constructed in 16-gauge steel.
• Mounting rails are constructed in 12-gauge steel.
• The top-Rear of the cabinet included 3.00", 2.50”, and 2.0” knockouts for the conduit.
• Rear 1U panels include 1.375", 1.125", and 0.675" knockouts.
• Include multiple bonding and grounding points.
• 1,050 lbs (476 kg) static load rating. Rolling caster load rated to 525 lbs (238 kg)
• Finished in textured RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Gallery

Accessories

• Leveling Feet
• Locking Door
• Rack Mount Basic PDU
• Rack Shelves
• Rack Panels
• Vertical Cable Tray
• 10 AWG Bonding Wire Kits
• Protective Grommet Strip
• Latch Replacement Kits
• Rack Shelf Slide Block
