Description

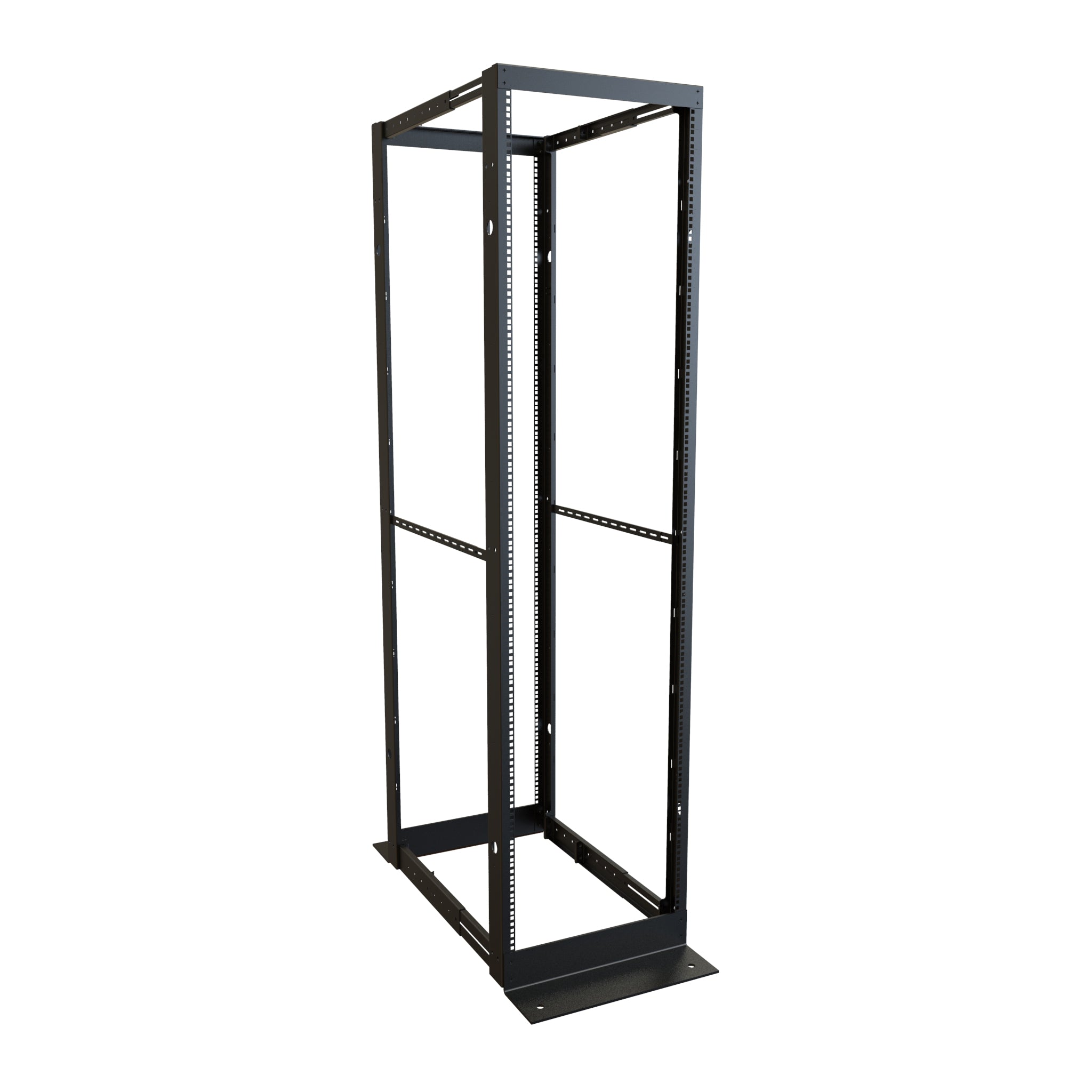

The Hammond DC4R, Open Rack series, is one of the most economical solutions to house IT equipment in wiring closets or data centers. When the wiring closet is locked and accessed by a limited number of people, full cabinets with locking doors and side panels may not be required, resulting in significant cost savings. If you're building a Homelab, the DC4R24 is ideal.
Features
- Available in 24U and 44U mounting heights.
- Self-squaring design ships un-assembled (some assembly required).
- For 44U height, add optional third or fourth pair of rails DC4RPR44 to provide additional adjustable mounting depths.
- Optional solid side panels for added security.
- Two (2) pairs of integrated 10-32 ground studs at the rack's front and rear. Stud pairs are conveniently spaced 5/8” apart and located across from each other inside the rail channel. For added convenience, two (2) pairs are located near the top of the rack, while the others are near the bottom.
- Rail depth L-bracket restricts the installer from over-extending the rack. This ensures the integrity of the rack.
- One (1) set of two (2) horizontal cable manager bars. Additional cable manager bars are available by ordering part number DC4RSHCM.
- Two (2) pairs of 19” mounting EIA-compliant rails.
- Square hole rail version ships with a 50-pack of screws and cage nuts CAGKIT1032-50.
- 10-32 Threaded rail version ships with a 50-pack of screws SCREW1032-50.
- Includes marked rack unit dividers to aid in equipment mounting.
Specifications:
- Rack rails are constructed in 12-gauge welded steel. Base angles are constructed in 1/4" steel plates.
- Finished in smooth RAL9005 black powder coating. Complies with the Greenguard guidelines for indoor air quality.
- 2,000 lbs (907 kg) static load rating.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS and REACH Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Gallery
Accessories
-
Server Rack Finger Double-Sided Cable Manager
-
Server Rack Finger Cable Manager
-
Server Rack Finger Vertical Cable Manager
-
Server Rack Cable Manager
-
Vertical Cable Manager Extensions
-
Horizontal Ring Cable Manager
-
Horizontal Finger Cable Manager
-
Horizontal Hinged Cable Manager
-
Adjustable Depth Front-To-Rear Cable Manager
-
Rack Panels
-
Universal Rack Shelf
-
Adjustable Server Rack Shelf
-
Centered Rack Shelf
-
Rack and Cabinet Stem Casters
-
Adjustable-Depth Rackmount Angle Bracket
-
Open Frame Rack and Rack Cabinet Joining Kit
-
Rack Isolation Kit
-
Mounting Screw and Cage Nut Combo-Pack
-
Bonding and Grounding
-
Bolt Down Kit
-
We Manufacture PDUs and Outlet Strips
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10328 - DC4R SERIES |
| BUL10330 - BUL - DC4R CABLE BAR INSTR |
| DC4R Revit/BIM |
| Part Attributes | |
|---|---|
| Part Number | DC4R44 |
| Series | 4-Post Open Frame Rack (DC4R Series) |
| Short Description | 44U 4-POST ADJ DPTH 24-36 RACK |
| Long Description | 44U 4-Post Rack Kit (24" to 36" overall depth) |
| Size H x W x D |
83.13 in x 20.5 in x 36 in (2,112 mm x 521 mm x 914 mm) |
| Shipping Weight | 98 lbs (44.45 kg) |
| UNSPSC | 43223308 |
| UPC | 623980040226 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 44 |
| Rack Type | Open Frame Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with 10-32 Cage Nu |
