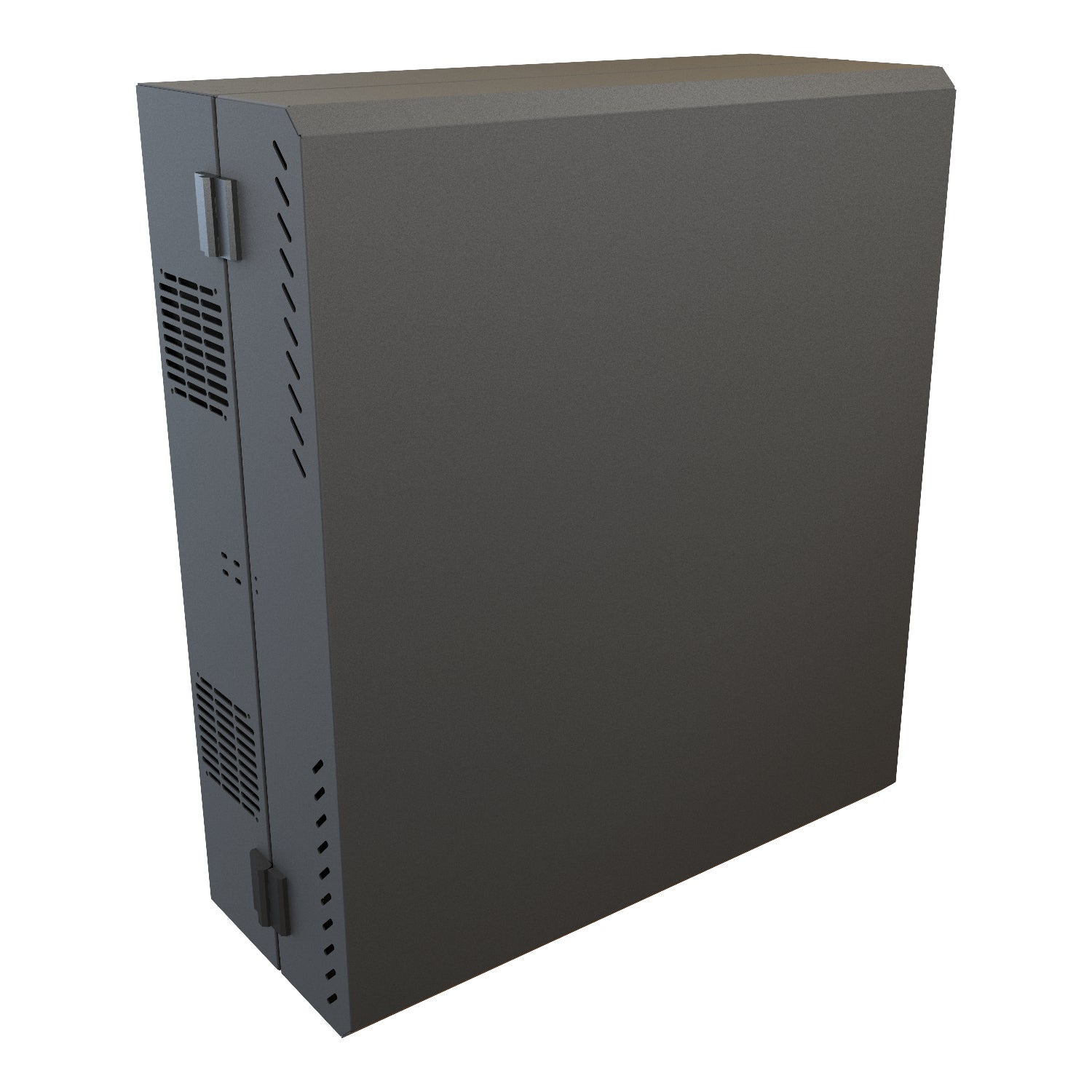

Hammond 4U 31D SLIM WALL CABINET

Features

• Available in two (2) heights up to 41 inches of usable space and three (3) fixed rack unit options.
• Each cabinet ships with one (1) pair of 2U 180-degree rotating mounting rack rails and one (1) pair of adjustable rack rails.
  • Fixed rack mounting units are available in 4U, 6U, and 8U.
  • Fixed rails mount at five different angles, providing equipment mounting options.
  • Includes starter pack of SCREW1032-25 screws.
• The locking hinged front door includes side venting for airflow.
  • The door and latch can be reversed to swing left to right.
  • The rear wall mounting section features conduit knockouts for 3.00”, 2.00”, 1.38”, and 1.12” located top and bottom.
• Side venting is designed for optional 4in (120mm) fans for active cooling.
• Generous cable management lances are located on the rear section.
• Heavy-duty keyhole for wall mounting.
• Large knockouts in the rear for cable access.

Specifications

• The body and rear section are constructed of 16-gauge steel.
• Rack rails are 14-gauge steel with 10-32 tapped EIA-compliant mounting rails.
• The body includes dedicated bonding points, providing the option of drill-less mounting of electrical 4x2 utility boxes.
  • Grounding kit sold separately - GRDKIT01 or GRDKIT04.
• UL Listed 2416 load rated to 200 lbs (90 kg).
  • Wall Mount Racks are rated based on cabinet's weight plus the desired weight capacity to a two (2x) multiplier. 100lbs (Cabinet Weight) + 200lbs (Cabinet Load Capacity) x 2 = 600lbs. In this case, the Static Load is 600 lbs, and the UL2416 Load Rating is 200lbs.
• The body and door are finished in rugged sand-textured RAL 9005 black or textured RAL 7035 light gray powder paint. The rack rails are finished in smooth white powder paint. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Upgrade the cabinet to be dust-resistant with the HWCF Cabinet Sealing and Filter Kit.
Need an Outdoor Rating? Click here.

Experience the unmatched functionality of the HLP Series Low-Profile Wall Mount Cabinet from Hammond, designed specifically for tight spaces while delivering excellent performance. Made from durable 16-gauge steel, the HLP cabinet features a sleek black powder coat finish, enhancing aesthetics while providing long-lasting durability. With various sizes available (4U, 6U, and 8U), this cabinet includes a 2U 180-degree rotating mounting rail for versatile configurations and easy access to your gear. Its flexible design incorporates side venting and options for installing fans, promoting optimal airflow to keep your equipment cool. Additionally, generous cable management lances facilitate a tidy setup. Ideal for commercial applications and home offices alike, the HLP Series is the perfect choice for maximizing space without compromising on strength or style.
