Description
Features
- Constructed with UL Listed components.
- Mounting hardware is included for fastening to either 1/4-20 or 10-32 studs.
- Includes stick-on grounding symbol for compliance.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America.

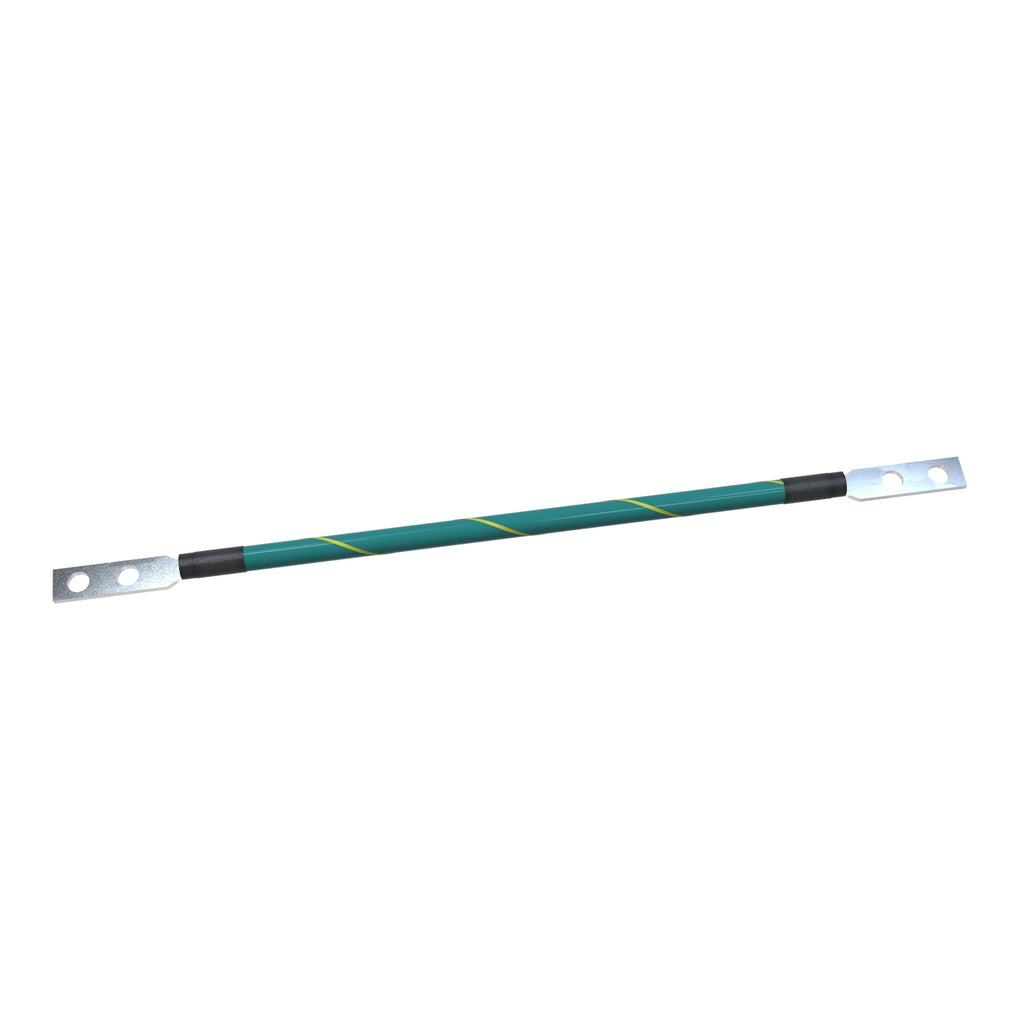

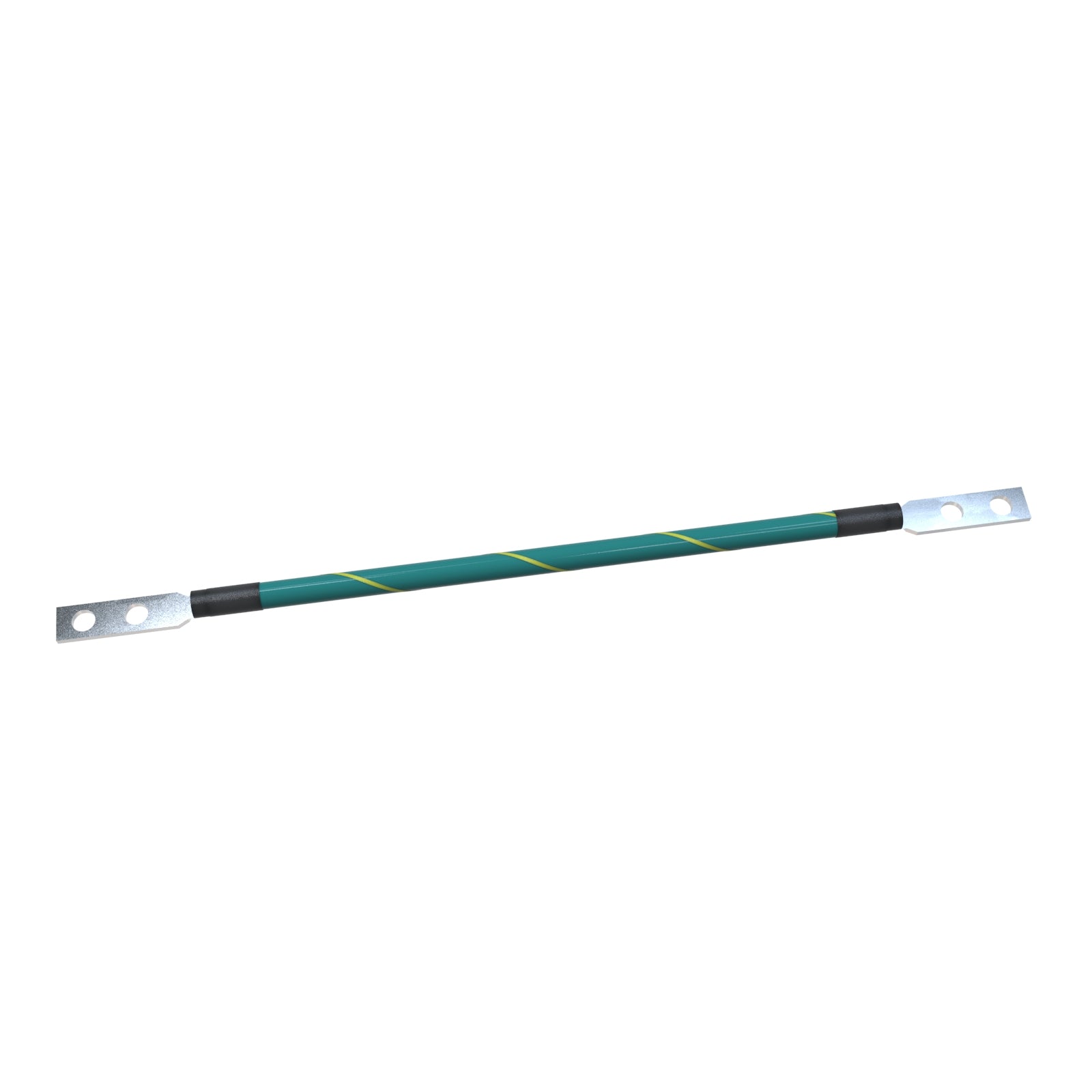

#6 AWG Bonding Wire Kit Features:
- #6 AWG 266 strand copper, MTW/TEW UL1283 type, Green-insulated with a yellow stripe.
- Both ends feature two (2) hole compression lugs with bolt holes that are 0.281" (7.1 mm) in diameter and spaced 5/8" (15.9 mm) apart.
#10 AWG Bonding Wire Kit Features:
- #10 AWG Green-insulated, stranded copper cable with a yellow stripe.
- One (1) 0.256" stud hole ring terminal is crimped on either end to offer a bolt-on option for grounding network equipment.
As seen on Linus Tech Tips. Click here to watch video.
Gallery
Accessories
-
Thread-Forming Bonding Screw
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | BWK6A10 |
| Series | Bonding Wire Kits (BWK Series) |
| Short Description | 6 AWG x 10 INCH BOND WIRE KIT |
| Long Description | Rack Cabinet Ground Kit |
| Shipping Weight | 0.27 lbs (0.12 kg) |
| UNSPSC | 46182103 |
| UPC | 623980773827 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
