Description
Features

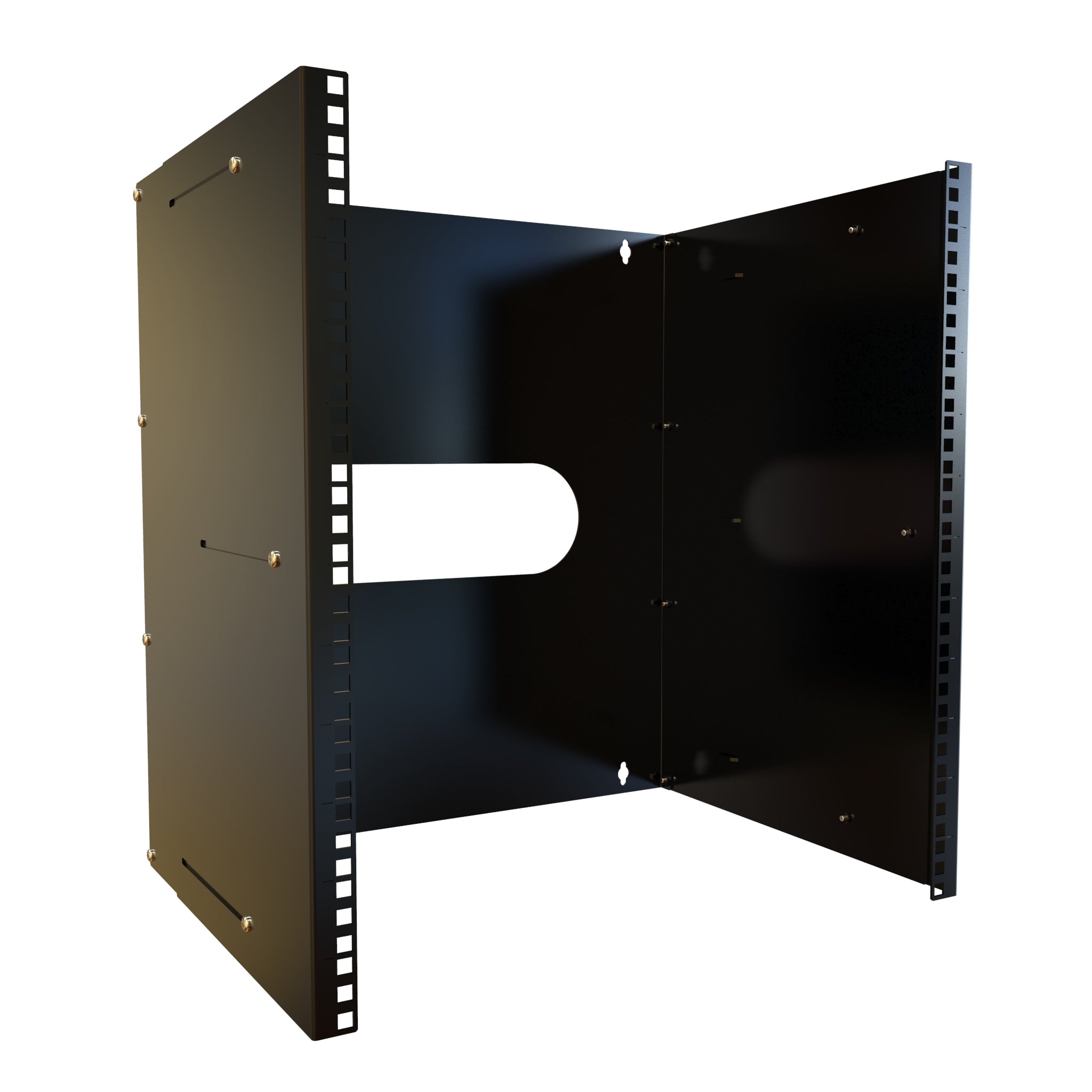

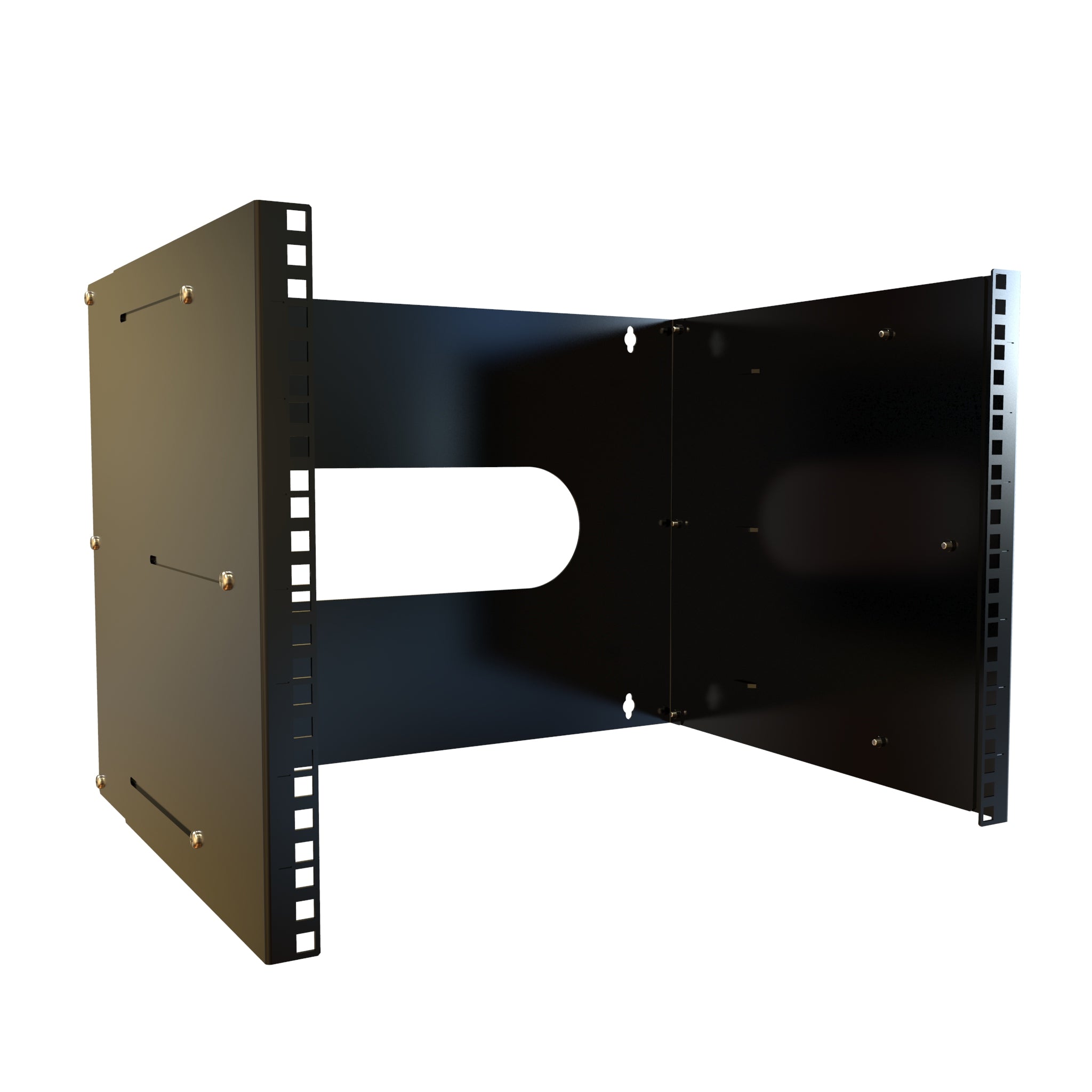

- Available in 6U, 8U and 12U mounting heights.
- Adjusts in depth from 15 to 21 inches with ease so there is no need to disassemble the whole rack to adjust the depth.
- Rear cable access with multiple tie points for cable management.
- Self-squaring design ships un-assembled (some assembly required).
Specifications
- Constructed in 14-gauge steel.
- 19" rack mount punched square hole mounting rails are constructed in 14-gauge steel and include rack unit indicators.
- 24-pack of M5 mounting hardware included.
- 95 lbs (43 kg) static load rating.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Accessories
-
Cable Managers
-
Rack Panels
-
Universal Rack Shelf
-
Keyboard & Equipment Rack Shelf
-
Hook and Loop Convenience Roll
-
Hardware for Rack Mounting Solutions
-
We Manufacture PDUs and Outlet Strips
-
Ground Stud Kit
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| Part Attributes | |
|---|---|
| Part Number | RB-AWR6 |
| Series | Adjustable Depth Wall Rack (RB-AWR Series) |

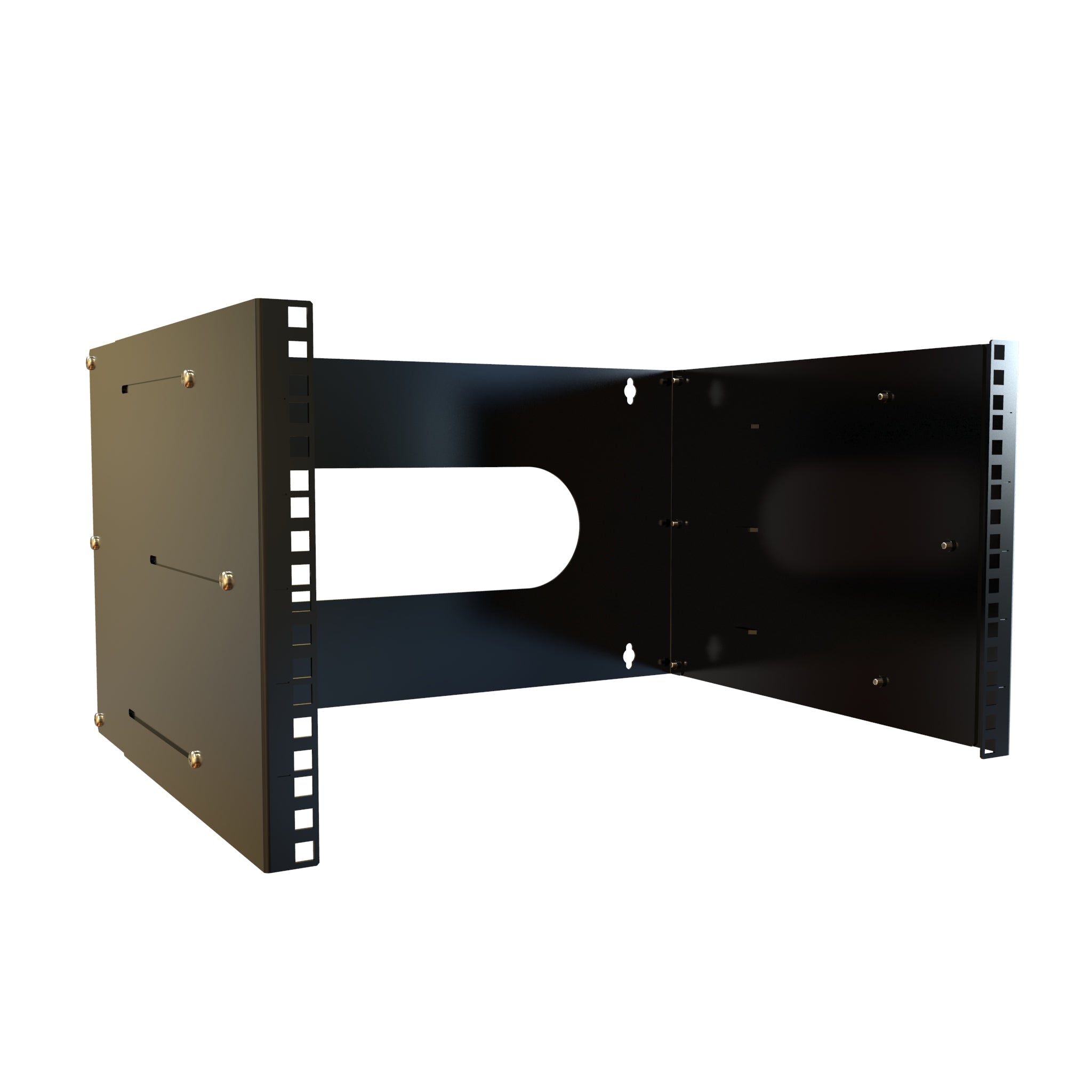

| Short Description | 6U ADJUSTABLE WALL RACK |
| Size H x W x D |
10.5 in x 19 in x 15 in (267 mm x 483 mm x 381 mm) |
| Shipping Weight | 16.4 lbs (7.44 kg) |
| UNSPSC | 43223308 |
| UPC | 623980470597 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 6 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with M5 Cage Nuts |
