Description
Features
- Available in 4U and 8U mounting heights. Both sizes include 3.5" (2U) of space for non-rack mounting equipment.
- A twelve (12) inch depth accessory shelf is included.
- The rails vary in depth from 12" to 18" with ease, eliminating the need to disassemble the entire rack.
- Multiple tie points for cable management and rear cable access.
- Self-squaring design ships un-assembled (some assembly required).
Specifications
- Constructed in 14-gauge steel.
- The 14-gauge steel mounting rails are threaded 10-32 and contain rack unit indicators.
- SCREW1032-25, 25-pack of 10-32 mounting hardware included.
- 100 lbs (45 kg) static load rating.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Videos
Accessories
-
Universal Rack Shelf
-
Cable Managers
-
Rack Panels
-
Hook and Loop Convenience Roll
-
10-32 Mounting Hardware
-
We Manufacture PDUs and Outlet Strips
-
Ground Stud Kit
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL86723 - APBS INSTRUCTION SHEET |
| Part Attributes | |
|---|---|
| Part Number | APBS198UBK |
| Series | Adjustable Depth Wall Rack with Shelf (APBS Series) |

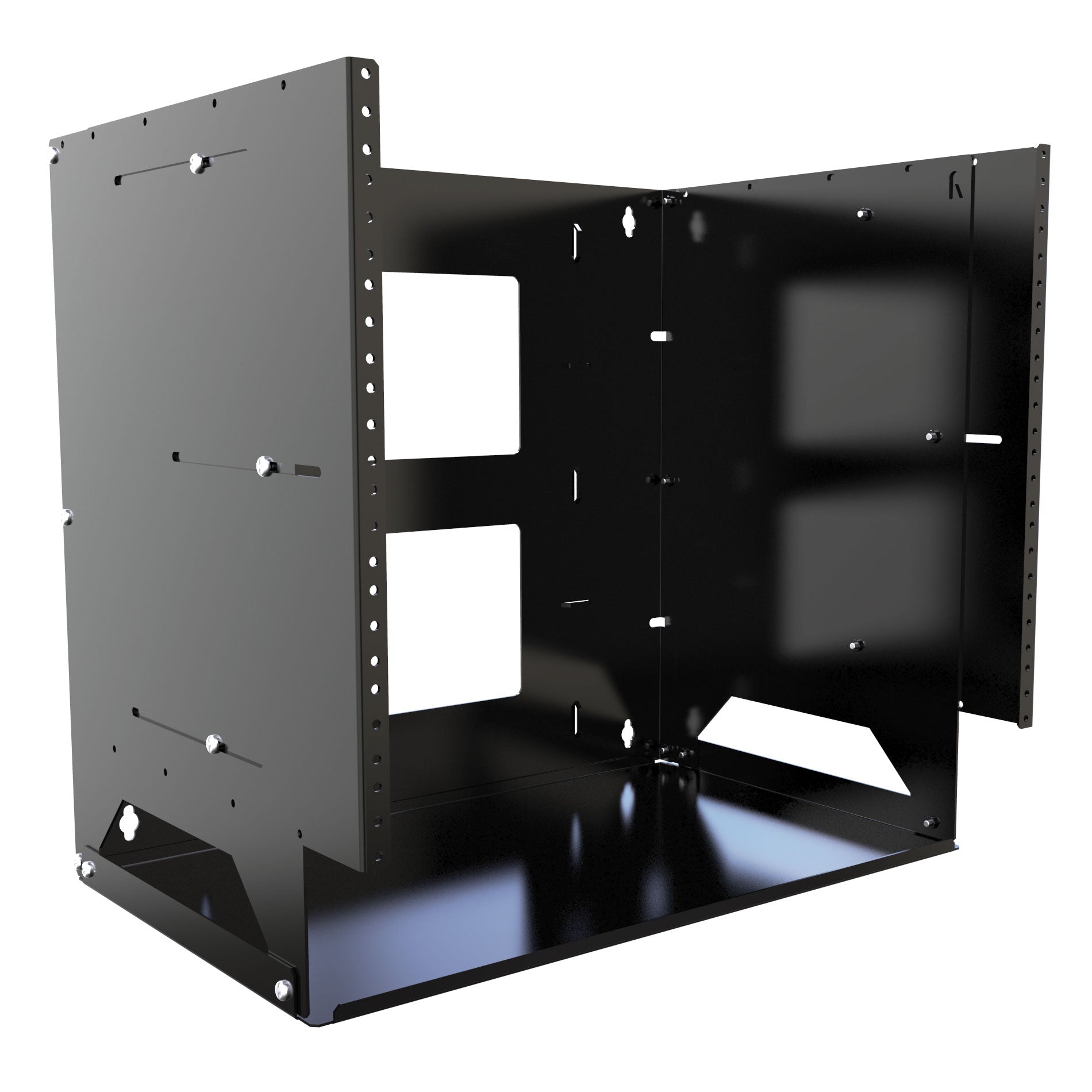

| Short Description | 8U ADJ WALL RACK WITH SHELF |
| Long Description | Adjustable Wall Bracket w/ shelf - 8U w/ depth 12"-18" |
| Size H x W x D |
17.5 in x 19.25 in x 18 in (445 mm x 489 mm x 457 mm) |
| Shipping Weight | 25.4 lbs (11.52 kg) |
| UNSPSC | 43223308 |
| UPC | 623980525075 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Rack Units | 8 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
