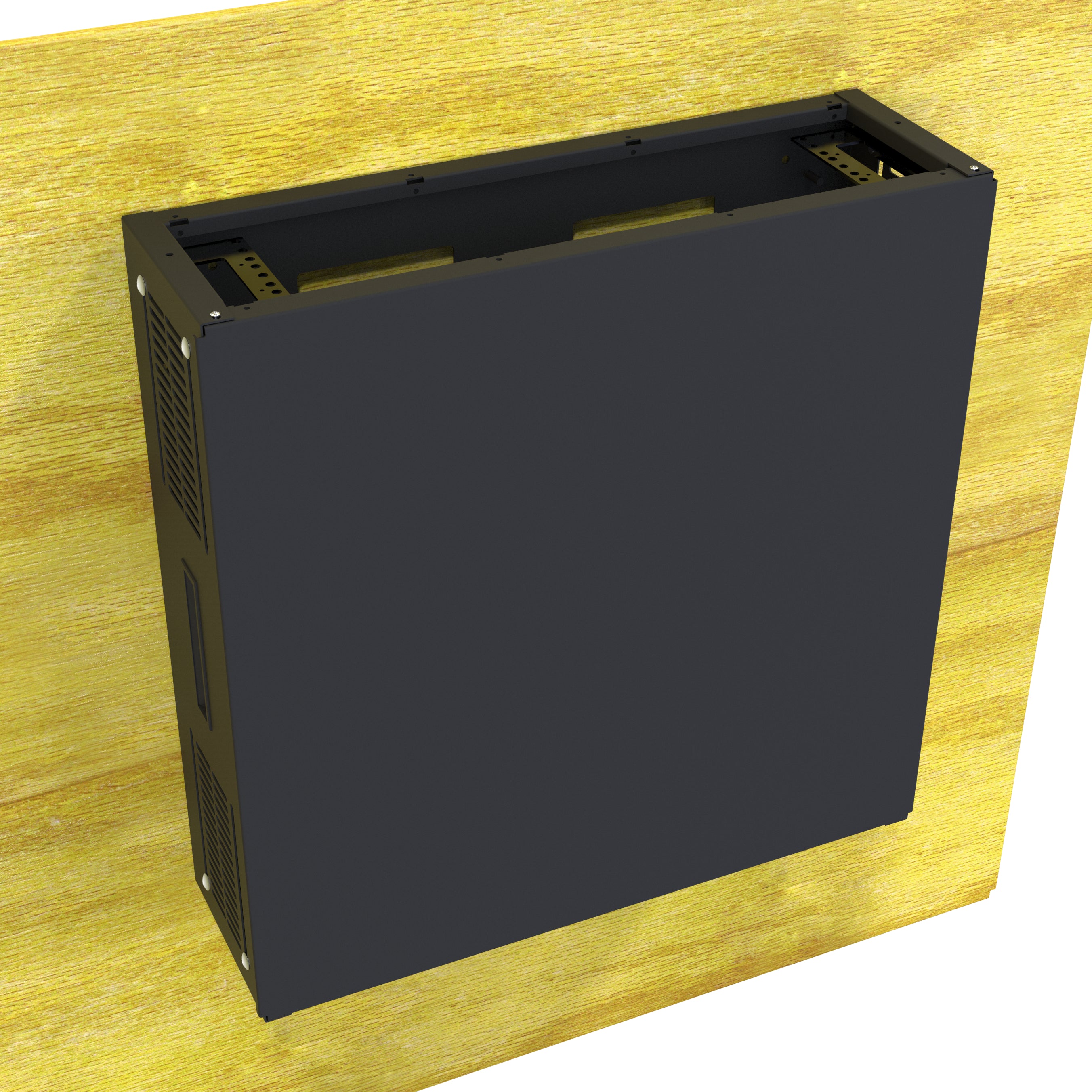

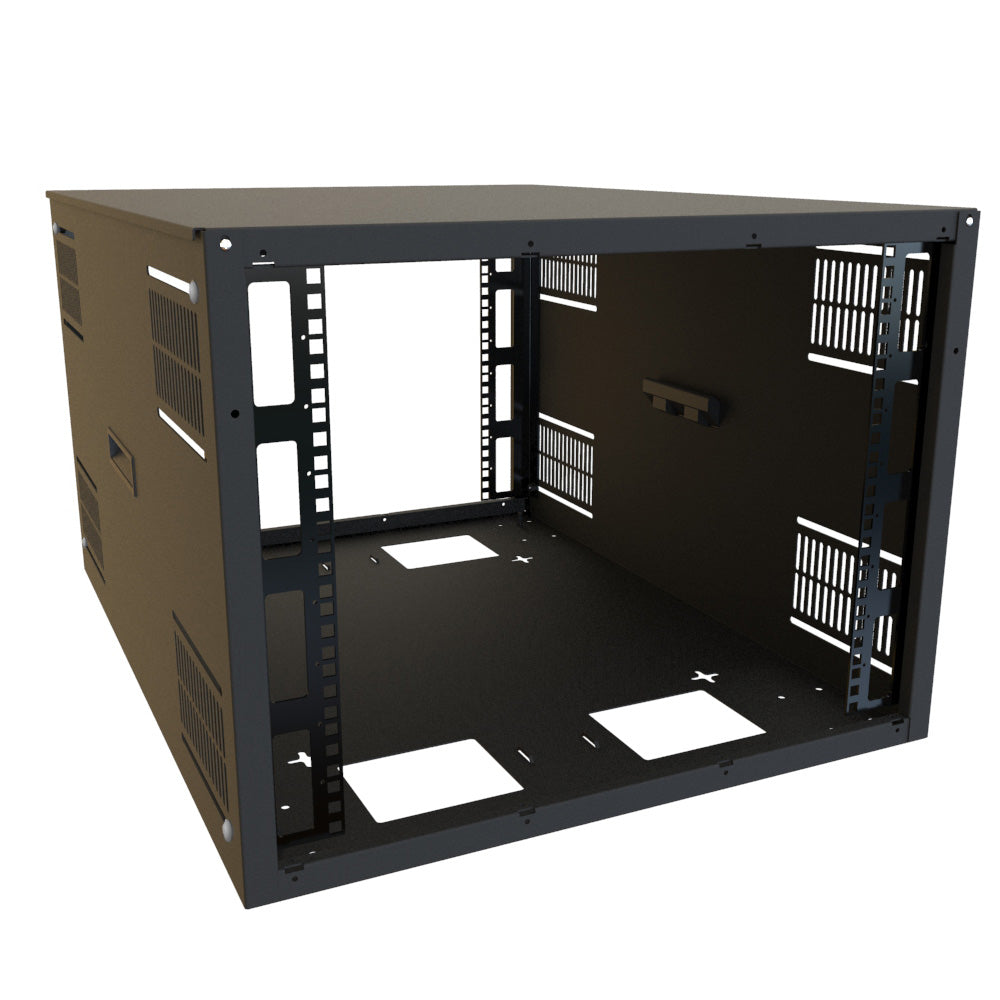

Hammond 9U 24W 31.5D MULTI-USE CABINET

Features

• Available in 3U, 6U and 9U mounting heights.
• Available in 17.5", 24.5", 31.5" and 36" overall depths.

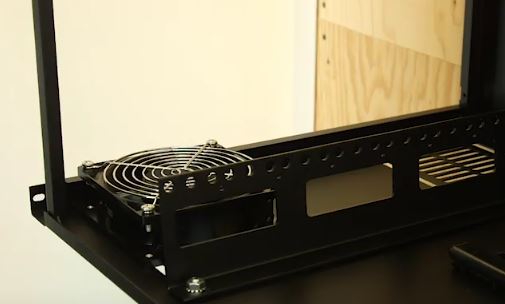

• 19" Mounting rail slots allow for adjustable depth rails and/or optional fan installation.
  • Mounting rails are easily removed for non-rack mounting equipment.
  • Starter pack of CAGKIT1032-10 screws and cage nuts included with 3U units or CAGKIT1032-50 screws and cage nuts included with 6U & 9U units.
• Removable cover panel for ease of equipment installation.
• Four (4) cutouts are included, which are ideal for mounting above an electrical receptacle and/or cable entry.
• Interior cable management lances.
• Removable plastic handles for side mounting storage.
• Optional surface mounted doors with quarter-turn lock and end cap available.

Specifications

• Cabinet frame, removable cover and doors constructed in 16-gauge steel.
• Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are finished in smooth black powder paint.
• Suggest static load rating.
  • Wall Mount (Rack Mounted) up to 150 lbs (68 kg).
  • Wall Mount (Rails removed) up to 50 lbs (22 kg).
  • Ceiling/ Under Desk Mount up to 150 lbs (68 kg).
  • Freestanding (with or without casters) up to 800 lbs (362 kg).
• Grounding studs are provided on the frame.
• Finished in sand textured RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Optional Accessory Features

• Locking Vented Door includes a quarter turn-key lock. The 63% perforation provides airflow for either the front and/or rear of the frame.

• Locking Solid Door includes a quarter turn-key lock.

• Locking Cable/Fan Door includes two openings for rear cable entry that maintain security while allowing cables to enter the cabinet. The door also includes laser knockouts for optional fan kits.

• Conduit/Fan Panel mounts directly to either end of the cabinet and included conduit knockouts 2.5”, 2.0”, 13/18”, 13/4”, 11/8” and/or 7/8”. Also includes knockouts for optional fan kits

The SDC Series Wall or Floor Rack Cabinet from Hammond is your ideal solution for secure and efficient equipment storage. Designed for versatility, this cabinet accommodates various mounting options. The cabinet includes removable mounting rails for additional depth adjustment and features cable management lances and cutouts for easy installation and organization. With options available in 3U, 6U, and 9U, you can tailor the SDC cabinet to fit your specific equipment requirements. Whether you're setting it up in an office, server room, or workshop, the SDC Series provides a reliable, stylish, and functional mounting solution for all your rack-mount needs.

Accessories

• Cable Managers
• Rack Panels
• Magnet Panel Cover
• Universal Rack Shelf
• Heavy Duty Cooling Fan Kits
• RMU Label Kit (Set of 2)
• 10-32 Mounting Hardware
• We Manufacture PDUs and Outlet Strips
• Rack and Cabinet Caster Set
• Ground Stud Kit
