Description

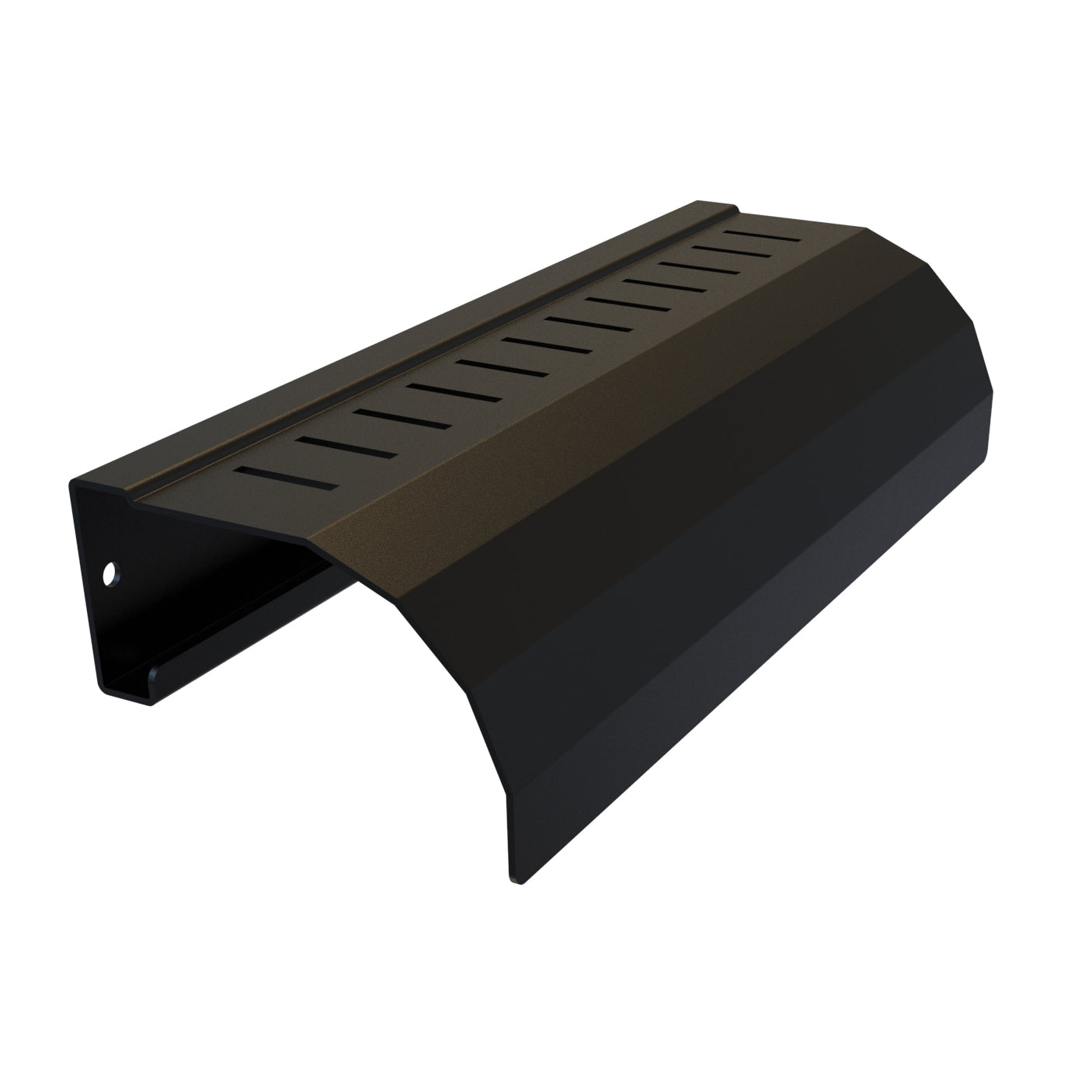

Formed steel cable radius waterfall provides gentle bend radius out of ladder.
- Constructed of 16 gauge steel.
- The CLE6CR fits within the following combinations:
- 1x 6in ladder width
- 2x 12in ladder width
- 3x 18in ladder width
- Tool-free design snaps on ladder rung.
- Textured RAL9005 black powder paint coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for federal GSA schedule purchases within the USA.
- RoHS Compliant.
- Manufactured in North America.
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch. Switch units to: mm
| Part No. | Description | Height | Width | Depth | Bend Radius |
|---|---|---|---|---|---|
| CLECR | Edge of stringer cable radius | 2.45 | 10.00 | 3.63 | 2.00 |
| CLE6CR | Inside rung cable radius | 2.25 | 5.55 | 4.63 | 2.00 |
Attributes
| Additional Downloads |
|---|
| Specification Sheet |
| BUL88383 - CLE6CR LADDER EDGE CABLE RAD. |
| Part Attributes | |
|---|---|
| Part Number | CLECR |
| Series | Ladder Cable Radius Waterfall (CLCR Series) |
| Short Description | LADDER EDGE CABLE RADIUS |
| Shipping Weight | 1.2 lbs (0.54 kg) |
| UNSPSC | 39121301 |
| UPC | 623980004518 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
