Description
Key Features:

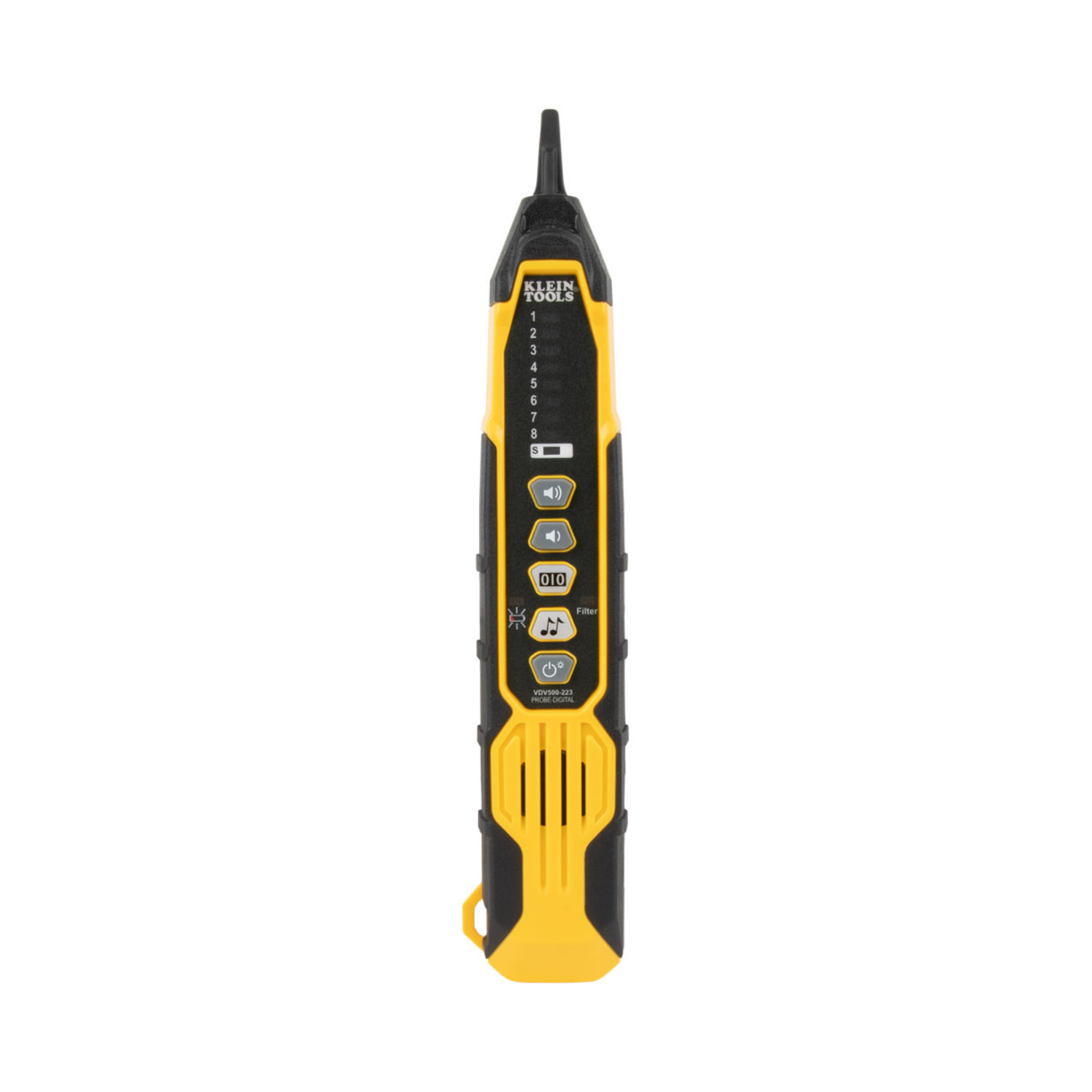

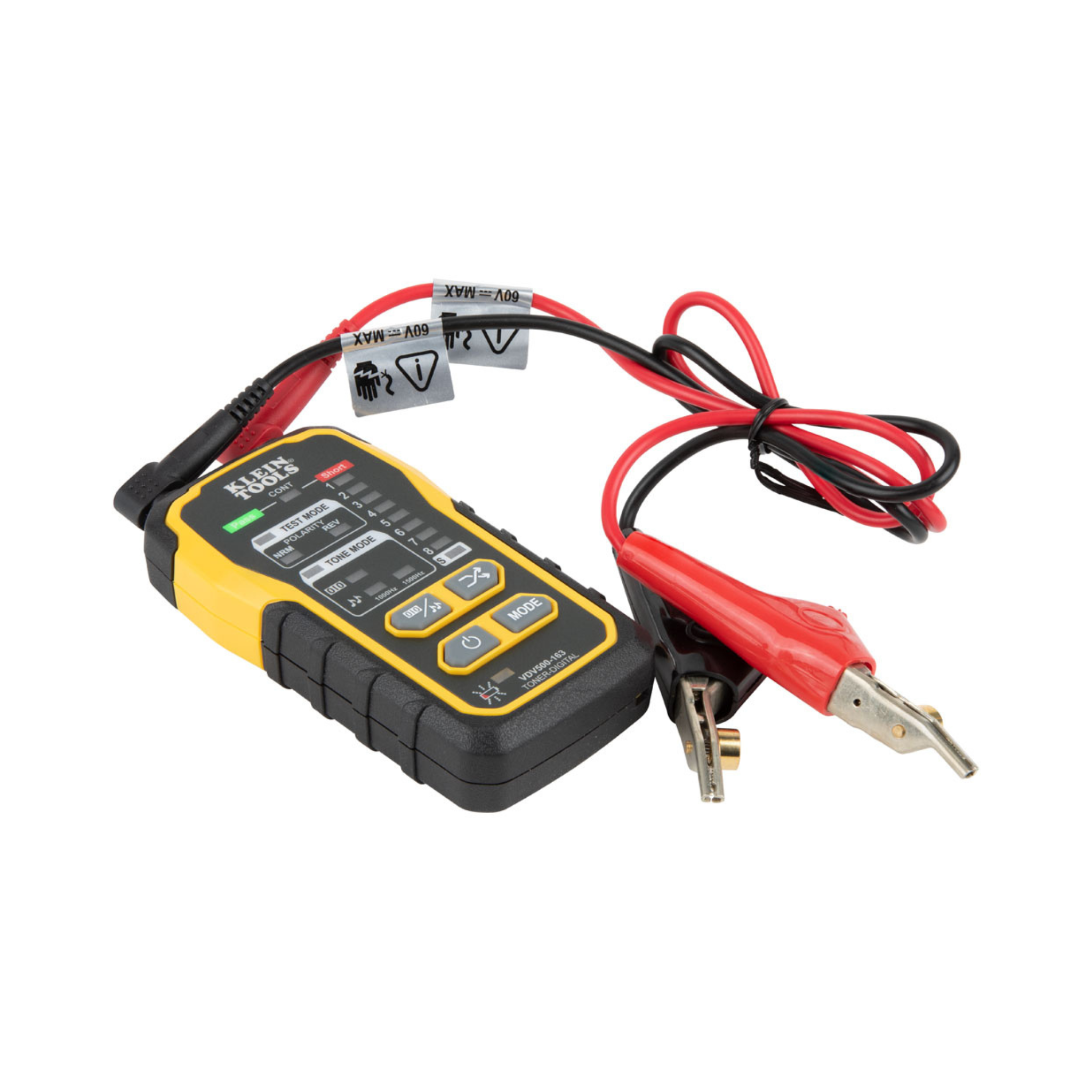

- Digital Tone Generator (Cat. No. VDV500-163) and Digital Wire Tracing Probe (Cat. No. VDV500-223) Set
- Trace and locate cables on an active network
- Tone on cables connected to a switch or router without disconnecting cables
- Rugged Angled Bed of Nails (ABN) to trace on unstripped wires
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection
- 60Hz filter for accurate tracing

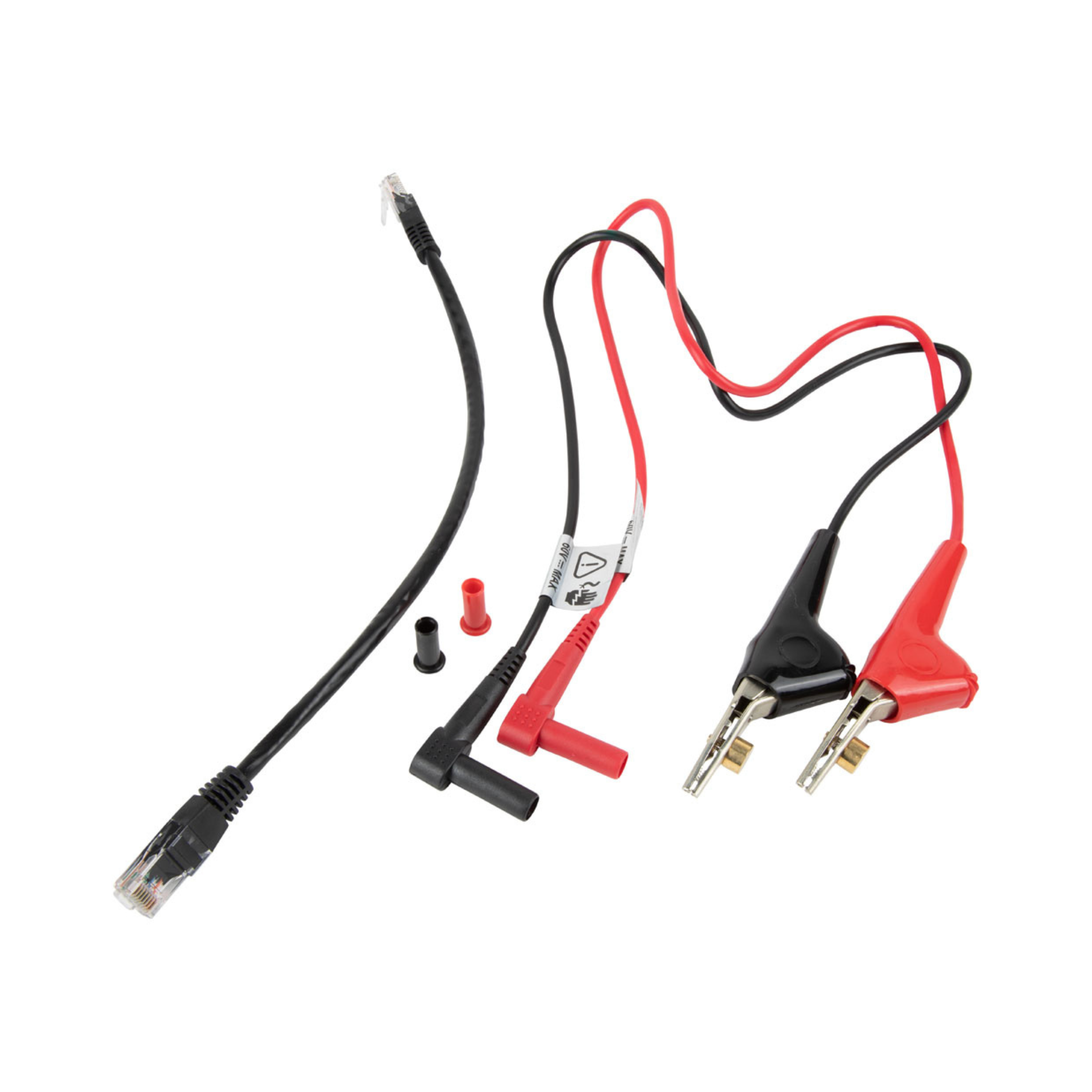

- Includes tone generator, tracing probe, various leads for testing, batteries, and instruction manual
The Klein Tools Digital Tone and Probe Set is a versatile tool that combines digital and analog signaling in one device. Perfect for tracing and locating network cables within bundles, switches, patch panels, or termination blocks, this set offers both convenience and accuracy.
Specifications:
- Type: Tone Generator, Tracing Probe
- Application: Wire Toning and Tracing
- Special Features: Angled Bed of Nails with (ABN) Clips, RJ45 Port, 3 Distinct Cadences, Worklight
- Overall Length: 6.8'' (17.3 cm)
- Overall Height: 13.3'' (33.8 cm)
- Overall Width: 3'' (7.6 cm)
- Material: ABS
- Batteries: 8 x AAA

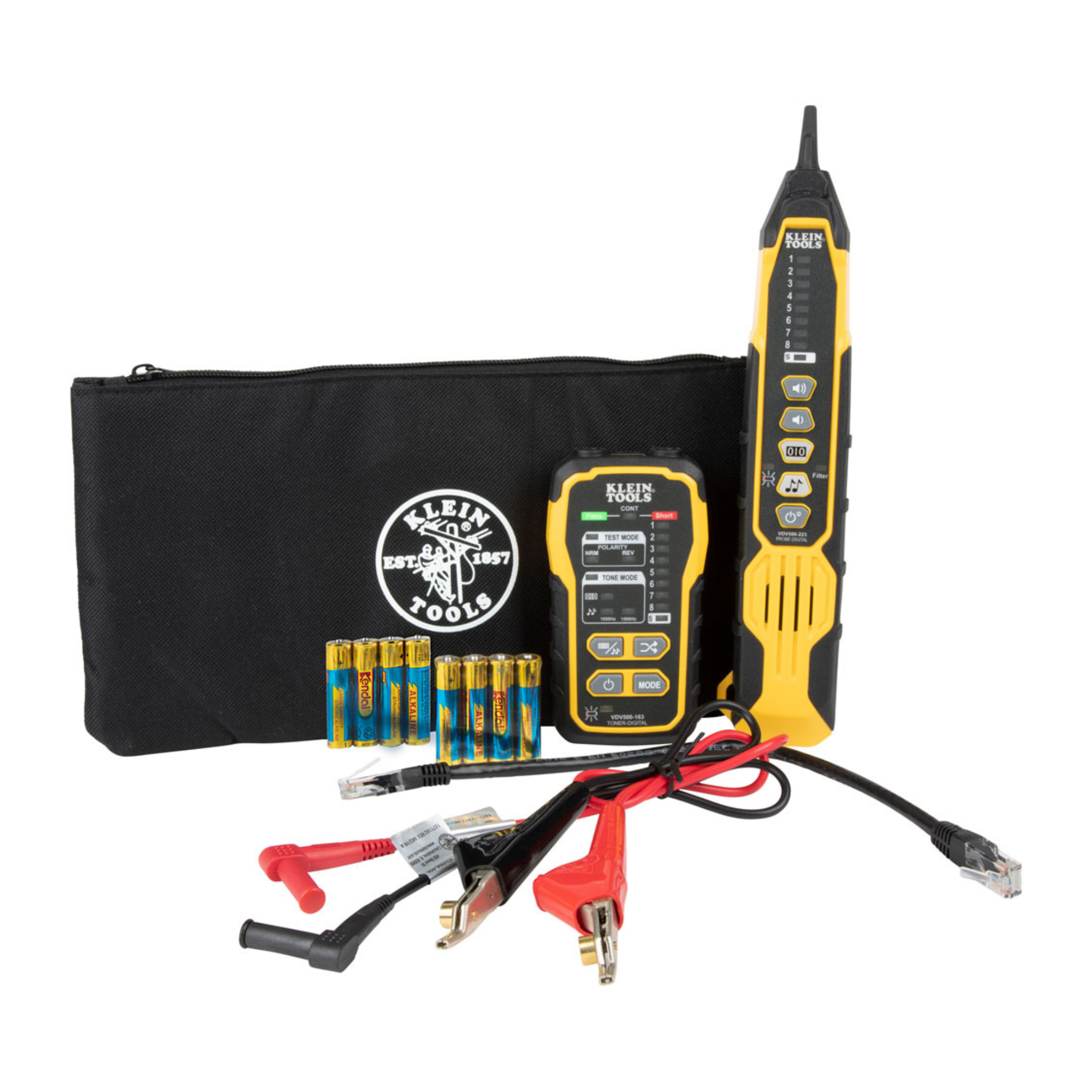

- Included: VDV500-163 Digital Tone Generator; VDV500-223 Digital Tracing Probe; Pouch; Test Leads; Instructions; and All Required Batteries
- Weight: 1.4 lb (0.6 kg)
- UPC: 092644583872
Frequently Asked Questions
Q: Can this device trace cables on an active network?
A: Yes, you can trace and locate cables on an active network without disconnecting them.
Q: What kind of batteries does this tool require?
A: It uses 8 AAA batteries, which are included.
