Description

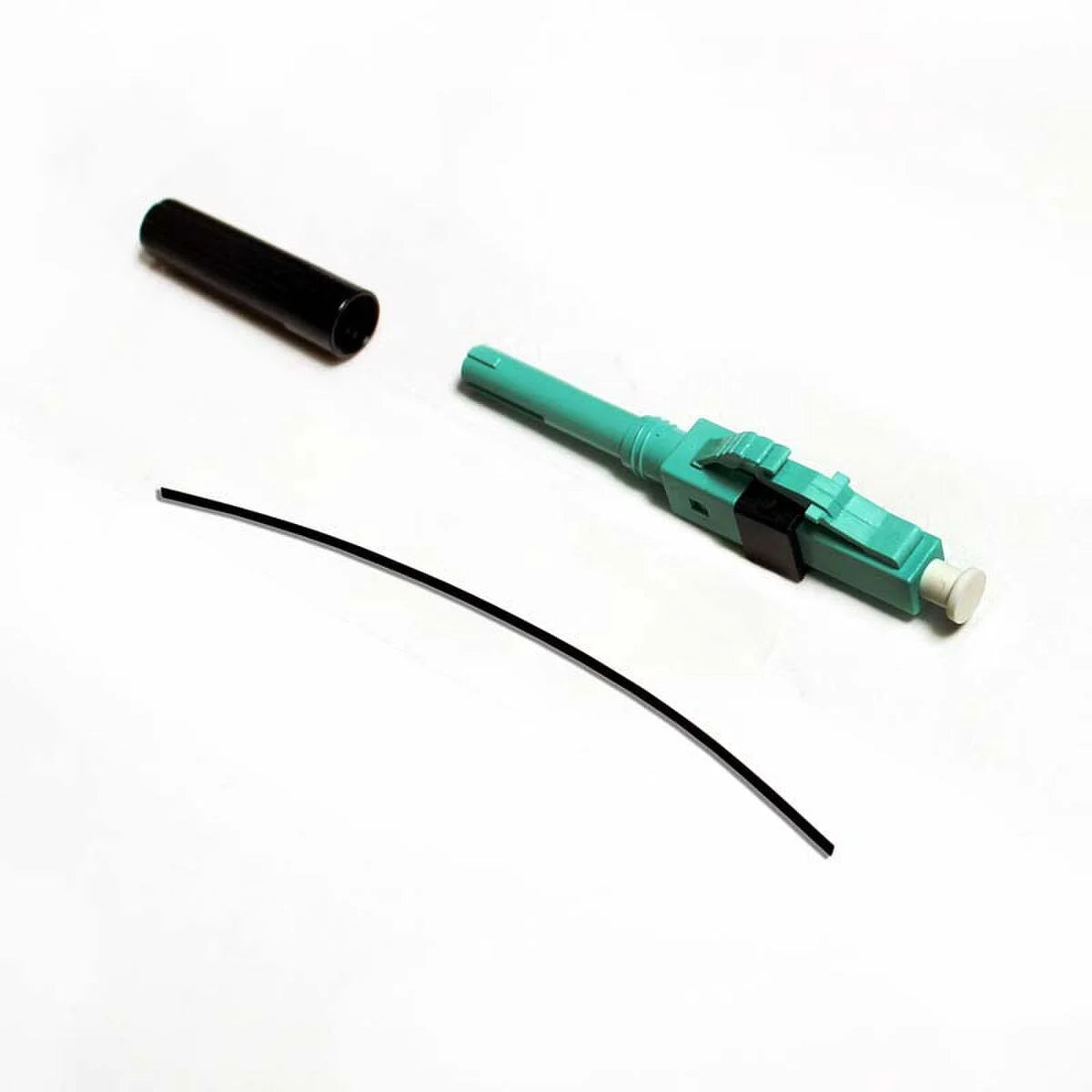

The Optix 3X 900um Mechanical Connector is a field-installable, high-performance solution designed for fast and consistent fiber terminations. Featuring a simple two-piece design, this LC connector allows for reliable field installation in less than two minutes without the need for specialized connector holders.
Key Features:
- Reusable Design: Patent-pending technology provides up to three opportunities to re-splice or reuse the connector, eliminating the "One & Done" waste of traditional mechanical connectors.
- Premium Fiber: Manufactured with Corning fiber for superior signal integrity and reliability.
- High Compatibility: Works seamlessly with all major fusion splicer brands using standard sheath clamps or fiber holders.
- Durable Build: Features flame-retardant housings and a robust silicon boot for excellent strain relief in tight enclosures.
- Standard Compliant: Fully compliant with TIA/EIA 604-3 standards.
Specifications:
- Connector Type: LC (Multimode)
- Fiber Grade: OM4 50/125µm
- Polish Type: PC
- Cable Compatibility: 900 micron and 250 micron coated fiber
- Color: Aqua (Housing & Boot)
- Insertion Loss: MM Average: 0.10 dB (Max: 0.3 dB)
- Operating Temperature: -40°C to +75°C
