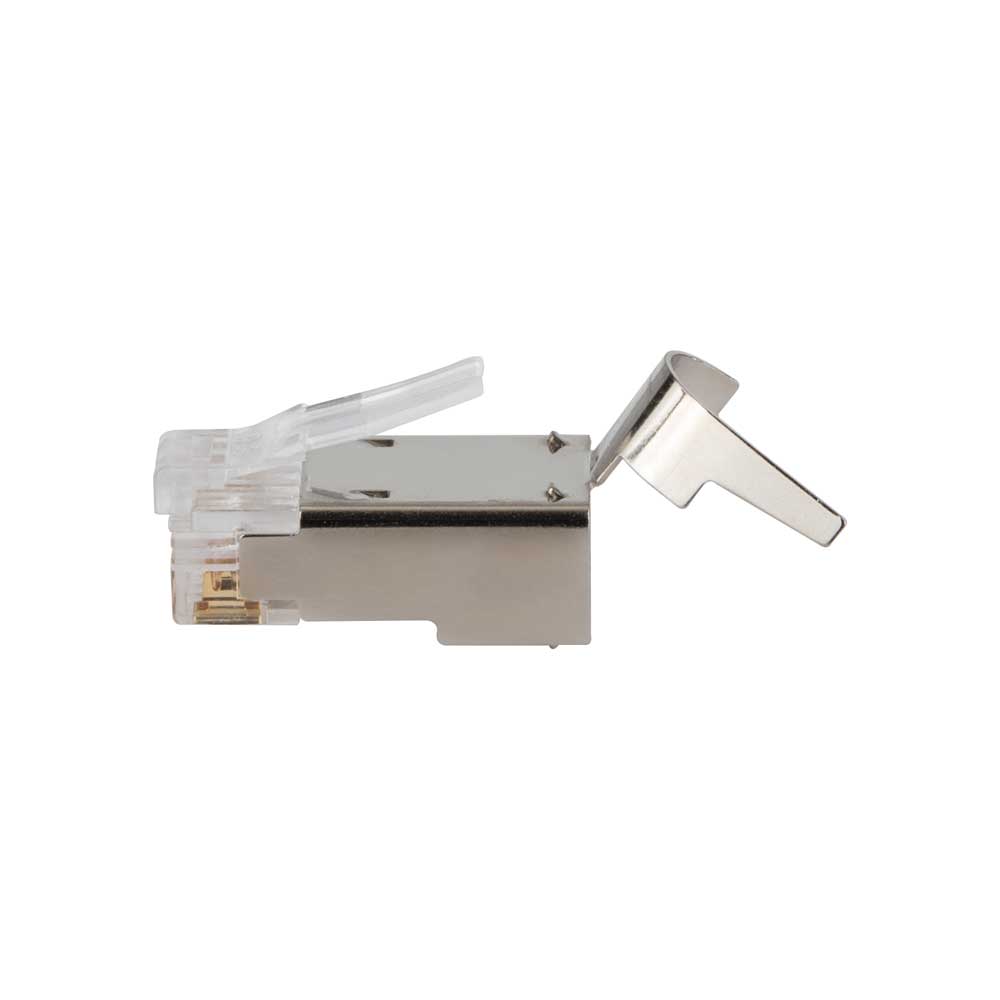

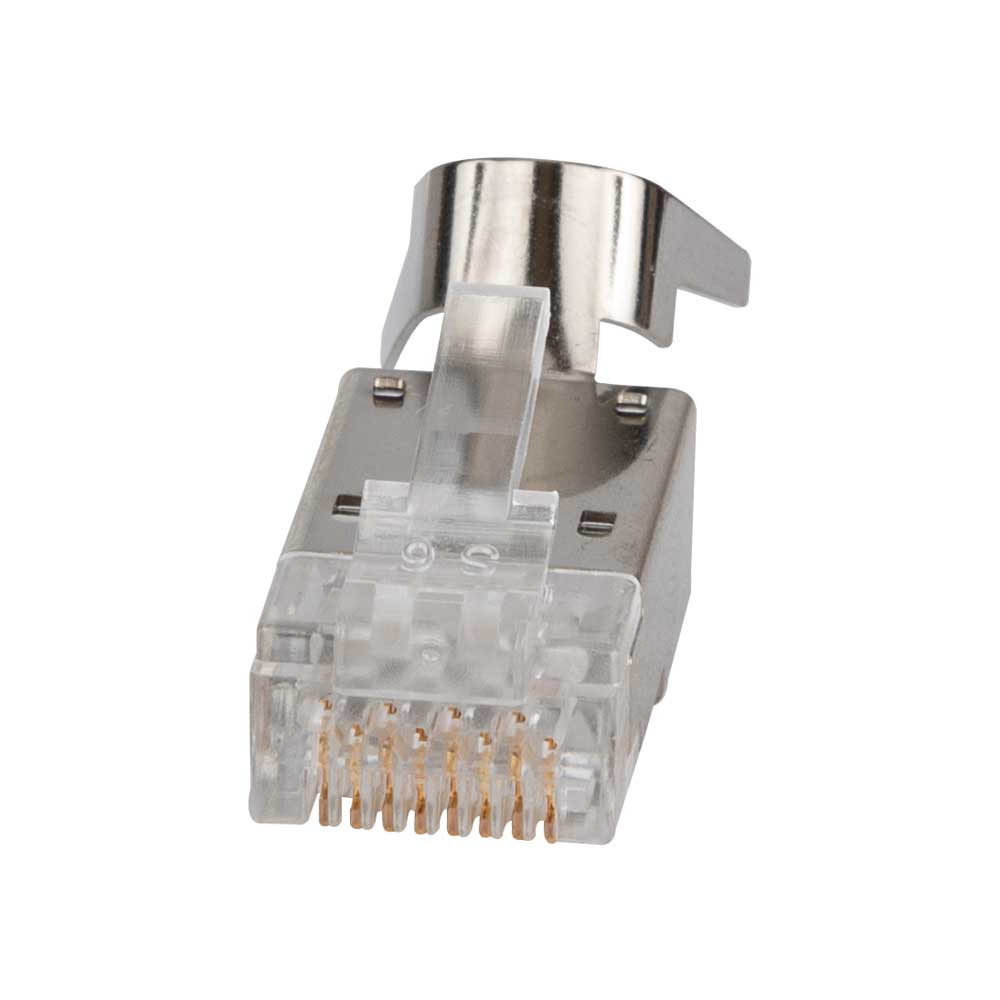

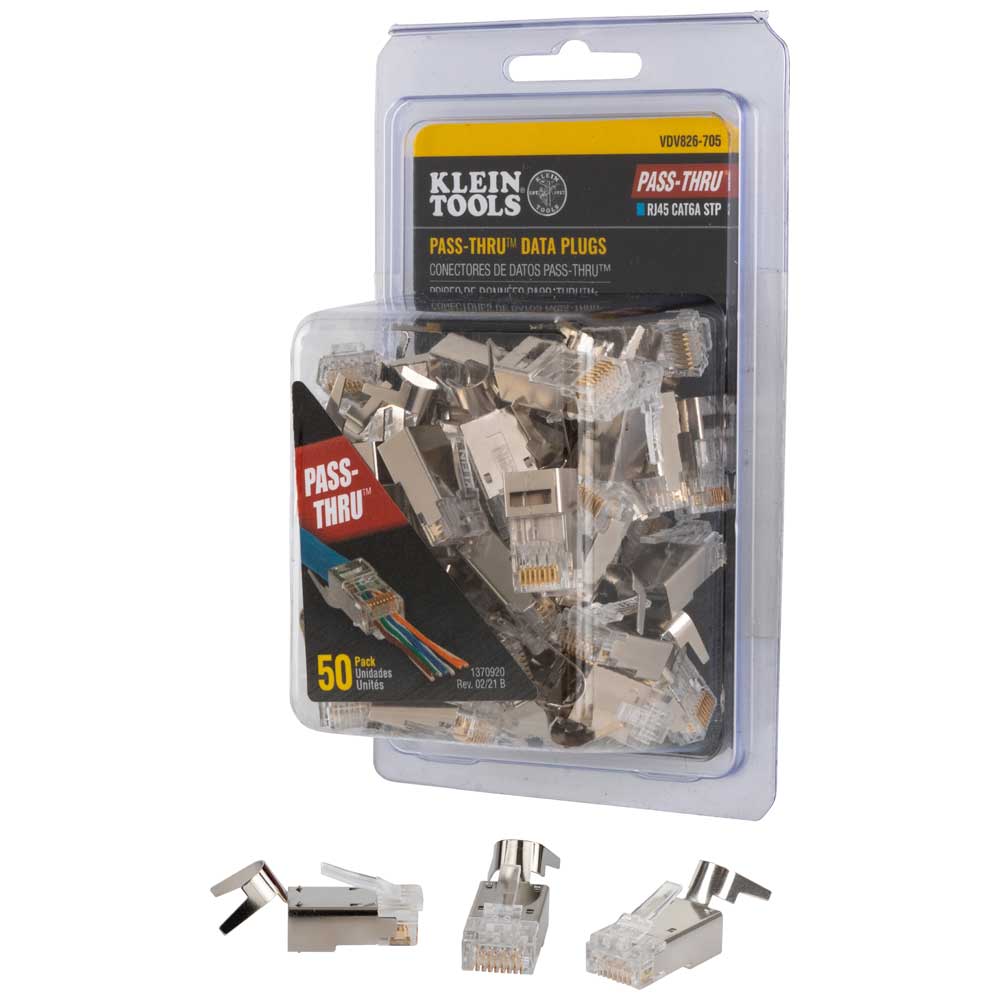

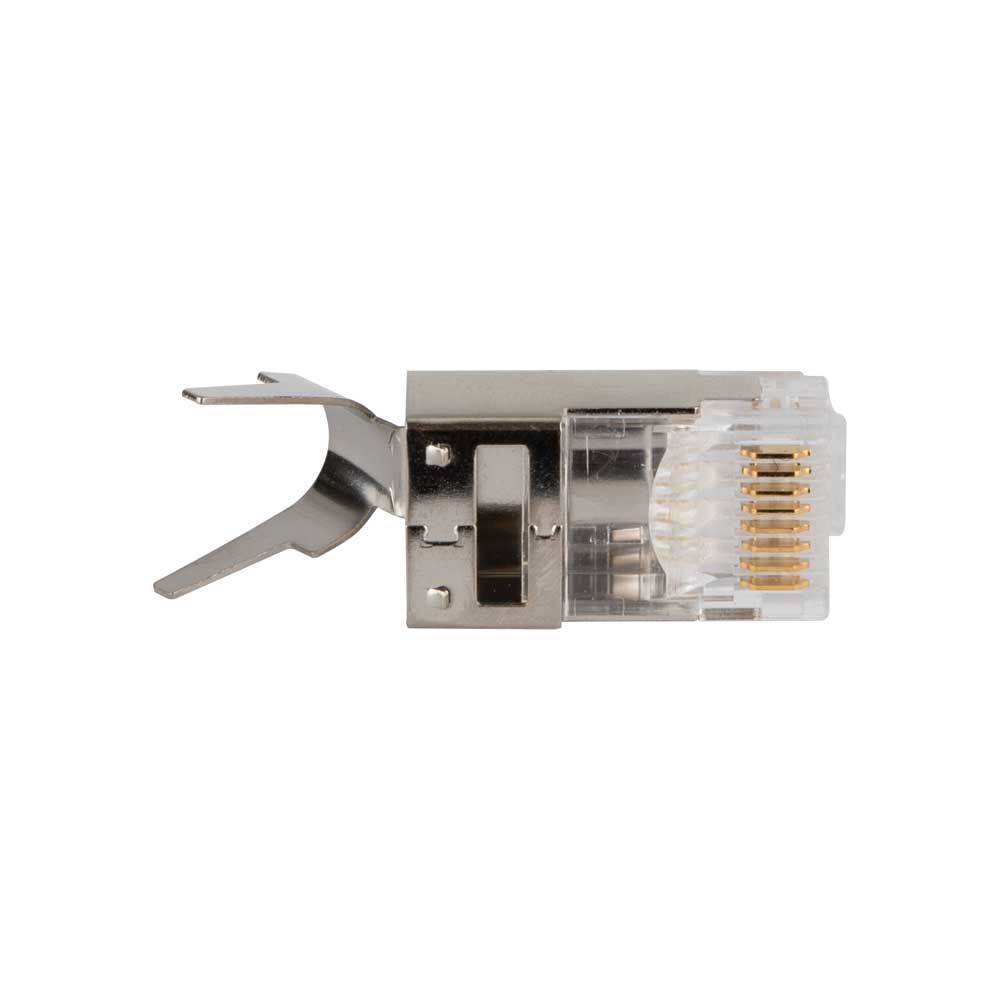

Klein Tools Pass-Thru™ Modular Data Plugs, RJ45-CAT6A, Shielded (STP), 50-Pack

Introducing the Klein Tools Pass-Thru™ Modular Data Plugs, a game-changer for your networking solutions! These RJ45 CAT6A Shielded (STP) plugs are designed to make your connectivity tasks quicker and easier. With a unique pass-thru feature, these connectors ensure that your cable can effortlessly pass through the connector, allowing for accurate wire arrangement and reducing installation errors. Whether you're a professional network technician or a DIY enthusiast, these plugs are ideal for enhancing your data applications.

Key Features:

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable
• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
• 8 position, 8 contact pass-through type data plugs for solid or stranded wire
• Category 6A performance per TIA/EIA-568-B.2
• 50-Pack
• 50 µ-inch gold plating on all contact surfaces
• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through the connector for consistent and secure termination. Saves time, trims flush to the end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Specifications

• Type: Modular
• Application: Voice and Data
• Special Features: Pass-Thru Technology; Meets All PoE+ Standards
• Overall Length: 0.8'' (2 cm)
• Overall Height: 0.6'' (1.5 cm)
• Overall Width: 0.4'' (1 cm)
• Material: PVC Plastic; Gold Plated Contacts
• Connector Type: RJ45
• Cable Type: CAT6A STP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Color: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 50
• Weight: 6.05 oz (171 g)
• UPC: 092644583919

Frequently Asked Questions (FAQs)

Q: How do Pass-Thru™ Modular Data Plugs differ from traditional plugs?

A: Pass-Thru™ design simplifies the termination process by allowing conductors to pass through the connector, reducing wiring errors and saving time.

Q: Are these plugs compatible with CAT6A cables?

A: Yes, these plugs are specifically designed for use with CAT6A cables to ensure optimized performance.
