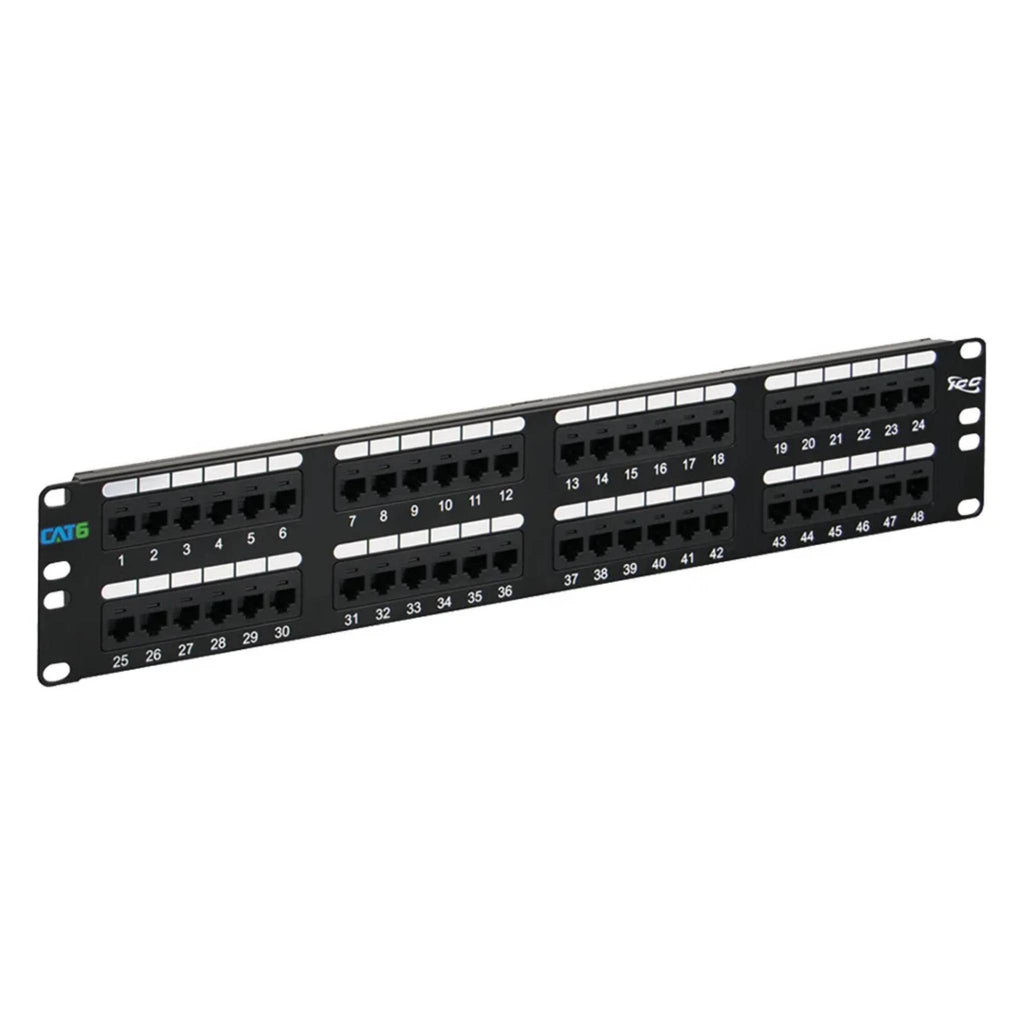

ICC Patch Panel CAT6 48-Port 2RMS

ICCSKU: ICC-ICMPP04860

Price:
Sale price$195.90

Description

ICC’s Category 6 (CAT6) 48-port, 2 rack mount spaces (RMS) patch panels surpass industry requirements for Category 6 performance. These horizontal patch panels are designed with a rear 110 IDCs for quick and easy punch-down termination and come integrated with a universal label allowing for either 568-A/B wiring. Package includes mounting screws.

Features

  • Rack-mounted CAT 6 component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth.
  • Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
  • Enhanced crosstalk cancellation reduces return loss (AXT).
  • Exceeds ANSI/TIA-568-B.2 Category 6 connecting hardware requirements.
  • Engineered to provide 110 IDC termination reducing installation time.
  • Includes both TIA-568A and TIA-568B color wiring diagrams.
  • Backwards compatible with all lower rated category components.
  • Designed to fit all standard 19″ racks and cabinets.
  • 2 rack mount spaces (RMS).
  • Used with CAT6 patch cords, 110 punch down tool, and 4-pair 110 punch down tool.
  • UL listed.

Specifications

Material:

48 Port Patch Panel: 16 GA CRS

Jack Housing: High impact, flame retardant plastic, UL 94V-0

Spring Wire: Phosphor Bronze

110 Connector: Phosphor Bronze Alloy with 100 microinch Alloy

Gold Rating: 50 micro inch gold over 100 micro inches of nickel

Surface Finish: Black Powder Coat

Mechanical:

Force: 100 grams min/contact

Temperature Range: -40 degrees C to 70 degrees C

Plug Retention Jack: 50N (11 lbs SQ)

IDC Wire Gauge: 22-24 AWG

Electrical:

Current Rating: 1.5 AMP DC

Contact Resistance: 2.5 milliohms max

Color:

Color XX: BK-Black

What is the Patch Panel CAT6 48-Port 2RMS?

Introducing the Patch Panel CAT6 48-Port 2RMS, a cutting-edge networking solution designed to streamline your connectivity needs. This high-performance patch panel offers unrivaled data transfer speeds and reliability, ensuring seamless communication within your network.

Highlights of the Patch Panel CAT6 48-Port 2RMS

  • Enhanced Performance: Experience lightning-fast data transfers with CAT6 technology.
  • Organization and Efficiency: Easily manage and identify network connections with 48 ports.
  • Reliable Connectivity: Ensure stable connections for all your networking devices.

Frequently Asked Questions (FAQs)

  • Q: How many ports does the patch panel have?
    A: The patch panel features 48 ports for comprehensive connectivity options.
  • Q: Is CAT6 better than CAT5e for networking?
    A: Yes, CAT6 offers faster speeds and better performance compared to CAT5e.

Order Your Patch Panel CAT6 48-Port 2RMS Today

Upgrade your network with the Patch Panel CAT6 48-Port 2RMS! Take advantage of our fast shipping and order now to enhance your connectivity experience.

Who Can Use It

The Patch Panel CAT6 48-Port 2RMS is ideal for IT professionals, businesses, and home network enthusiasts seeking reliable and efficient networking solutions.

Why Choose the Patch Panel CAT6 48-Port 2RMS

Elevate your networking capabilities with the Patch Panel CAT6 48-Port 2RMS. Experience high-speed connectivity and seamless data transfer like never before. Don't miss out on this essential networking tool!
