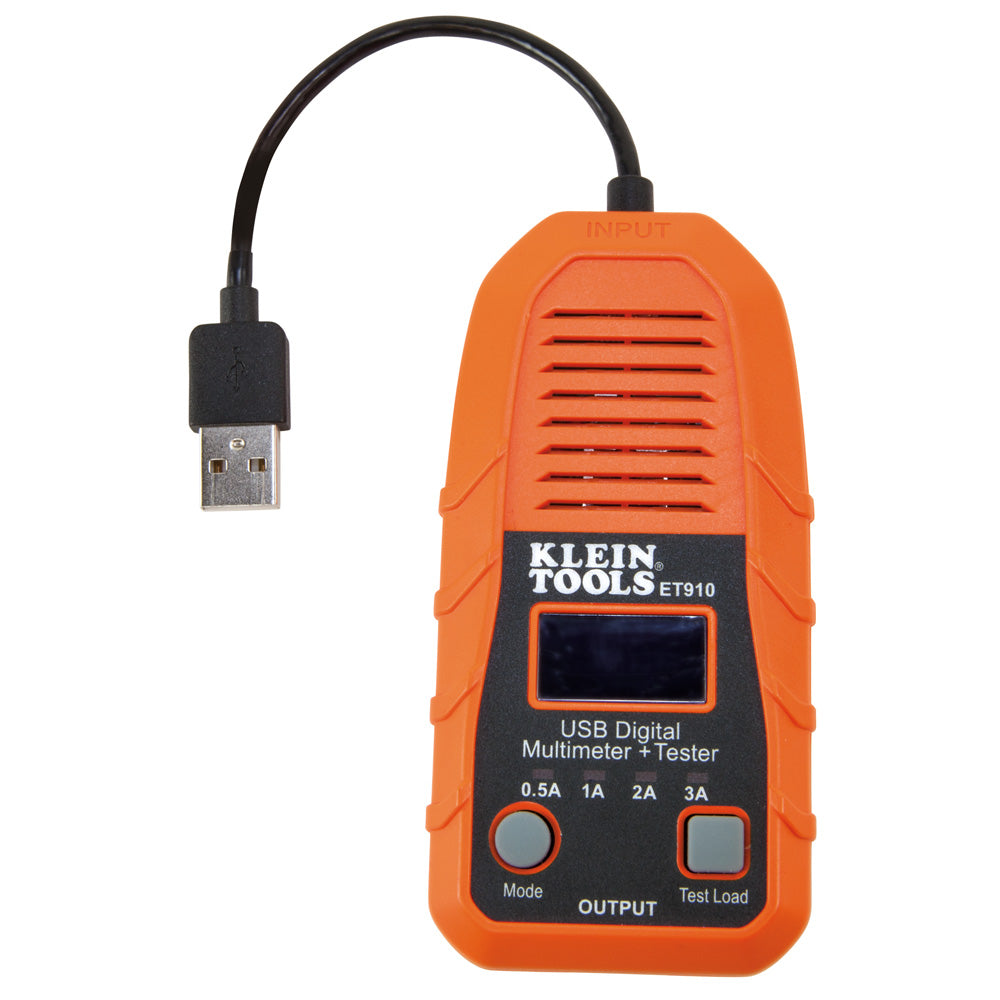

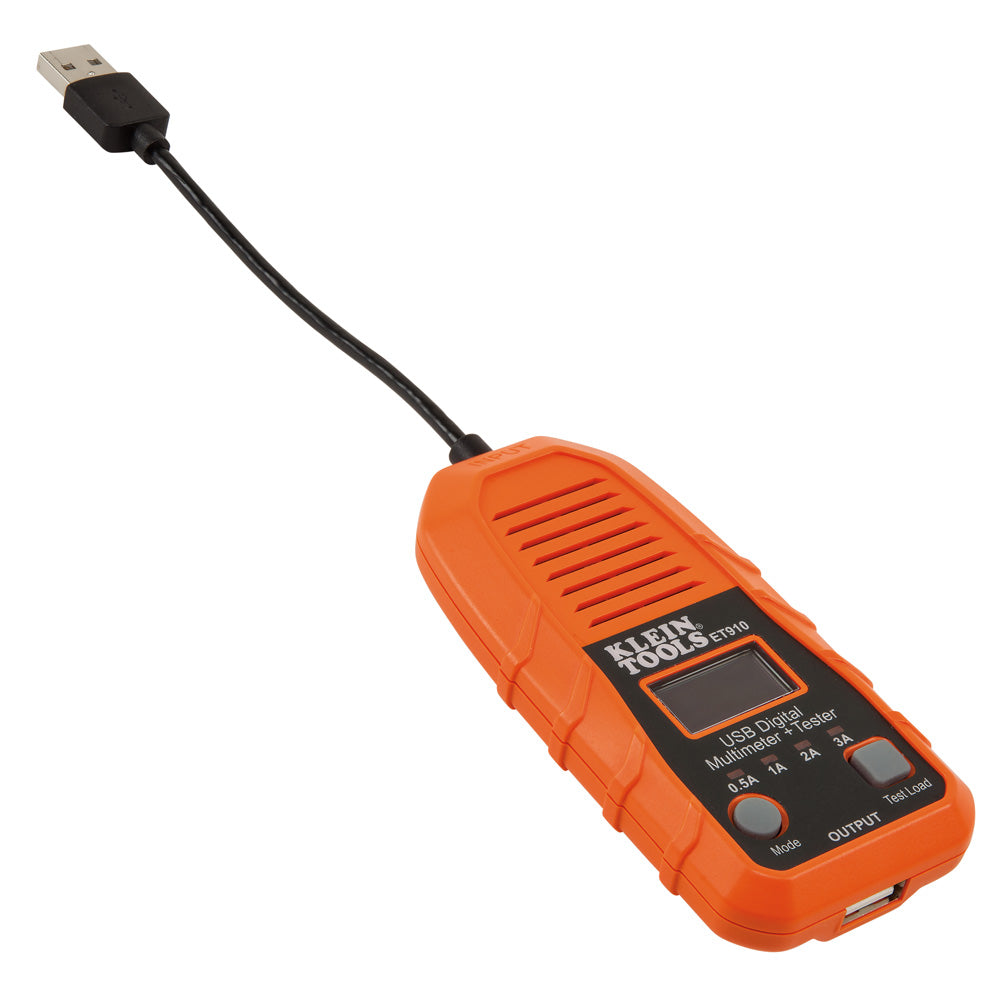

Klein Tools USB Digital Meter and Tester, USB-A (Type A)

Klein ToolsSKU: KLE-ET910

Price:
Sale price$58.14

Description

  • 3 to 20V DC; Current: 0.05 to 3A (monitoring mode)
  • Built-in test loads of 0.5A, 1A, 2A, and 3A; no external test load required
  • Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
  • Test most common standard USB-A ports, including Qualcomm Quick Charge ports
  • Store and recall up to 10 readings
  • Voltage and current overload detection
  • Hi-resolution LCD for clear visibility in environments with low ambient lighting

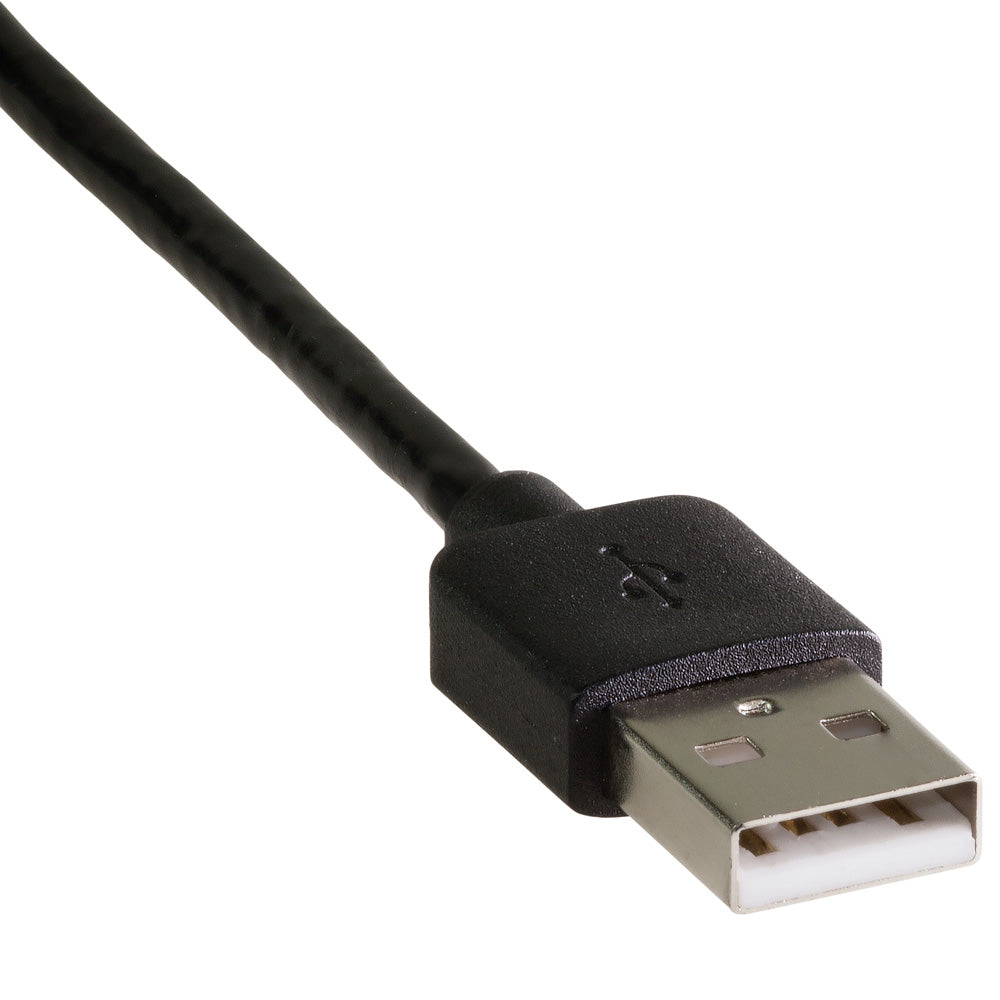

  • Durable cable to allow easy access to hard-to-reach ports
  • Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
  • Built to withstand a 6.6-Foot (2 m) drop
  • No batteries needed; powered by the USB port being tested

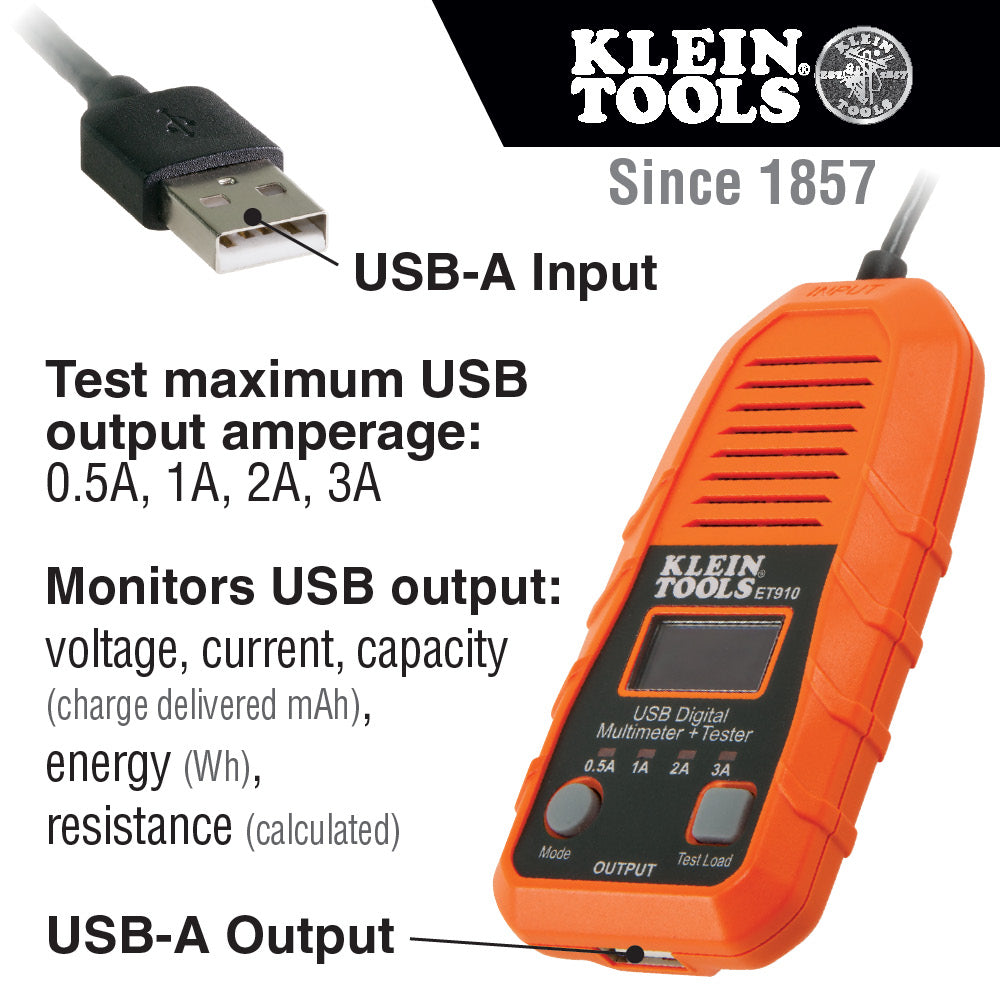

The Klein Tools ET910 is a USB digital meter and tester combination for most common USB-A ports, including Qualcomm Quick Charge® ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can also test the maximum current delivery capability of the USB port with built-in fixed loads so user need not connect to an external load. It will function with any USB-A port that has the ability to deliver power. It requires NO batteries as it draws power from the power source to function.


Specifications
Type:
USB-A (Type A)
Application:
USB Port Voltage, Current, Capacity, Energy, Resistance (Calculated), Max Current
Special Features:
Current Test Loads: 0.5A, 1A, 2A, 3A
Voltage:
3 to 20V DC
Current:
0.05 to 3A
Capacity Used:
99,999mAh Maximum
Energy Delivered:
999Wh Maximum
Resistance:
400 ohms Maximum
Elapsed Time:
Up to 999 Hours, 59 Min, 59 Secs
USB Compatibility:
USB-A; Qualcomm Quick Charge® Compatible
Drop Protection:
2 m (6.6')
Ingress Protection:
IP20
Display:
LCD
Material:
Polymer
Overall Length:
4.31'' (11 cm)
Overall Height:
0.98'' (2.5 cm)
Overall Width:
2.15'' (5.5 cm)
Weight:
2.80 oz (79.4 g)
UPC:
092644691393
Additional Information
https://www.kleintools.com/content/warranty-product-group

What is the USB Digital Meter and Tester, USB-A (Type A) by Klein Tools?

The Klein Tools ET910 is a versatile USB digital meter and tester designed for most common USB-A ports, including Qualcomm Quick Charge® ports. This device accurately measures and displays voltage, current, capacity, energy, and resistance of the USB port simultaneously. It eliminates the need for external loads as it comes with built-in fixed loads, making it a convenient tool for testing power delivery capabilities.

Key Features of the USB Digital Meter and Tester:

  • 3 to 20V DC voltage range
  • Current: 0.05 to 3A
  • Built-in test loads of 0.5A, 1A, 2A, and 3A
  • Continuously monitor voltage, current, capacity, energy, and resistance
  • Compatible with most USB-A ports, including Qualcomm Quick Charge
  • Stores and recalls up to 10 readings
  • Voltage and current overload detection
  • Hi-resolution LCD for clear visibility
  • Rugged and pocket-sized design
  • Drop-resistant construction
  • No batteries required

Frequently Asked Questions (FAQs) about the USB Digital Meter and Tester:

Q: What is the power source for the USB meter and tester?
A: The device draws power directly from the USB port being tested, eliminating the need for batteries.

Order Your USB Digital Meter and Tester Today

Take the next step in monitoring your USB ports with the Klein Tools ET910. Ensure fast shipping and accurate testing by adding this versatile tool to your cart now.

Who Can Use the USB Digital Meter and Tester?

This USB meter is suitable for a wide range of users, from tech enthusiasts to professionals in various industries. It provides valuable information for anyone interested in monitoring power delivery through USB ports.

Why Choose the USB Digital Meter and Tester by Klein Tools?

With limited-time offers, durable design, and accurate testing capabilities, the Klein Tools ET910 is the go-to choice for those seeking a reliable USB digital meter and tester.
