Description

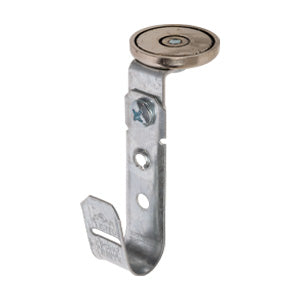

3/4" Magnetic J Hook with 100lb WinnieMAG Magnet - WJH12ACMAG
Pre-assembled with 100lb WinnieMAG Magnet for organizing and routing cables along ceilings or overhead structures. Amazing strength, cost-effective, and versatile cable management solution for network cable pathway applications.
Features:
• Pre-assembled with 100lb WinnieMAG Magnet for organizing and routing cables along ceilings or overhead structures
• Cost-effective alternative to cable tray or ladder rack systems
• Constructed from heavy-duty pre-galvanized steel for durability
• Smooth, rounded edges maintain proper cable bending radius
• Engineered for stress-free installation—saves time and labor
• Creates distribution pathway for category cable, PoE, low-voltage, coax, signal/control cable, and innerduct/tubing
• Provides excellent support for CAT3, CAT5e, CAT6, CAT6E, CAT6A and fiber optic cables
• 360 degrees of rotation provides access to j hook in any direction
• Super-strong neodymium magnet grips securely to any ferromagnetic surface
• Protective steel cup directs magnetic field to fastening surface, increasing magnetic pull force
• Maintains adhesion even when exposed to oil, grease, dirt, and extreme temperatures
• Magnet will not interfere with Ethernet or Wi-Fi signal
• Bendable tab flexes and locks wire firmly in place
• Compliant with NEC and TIA/EIA structured cabling standards
• UL and CUL listed
Application:
Secures, routes, and organizes telecom, network/data cabling, low-voltage wire, PoE cable, fire alarm, access control, security and surveillance cable, audio/video cable, signal and control tray cable, coaxial cable, flexible hose, tubing, and innerduct.
Installation:
Attaches to steel beams, metal joists, and other ferromagnetic surfaces.
Cable Capacity:
• 16 Cat5e cables
• 10 Cat6 cables
• 6 Cat6A cables
• 5 Cat7 cables
• 16 fiber optic cables
Specifications:
• Magnet Size: 53 x 10mm
• Magnet Threaded Hole: 1/4 x 20
• Magnet Grade: N35
• Magnet Material: Nickel (NiCuNi)
• Magnet Temperature Tolerance: -40°F – 176°F (-40°C – 80°C)
• Magnet Cup: Nickel-plated steel
• Overall Length: 2.666 in
• Overall Width: 1.5 in
• Overall Height: 3.756 in
• Overall Weight: 0.2175 lbs
• J Hook Material: Steel
• J Hook Finish: Pre-galvanized
